G70 Generator, Standard T4F

G70 Engine cpl. Diagram

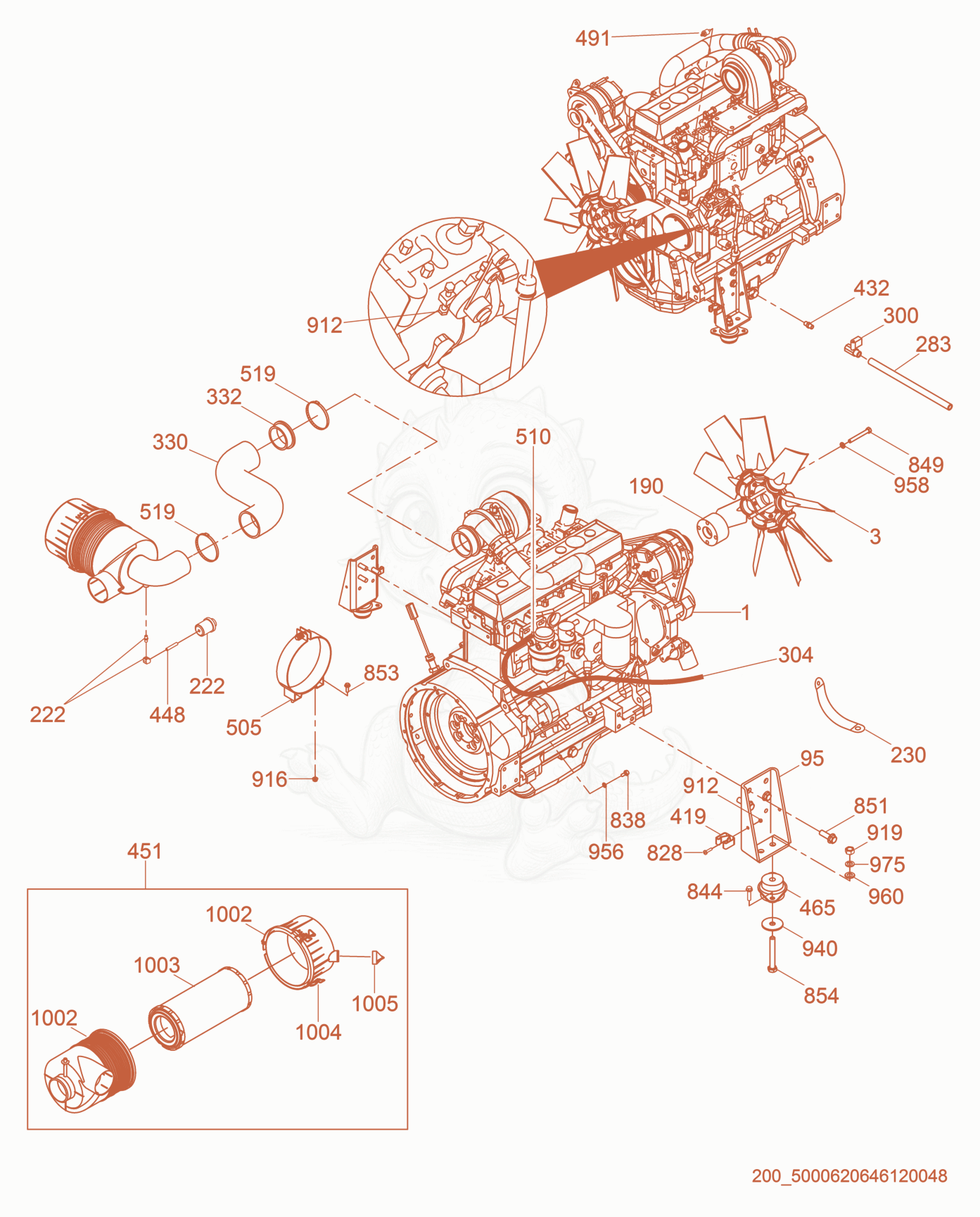

Exploded parts diagram of the Engine cpl. of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200016971Not stocked
    Engine-Deere×1
  • 35000153228
    $326.27
    FAN-23 ,9 BLADES - 5000153228×1
  • 955000159845
    $230.08
    MOUNT-ENGINE WELDMENT P-5000176420 - 5000159845×1
  • 1905000153306
    $136.52
    SPACER-FAN - 5000153306×1
  • 2225000158691
    $121.95
    GAUGE-FILTER MINDER - 5000158691×1
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×1
  • 2835000176217
    $39.37
    HOSE-ASSY,DRAIN - 5000176217×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 3045000163423
    $94.26
    HOSE-VENT - 5000163423×1
  • 3305000162779
    $226.94
    HOSE-AIR INTAKE 3.5 X 610MM - 5000162779×1
  • 3325000153466
    $11.91
    INSERT-AIR FILTR 3.5 OD X 3 ID - 5000153466×1
  • 4195000153474
    $517.76
    DOOR-WELDMENT,LR/RF - 5000153474×2
  • 4325000154304
    $16.74
    FITTING M18 X 1/2 NPT - 5000154304×1
  • 4485000160693
    $10.68
    FITTING-NIPPLE,1/8 X 2 - 5000160693×1
  • 4515000160913
    $220.23
    FILTER-AIR CLEANER - 5000160913×1
  • 4655000153064
    $61.48
    SHOCKMOUNT-RUBBER,570LBS - 5000153064×2
  • 4915000176121Not stocked
    Fuel level sensor×1
  • 5055000153074
    $24.96
    CLAMP-AIR FILTER,8 - 5000153074×1
  • 5105000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×1
  • 5195000154345
    $4.00
    CLAMP-WORM DRIVE 57mm-108mm - 5000154345×2
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×2
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
  • 8445000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×4
  • 8495000154523
    $0.69
    SCREW M10X80 HX HD 10.9 PLAIN - 5000154523×4
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×2
  • 8545000011309
    $1.16
    SCREW M12 X 90 HX.HD. - 5000011309×2
  • 9125000010884
    $0.26
    NUT M12 8,HEX - 5000010884×3
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
  • 9405000153066
    $5.36
    WASHER-SNUBBER - 5000153066×2
  • 9565000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×1
  • 9585000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×1
  • 9605000010620
    $0.26
    WASHER B13 FLAT - 5000010620×2
  • 9755000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×2
  • 10025000153071
    $122.78
    FILTER-AIR CLEANER - 5000153071×1
  • 10035000115348
    $53.08
    ELEMENT-FILTER,AIR - 5000115348×1
  • 10045000155417
    $9.82
    X-5000171456 CLIP-AIR FILTER - 5000155417×3
  • 10055000155418
    $6.09
    CAP-DUST EJECTOR - 5000155418×1
