G85-GENERATOR,SKID BASE

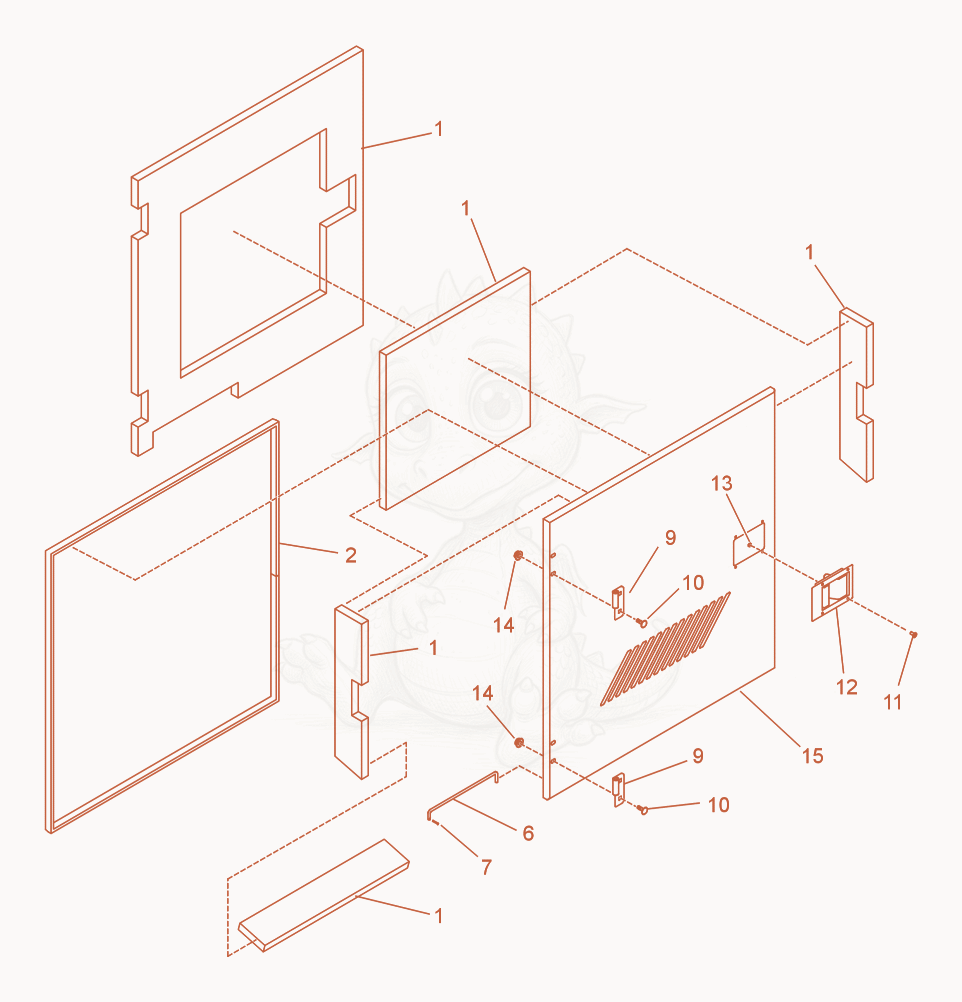

G85 Front Left Door Diagram

Exploded parts diagram of the Front Left Door of a Wacker Neuson G85, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000155233
    $638.85
    SET-INSULATOR,MED - 5000155233×1
  • 25000153482
    $87.27
    X-5200012963 SEAL-DOORS - 5000153482×1
  • 65000153022
    $28.99
    ROD-DOOR PROP - 5000153022×1
  • 75000155215
    $0.28
    PIN-ROLL 1/8 X 3/4 ZP - 5000155215×1
  • 95000153027
    $35.99
    HINGE-DOOR,LEFT SIDE - 5000153027×2
  • 105000011153
    $0.22
    BOLT-CARRIAGE M8X20 - 5000011153×4
  • 115000154511
    $1.61
    NLA RIVET-SS0644SSBS 1/16 THICK - 5000154511×4
  • 125000153503
    $261.80
    HANDLE-DOOR,BLACK PADDLE - 5000153503×1
  • 135000155260
    $0.03
    WASHER M5-A2 304 FLAT SS - 5000155260×4
  • 145000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 155000153475
    $1,036.98
    DOOR-WELDMENT,LEFT FRONT - 5000153475×1
