G85-GENERATOR,SKID BASE

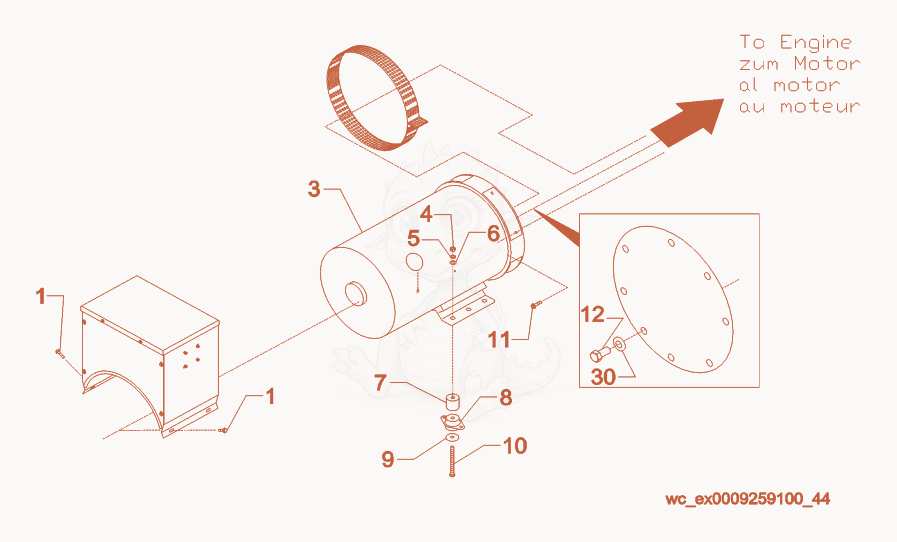

G85 Engine/Generator cpl. Diagram

Exploded parts diagram of the Engine/Generator cpl. of a Wacker Neuson G85, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000080264
    $11.80
    SCREW 1/4-20 X 5/8 W/FW,HX.HD. - 5000080264×4
  • 35000115814
    $655.17
    DIODE-RECTIFIER ASSY - 5000115814×1
  • 35000115815
    $1,470.11
    EXCITER-ROTOR, CORE & COILS - 5000115815×1
  • 35000115816
    $2,864.75
    EXCITER-STATOR, CORE & COILS - 5000115816×1
  • 35000154788
    $17,972.42
    GENERATOR-G85 - 5000154788×1
  • 45000010884
    $0.26
    NUT M12 8,HEX - 5000010884×2
  • 55000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×2
  • 65000010620
    $0.26
    WASHER B13 FLAT - 5000010620×2
  • 75000153007
    $27.38
    SPACER 2.00 OD X 1.94 L - 5000153007×2
  • 85000153064
    $61.48
    SHOCKMOUNT-RUBBER,570LBS - 5000153064×2
  • 95000153066
    $5.36
    WASHER-SNUBBER - 5000153066×2
  • 105000154524
    $3.03
    SCREW M12X140-8.8 HXHD BN57 ZP - 5000154524×2
  • 115000154522
    $0.95
    SCREW M10X35 HX HD 10.9 PLAIN - 5000154522×12
  • 125000155253
    $1.65
    SCREW 3/8-16X.75 HX HD GR8 PLN - 5000155253×8
  • 305000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×8
