G85-GENERATOR,SKID BASE

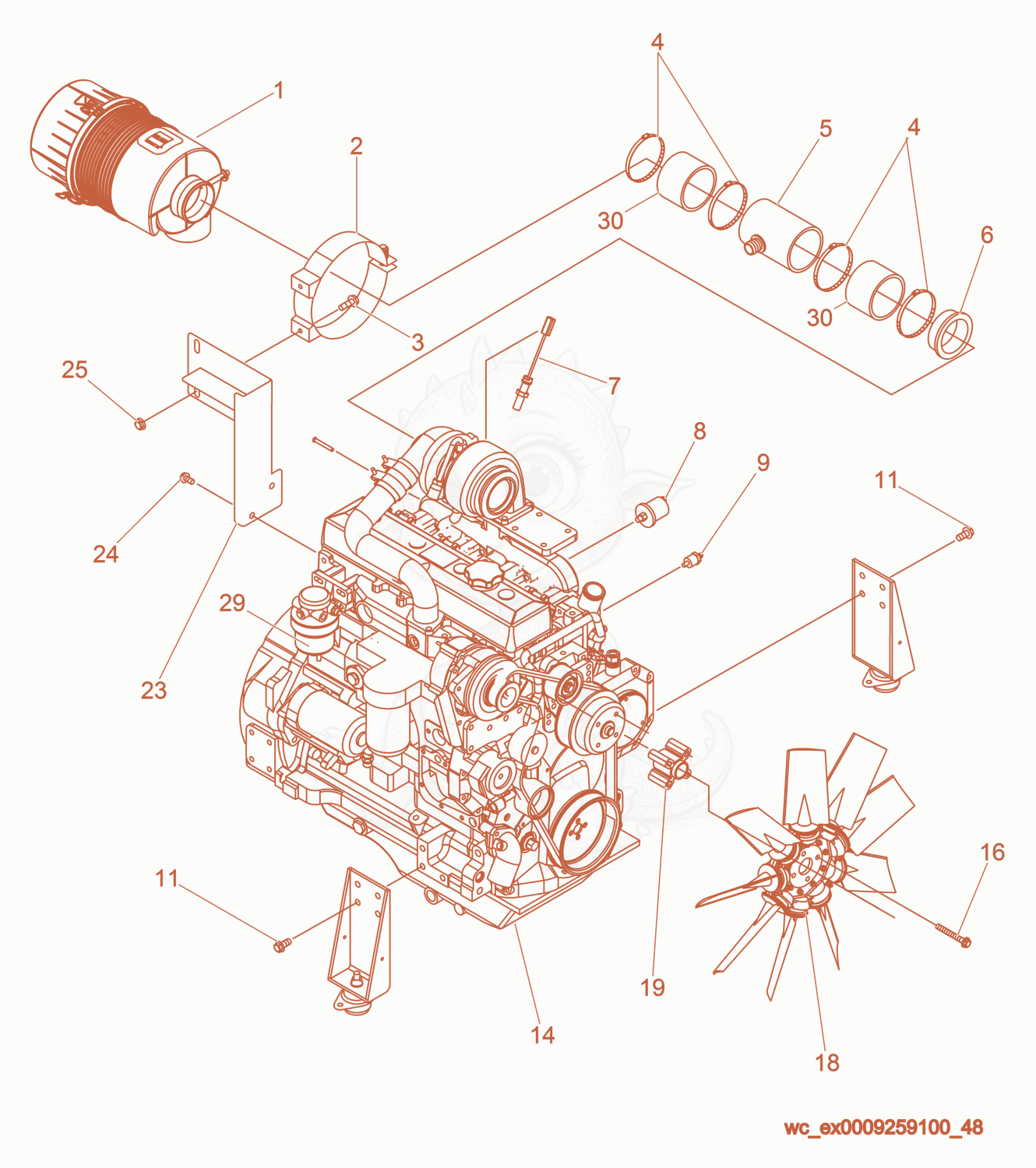

G85 Engine cpl. Diagram

Exploded parts diagram of the Engine cpl. of a Wacker Neuson G85, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000153071
    $122.78
    FILTER-AIR CLEANER - 5000153071×1
  • 25000153074
    $24.96
    CLAMP-AIR FILTER,8 - 5000153074×1
  • 35000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
  • 45000154345
    $4.00
    CLAMP-WORM DRIVE 57mm-108mm - 5000154345×4
  • 55000153511
    $85.92
    FITTING-TAP SLEEVE,3.5 P- 5000112007 - 5000153511×4
  • 65000153466
    $11.91
    INSERT-AIR FILTR 3.5 OD X 3 ID - 5000153466×1
  • 75000153467
    $541.57
    SENSOR-MAG PICK UP - 5000153467×1
  • 85000153220Not stocked
    Sensor-oil×1
  • 95200001043
    $48.00
    KIT-SENSOR,TEMP,MED - 5200001043×1
  • 115000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
  • 165000154523
    $0.69
    SCREW M10X80 HX HD 10.9 PLAIN - 5000154523×4
  • 185000153228
    $326.27
    FAN-23 ,9 BLADES - 5000153228×1
  • 195000153306
    $136.52
    SPACER-FAN - 5000153306×1
  • 205000155148Not stocked
    Deere engine×1
  • 235000153162
    $92.29
    BRACKET-AIR FILTER - 5000153162×1
  • 245000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×2
  • 255000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 305000155296
    $24.79
    HOSE-AIR FILTER 3.5 - 5000155296×2
