GS12-GENERATOR,SCHUKO

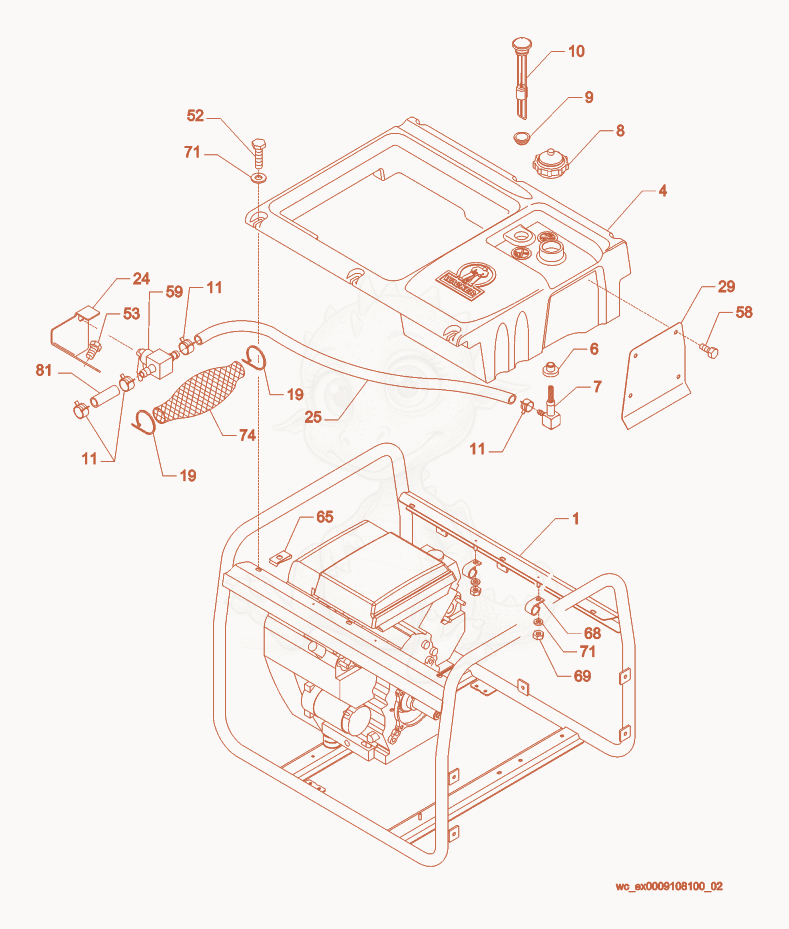

GS12AI Fuel Tank cpl. Diagram

Exploded parts diagram of the Fuel Tank cpl. of a Wacker Neuson GS12AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000152296Not stocked
    Frame×1
  • 45000110253
    $288.87
    Tank Fuel 5000110253×1
  • 65000053577
    $0.69
    BUSHING-TANK VALVE MOUNTING - 5000053577×1
  • 75000088179
    $8.97
    PENDX 5000162771-FITTING-ELBOW W/SCREEN - 5000088179×1
  • 85000119500
    $8.15
    CAP-FUEL - 5000119500×1
  • 95000088166
    $5.33
    BUSHING-FUEL GAUGE - 5000088166×1
  • 105000088165
    $10.59
    Gauge-fuel - 5000088165×1
  • 115000114073
    $0.23
    CLAMP-HOSE - 5000114073×4
  • 195000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×2
  • 245000158721
    $58.37
    BRACKET-FUEL VALVE - 5000158721×1
  • 255000152977
    $23.56
    HOSE-FUEL RETURN - 5000152977×1
  • 295000157893
    $5.93
    PANEL-TANK DRIP EDGE - 5000157893×1
  • 525000088806
    $0.83
    SCREW-LOCK M6X25,HEX - 5000088806×6
  • 535000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×1
  • 585000085172
    $0.52
    SCREW M8 X 12,SOC BUTN - 5000085172×4
  • 595000158732
    $26.58
    VALVE-IN LINE FUEL - 5000158732×1
  • 685000111274
    $0.58
    CLAMP-HOSE - 5000111274×2
  • 695000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 715000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×8
  • 745000158761
    $6.04
    WRAP-INSULATE VALVE - 5000158761×1
  • 815000160107
    $1.58
    HOSE-FUEL 1/4 X 2.5 - 5000160107×1
