GS12-GENERATOR,SCHUKO

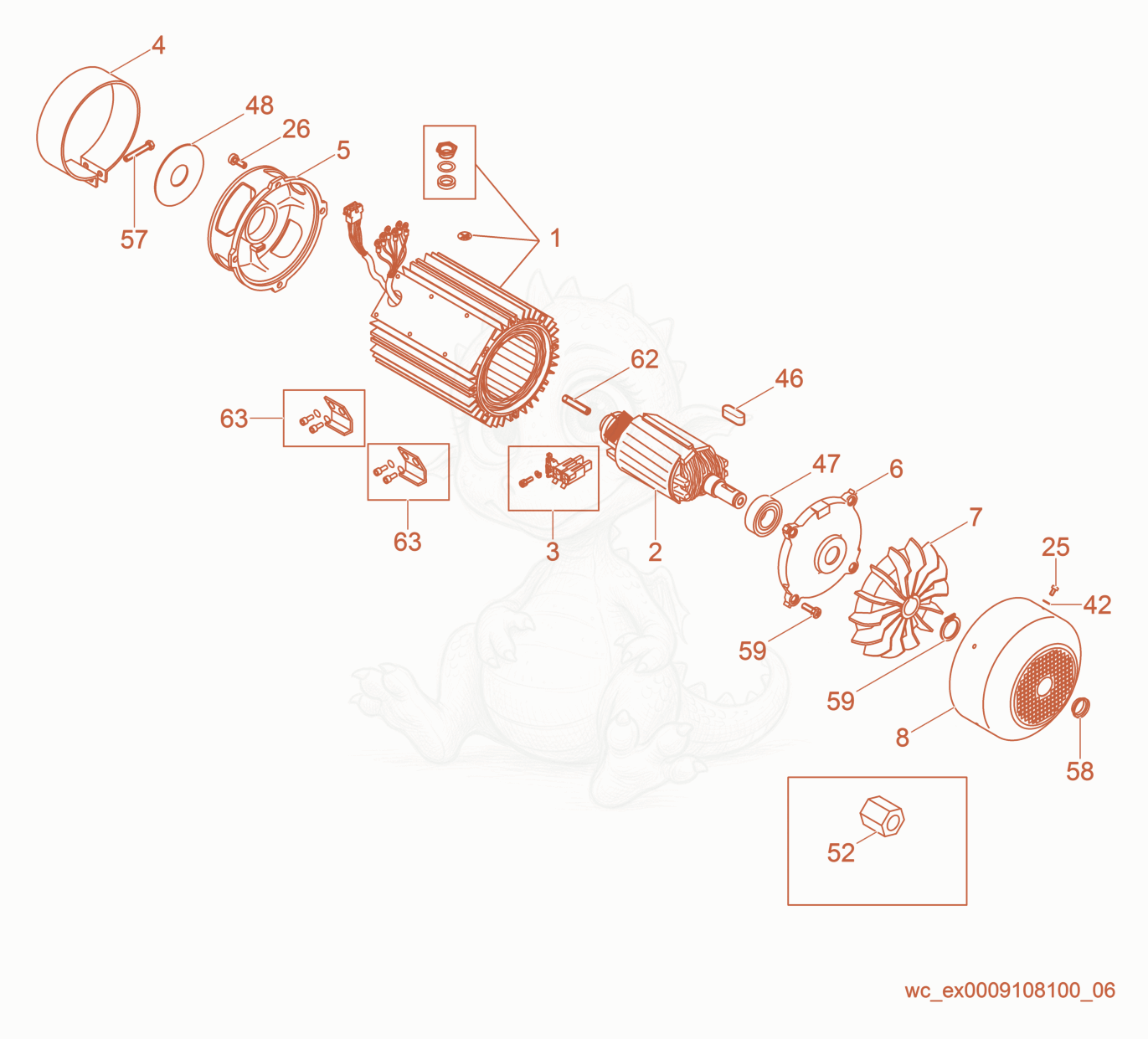

GS12AI Generator Front Diagram

Exploded parts diagram of the Generator Front of a Wacker Neuson GS12AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000159492Not stocked
    Stator complete w/plugs×1
  • 25000159493Not stocked
    Rotor w/bearing×1
  • 35000155963Not stocked
    Brush cpl.×1
  • 45000155964Not stocked
    Clamp w/screws×1
  • 55000155966Not stocked
    Bearing bracket×1
  • 65000155967Not stocked
    Rear casing w/bearing×1
  • 75000155968Not stocked
    Fan cpl.×1
  • 85000155970Not stocked
    Cover cpl.×1
  • 255000155988Not stocked
    Screw×4
  • 265000155989Not stocked
    Screw×8
  • 425000156006Not stocked
    Washer×4
  • 465000156009Not stocked
    Parallel key×1
  • 475000156010Not stocked
    Rotor bearing×1
  • 485000156011Not stocked
    Flange coupling seal×1
  • 525000156015Not stocked
    Tool×1
  • 575000155965Not stocked
    Screw×2
  • 585000110639
    $0.37
    PLUG-HOLE,1.25 ROUND - 5000110639×1
  • 595000155969Not stocked
    Washer×1
  • 625000152825
    $19.07
    X-5200010130 SCREW-5/16-24 X 2.25 - 5000152825×1
  • 635000155974Not stocked
    Generator shockmount bracket cpl.×4
