GS12-GENERATOR,SCHUKO

GS12AI Ignition Coil Diagram

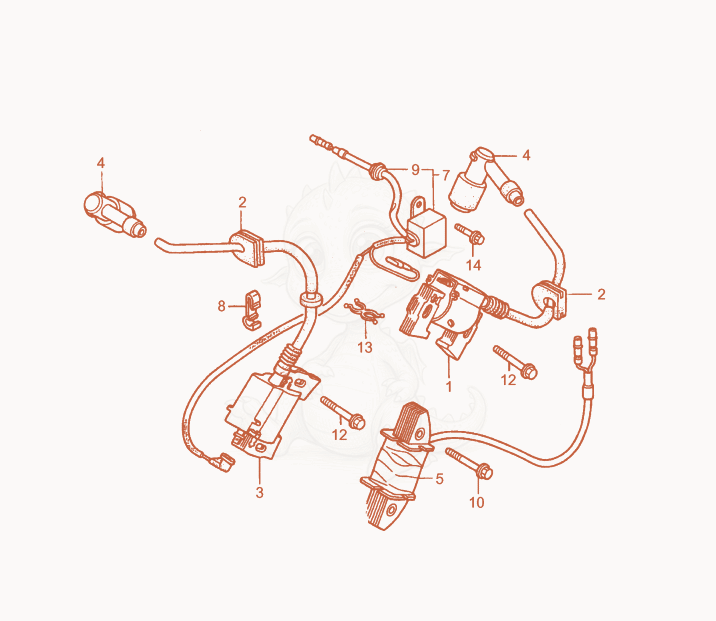

Exploded parts diagram of the Ignition Coil of a Wacker Neuson GS12AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000152554
    $149.28
    COIL-IGNITION,RIGHT - 5000152554×1
  • 25000151937
    $7.24
    GROMMET-IGNITION WIRE - 5000151937×2
  • 35000152555
    $121.55
    COIL-IGNITION,LEFT - 5000152555×1
  • 45000152556
    $21.05
    CAP-SPARK PLUG - 5000152556×2
  • 55000088552
    $257.20
    COIL-CHARGING, 20A - 5000088552×1
  • 75000152557
    $104.04
    DIODE-ASSY,STOP,ENGINE - 5000152557×1
  • 85000152558
    $16.94
    CLAMP-WIRE - 5000152558×1
  • 95000151941
    $6.48
    GROMMET-TOOL - 5000151941×1
  • 105000075870
    $3.10
    SCREW M6 X 35,HEX.FLANGE - 5000075870×2
  • 125000151859
    $4.35
    BOLT-FLANGE (6X32) - 5000151859×2
  • 145000081750
    $5.73
    SCREW M6 X 8,FLANGED - 5000081750×1
