GS12-GENERATOR,SCHUKO

GS12AI Cylinder Diagram

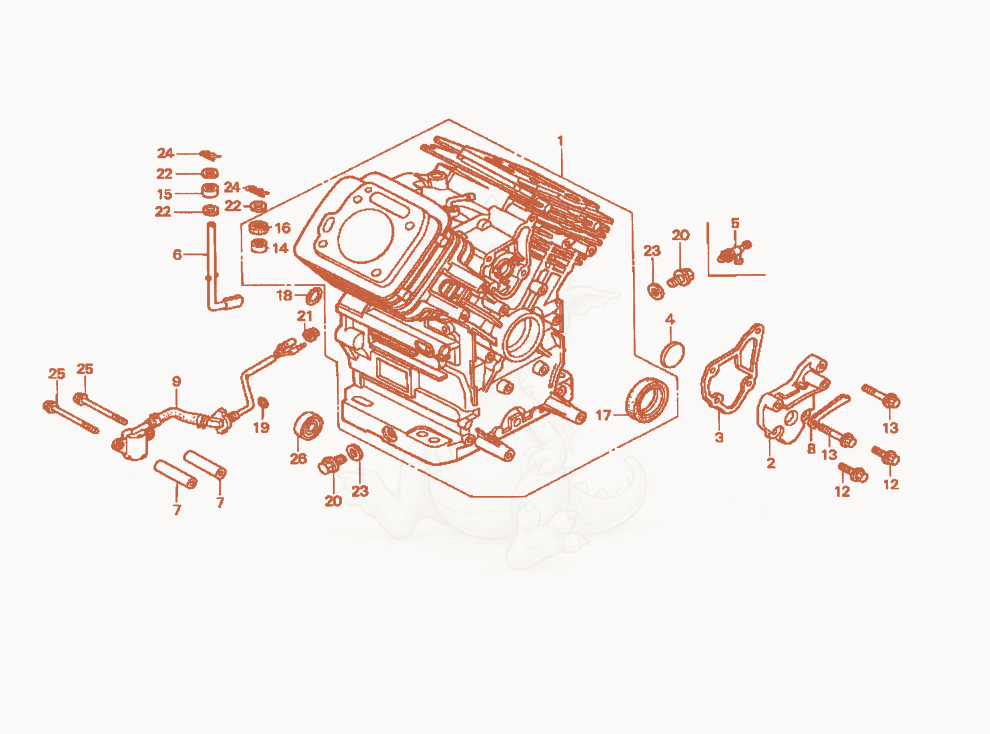

Exploded parts diagram of the Cylinder of a Wacker Neuson GS12AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000159530
    $1,986.62
    CYLINDER ASSEMBLY - 5000159530×1
  • 25000151852
    $47.43
    COVER-BREATHER - 5000151852×1
  • 35000151853
    $14.07
    GASKET-BREATHER COVER - 5000151853×1
  • 45000151854
    $4.63
    VALVE-BREATHER - 5000151854×1
  • 55000152509
    $32.26
    VALVE-DRAIN 14X1.5 - 5000152509×1
  • 65000152510
    $56.08
    SHAFT-GOVERNOR ARM - 5000152510×1
  • 75000159531
    $10.37
    SPACER-TUBE - 5000159531×2
  • 85000151856
    $8.54
    CLAMP-WIRE - 5000151856×1
  • 95000159532
    $78.74
    SWITCH ASSY.-OIL ALERT - 5000159532×1
  • 125000151858
    $3.39
    BOLT-FLANGE (6X16) - 5000151858×2
  • 135000151859
    $4.35
    BOLT-FLANGE (6X32) - 5000151859×2
  • 145000152511
    $10.76
    BEARING-NEEDLE 8X12.7X11.1 - 5000152511×1
  • 155000152512
    $13.97
    BEARING-NEEDLE 8X12X10 - 5000152512×1
  • 165000076367
    $6.28
    SEAL - OIL - 5000076367×1
  • 175000152513
    $13.92
    SEAL-OIL - 5000152513×1
  • 185000151844
    $2.93
    O-RING (13 X 3.0) - 5000151844×1
  • 195000071082
    $4.75
    O-RING 14 X 1.3 - 5000071082×1
  • 205000151861
    $6.60
    BOLT-DRAIN PLUG (14MM) - 5000151861×2
  • 215000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 225000152514
    $1.40
    WASHER-PLAIN 8MM - 5000152514×3
  • 235000116974
    $0.96
    WASHER-PLUG,DRAIN 14MM - 5000116974×2
  • 245000054033
    $1.84
    PIN - 5000054033×2
  • 255000159533
    $2.79
    BOLT M6 X 75,FLANGE - 5000159533×2
  • 265000151863
    $24.73
    BEARING-RADIAL BALL (6003) - 5000151863×1
