GS12-GENERATOR,SCHUKO

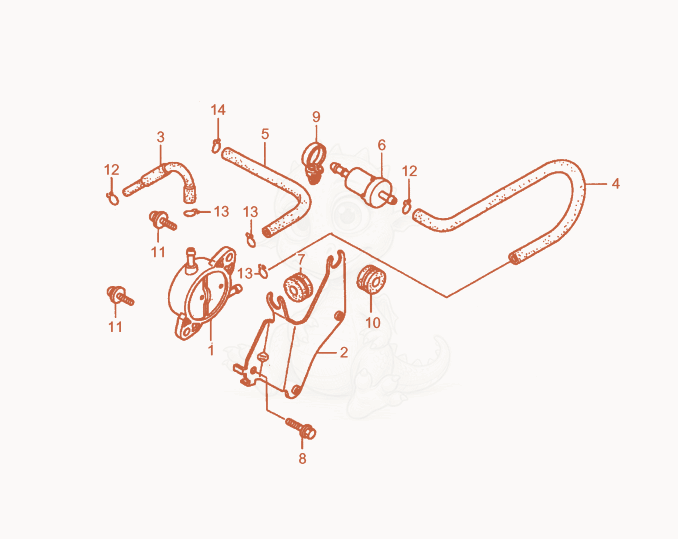

GS12AI Fuel Pump Diagram
- PUMP-ASSY - 5000152544×1
- BRACKET-PUMP,FUEL - 5000152545×1
- TUBE-FUEL - 5000152546×1
- TUBE B-FUEL - 5000152547×1
- TUBE-DIAPHRAGM - 5000152548×1
- FILTER-FUEL - 5000088549×1
- GROMMET-TANK,RESERVE - 5000152549×1
- BOLT-FLANGE 6X14 - 5000152487×1
- CLIP-WIRE HARNESS - 5000151930×1
- GROMMET-PUMP - 5000152550×1
- SCREW-WASHER 6X16 - 5000152551×2
- CLAMP B8,HOSE CLIP - 5000054136×2
- CLIP-TUBE B10 - 5000152552×3
- CLIP-TUBE C9 - 5000152553×1
