GV2500A VALUE GEN NON-CARB

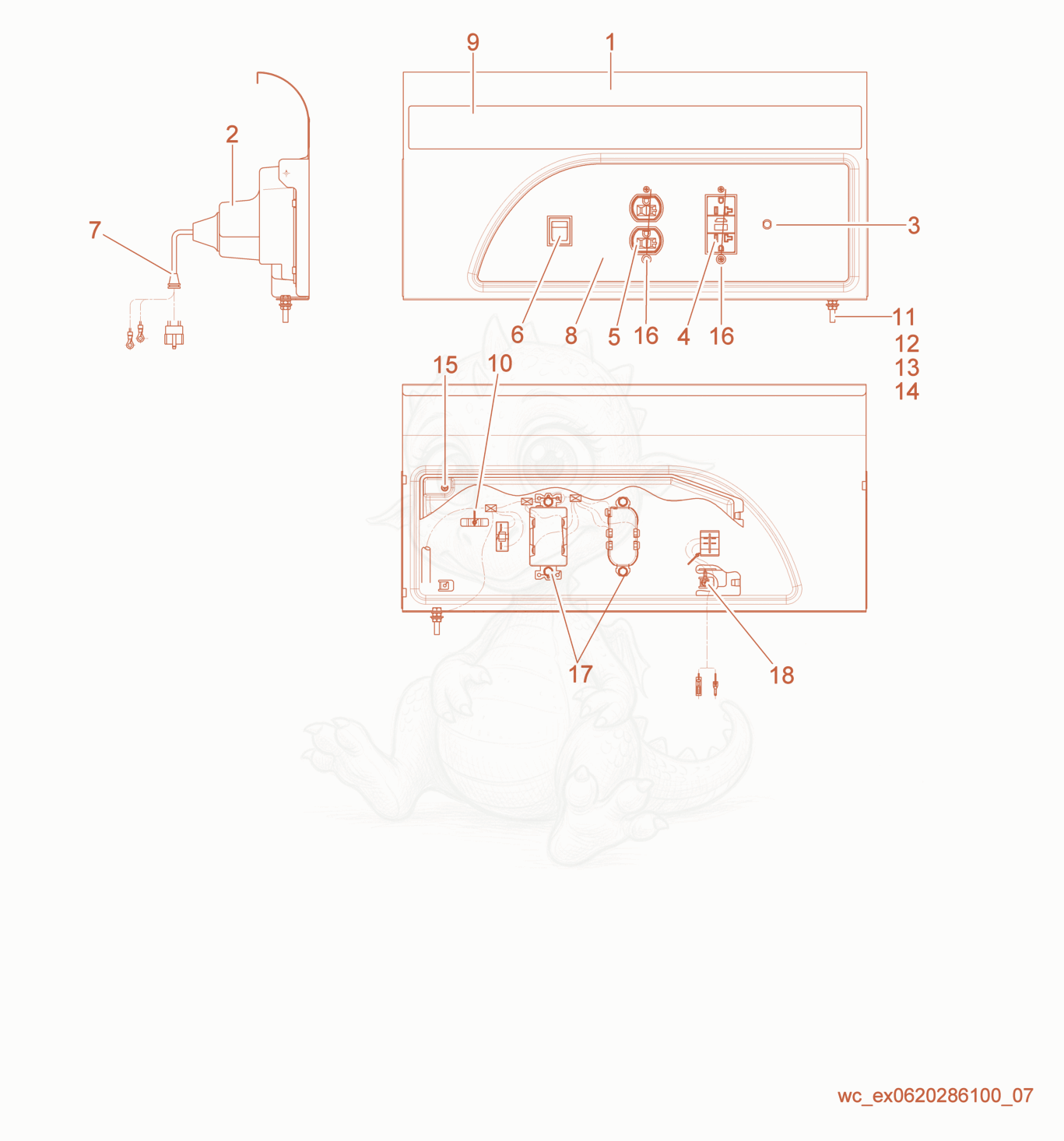

GV2500A Control Box cpl. Diagram
- Panel - 5000170899×1
- Cover - 5000170900×1
- BREAKER-CIRCUIT,20A - 5000170901×1
- KIT-GFI RECEPTACLE - 5000089849×1
- RECEPTACLE-DUPLEX, 20A, 120V - 5000082951×1
- SWITCH-ENGINE,ON-OFF - 5000170904×1
- Wiring Harness - 5000170905×1
- PLATE-PANEL - 5000170906×1
- Label - 5000170907×1
- Clip - 5000170908×1
- BOLT M6 X 28 - 5000170909×1
- NUT M6 - 5000170910×2
- WASHER-SPRING M6 - 5000170911×2
- WASHER M6 - 5000170912×1
- SCREW M4 X 10 - 5000170913×2
- SCREW M4 X 10,BLACK - 5000170914×4
- Nut - 5000170915×4
- SCREW M4 X 6 - 5000170916×1
