GV2500A VALUE GEN NON-CARB

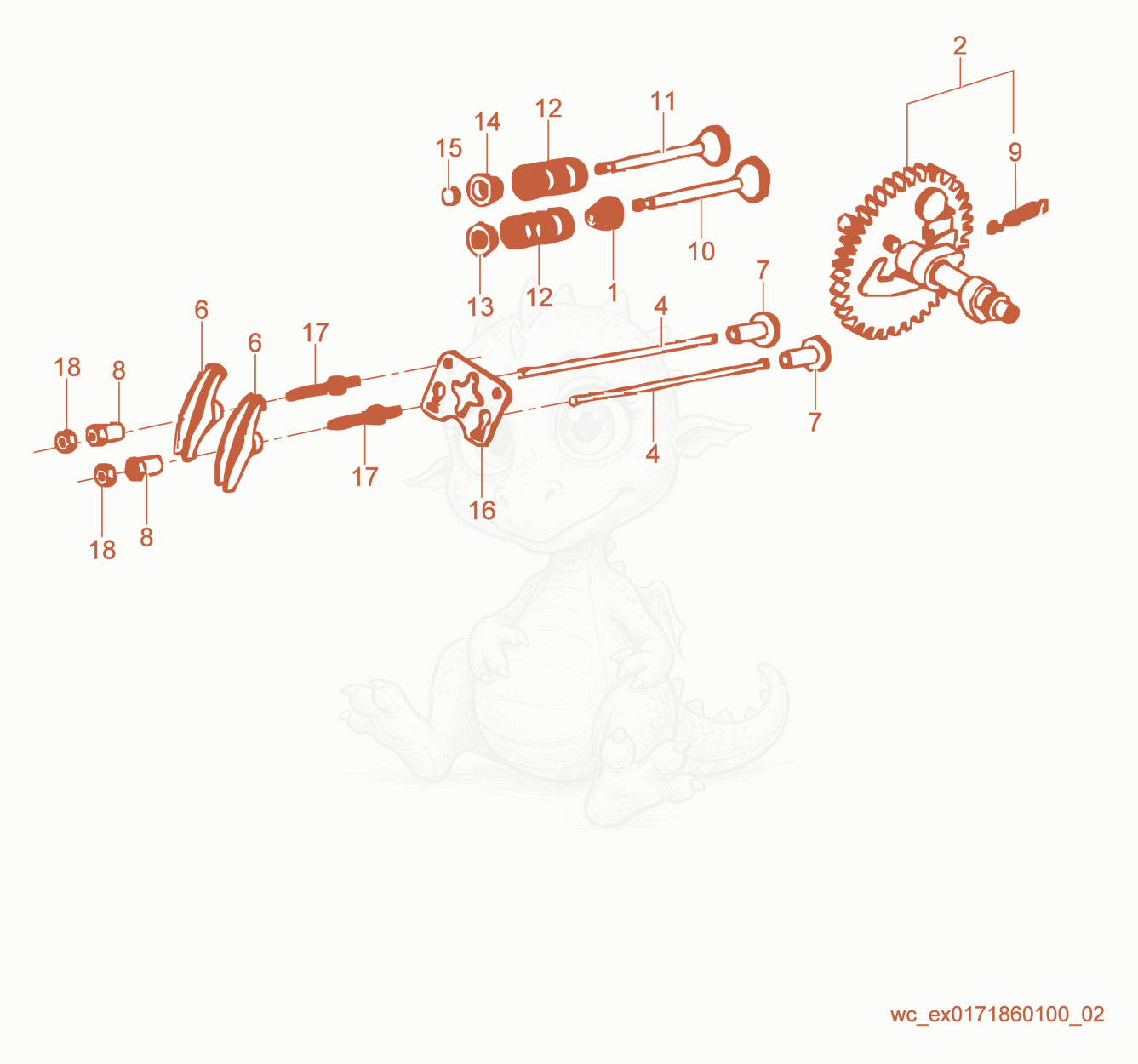

GV2500A Camshaft Diagram

Exploded parts diagram of the Camshaft of a Wacker Neuson GV2500A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000162615
    $10.30
    SEAL-VALVE STEM - 5000162615×1
  • 25000158457
    $210.69
    CAMSHAFT-ASSEMBLY - 5000158457×1
  • 45000071637
    $10.22
    ROD-PUSH - 5000071637×2
  • 65000070986
    $9.08
    ROCKER ARM-VALVE,ENGINE - 5000070986×2
  • 75000070990
    $17.34
    TAPPET-VALVE,ENGINE - 5000070990×2
  • 85000070985
    $7.60
    PIVOT-ROCKER ARM - 5000070985×2
  • 95000151028
    $3.98
    SPRING-WEIGHT RETURN - 5000151028×1
  • 105000082005
    $24.94
    VALVE-INTAKE - 5000082005×1
  • 115000082006
    $71.68
    VALVE-EXHAUST - 5000082006×1
  • 125000081760
    $5.49
    SPRING-ENGINE VALVE - 5000081760×2
  • 135000070996
    $1.47
    Cup spring - 5000070996×1
  • 145000070997
    $12.55
    HOLDER-EXHAUST SPRING - 5000070997×1
  • 155000070998
    $7.24
    CAP-ROTATOR,ENGINE VALVE - 5000070998×1
  • 165000073265
    $4.88
    PLATE - 5000073265×1
  • 175000072778
    $10.09
    STUD-ROCKER ARM PIVOT - 5000072778×2
  • 185000070984
    $4.97
    NUT 1/4-28,PIVOT ADJUSTMENT - 5000070984×2
