GV5000A

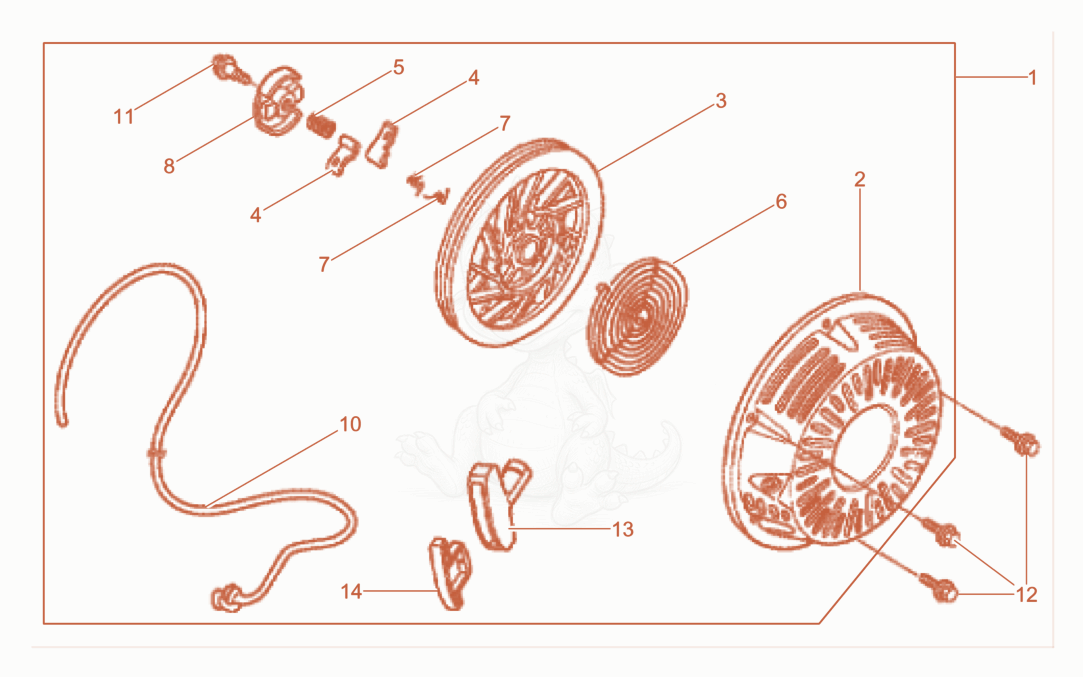

GV5000A Starter Diagram
- Starter - 5100000423×1
- Housing cpl. - 5100000427×1
- PULLEY-REWIND STARTER - 5000081644×1
- RATCHET-PAWL,REWIND STARTER - 5000081645×2
- SPRING-STARTER FRICTION - 5000081646×1
- SPRING-STARTER RETURN - 5000081647×1
- SPRING-STARTER RATCHET - 5000081648×2
- HOLDER-STARTER SPRING - 5000081649×1
- ROPE-RECOIL STARTER - 5000151037×1
- Screw - 5000081658×1
- SCREW M6 X 10,HX.FLANGED - 5000071053×3
- handle - 5100000428×1
- Handle - 5100000429×1
