GV5000A

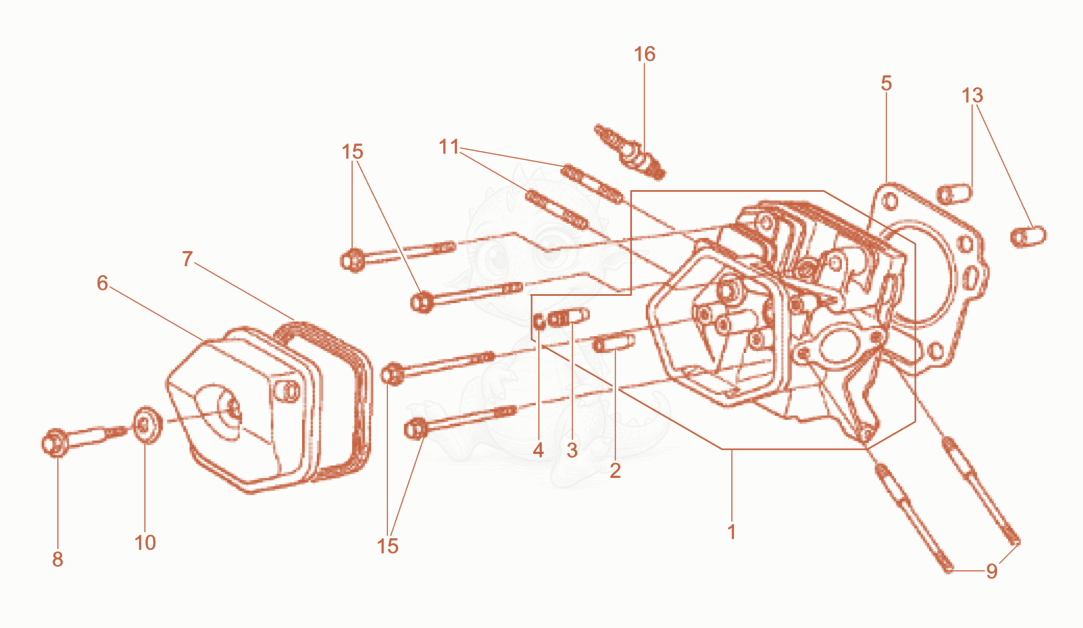

GV5000A Cylinder head Diagram

Exploded parts diagram of the Cylinder head of a Wacker Neuson GV5000A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000353
    $157.19
    Cylinder head cpl. - 5100000353×1
  • 25000110602
    $28.47
    GUIDE-VALVE,INTAKE - 5000110602×1
  • 35000074648
    $26.35
    GUIDE-EXHAUST VALVE - 5000074648×1
  • 45000074660
    $2.85
    RET.RING 11.9MM,FORM C - 5000074660×1
  • 55100000355
    $4.02
    Cylinder head gasket - 5100000355×1
  • 65000089273
    $77.37
    COVER-CYLINDER HEAD - 5000089273×1
  • 75000074645
    $15.43
    GASKET-CYLINDER HEAD COVER - 5000074645×1
  • 85200000468
    $1.63
    screw - 5200000468×1
  • 95100003569Not stocked
    Bolt×2
  • 105000074657
    $7.71
    WASHER - 5000074657×1
  • 115000213388
    $1.63
    BOLT-STUD - 5000213388×2
  • 135000074652
    $3.70
    PIN 12 X 20,DOWEL - 5000074652×2
  • 145100003507
    $5.04
    Flange screw - 5100003507×4
  • 155000162698Not stocked
    Spark plug×1
