GV7003A-50 HZ VALUE GEN,SCHUKO

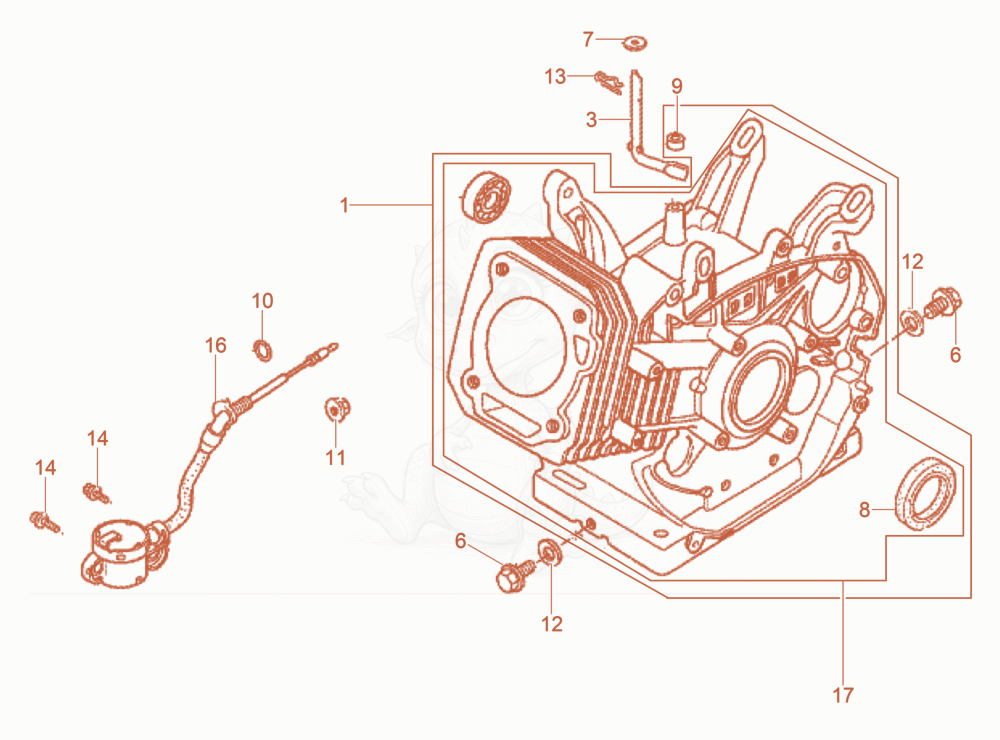

GV7003A Cylinder housing Diagram

Exploded parts diagram of the Cylinder housing of a Wacker Neuson GV7003A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000352
    $1,893.03
    Cylinder housing cpl. - 5100000352×1
  • 35000110114
    $18.96
    SHAFT-GOVERNOR - 5000110114×1
  • 65100003483Not stocked
    Drain screw×1
  • 75000074656
    $2.66
    Washer - 5000074656×1
  • 85100000453
    $25.82
    Lock ring - 5100000453×1
  • 95000157749
    $7.85
    X-5000076367 SEAL-OIL - 5000157749×1
  • 105000208616Not stocked
    O-Ring×1
  • 115000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 125000053994
    $1.84
    SEAL-RING 12MM - 5000053994×2
  • 135000110110
    $1.84
    PIN-COTTER 10MM - 5000110110×1
  • 145100003498Not stocked
    Flange screw×2
  • 155100003509
    $20.87
    Grooved ball bearing - 5100003509×1
  • 165000217492
    $81.85
    Switch oil safety - 5000217492×1
