GV7003A-50 HZ VALUE GEN,SCHUKO

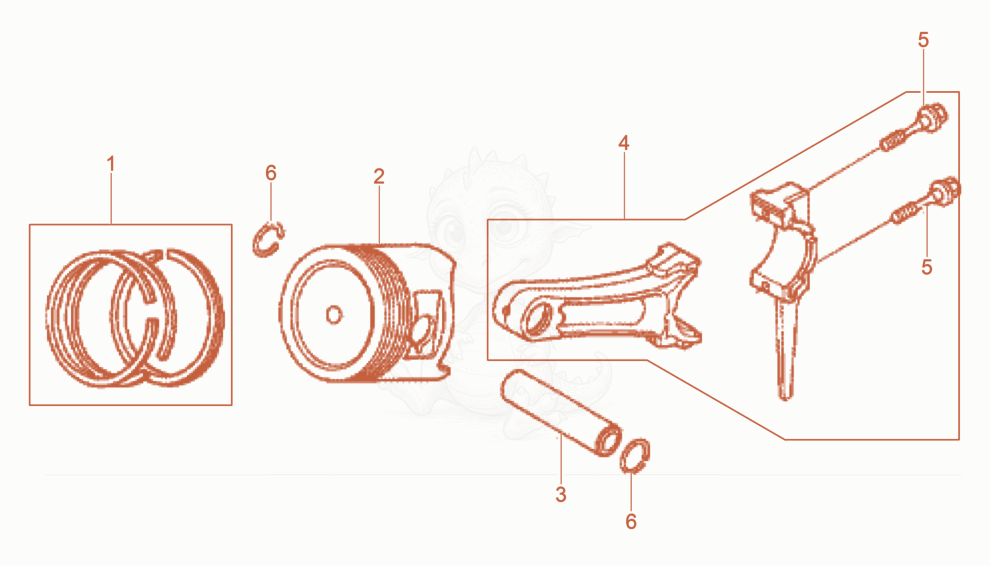

GV7003A Piston Diagram

Exploded parts diagram of the Piston of a Wacker Neuson GV7003A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000358
    $64.17
    Set-piston rings - 5100000358×1
  • 15100000360Not stocked
    Set of piston rings×1
  • 15100000362Not stocked
    Set of piston rings×1
  • 15100000364
    $161.32
    Set-piston rings - 5100000364×1
  • 15100003354Not stocked
    Set of piston rings×1
  • 15100003359Not stocked
    Set of piston rings×1
  • 15100003564
    $232.71
    Set of piston rings - 5100003564×1
  • 25100000366Not stocked
    Piston×1
  • 25100000368Not stocked
    Piston×1
  • 25100000370Not stocked
    Piston (0,50)×1
  • 25100000371
    $23.56
    Piston (0.75) - 5100000371×1
  • 25100000372
    $93.10
    Piston - 5100000372×1
  • 35100000374
    $31.21
    Piston pin - 5100000374×1
  • 45100000375
    $237.84
    Connecting rod cpl. - 5100000375×1
  • 45100000376
    $354.09
    Connecting rod cpl. - 5100000376×1
  • 55000075807
    $5.36
    SCREW-CONNECTING ROD - 5000075807×2
  • 65000075804
    $2.77
    RET.RING 22.44MM,FORM C - 5000075804×2
