HI1000DGM

HI1000DGM Engine Components (1) Diagram

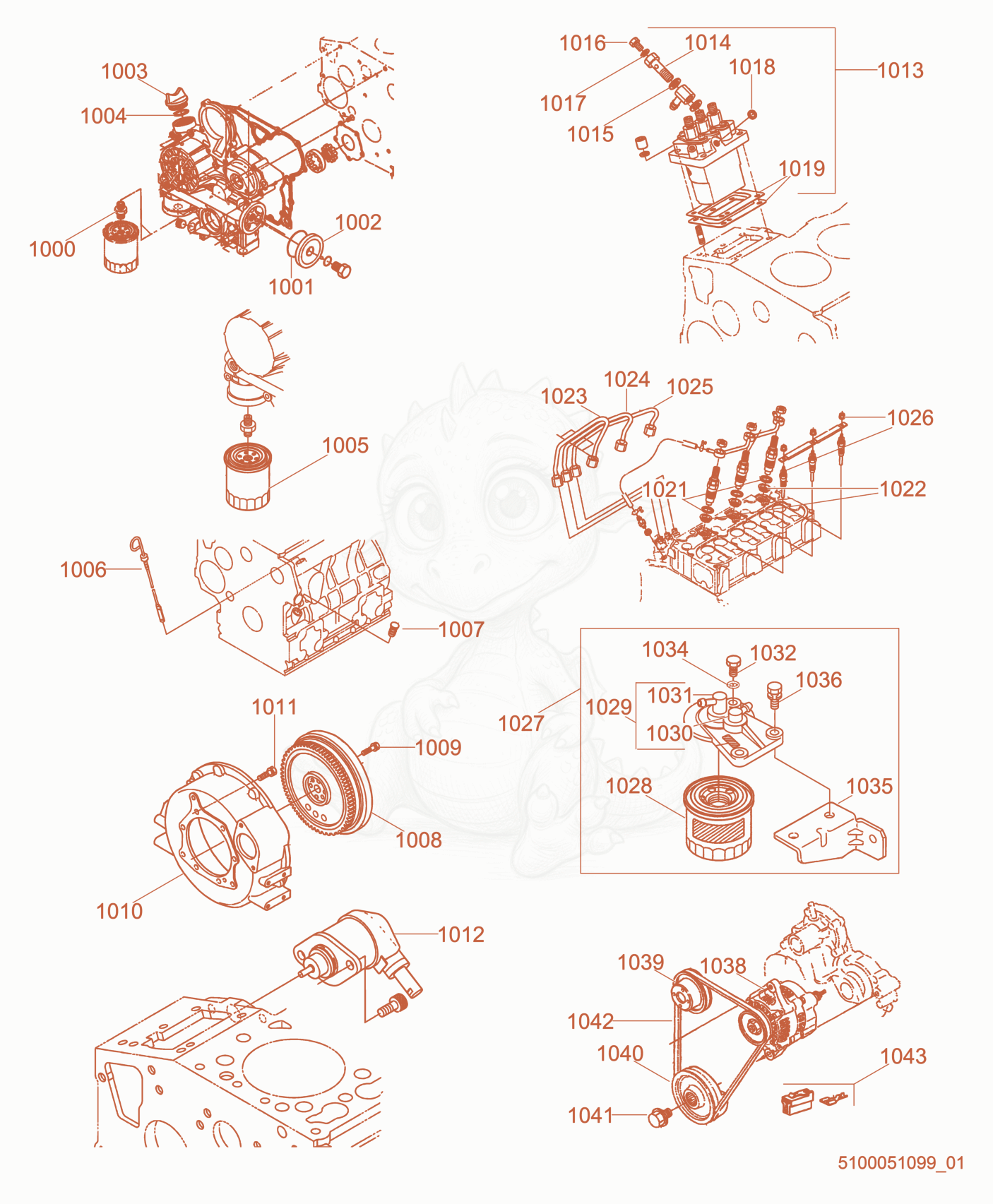

Exploded parts diagram of the Engine Components (1) of a Wacker Neuson HI1000DGM, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 10001000087583
    $47.52
    CONNECTION PIECE - 1000087583×1
  • 10015100015677Not stocked
    O-Ring×1
  • 10025100015678Not stocked
    O-Ring×1
  • 10031000324904
    $6.06
    PLUG - 1000324904×1
  • 10045100024213Not stocked
    O-ring×1
  • 10055000169273Not stocked
    Oil filter×1
  • 10065100024584Not stocked
    Oil dipstick×1
  • 10075200018134Not stocked
    Oil plug×1
  • 10085100024585Not stocked
    Flywheel×1
  • 10091000087594
    $14.78
    Screw - 1000087594×6
  • 10105100024586Not stocked
    Flywheel housing×1
  • 10111000087595
    $5.76
    Screw - 1000087595×8
  • 10125000173574Not stocked
    Glow plug×1
  • 10131000109130
    $1,734.03
    INJECTION PUMP - 1000109130×1
  • 10141000088776
    $102.99
    Banjo bolt - 1000088776×1
  • 10155200018128Not stocked
    Gasket×2
  • 10165200018129Not stocked
    Screw×1
  • 10175200018130Not stocked
    Gasket×1
  • 10185100024587Not stocked
    Gasket×1
  • 10195100024612Not stocked
    Shim×1
  • 10201000003841
    $36.39
    leakoil line - 1000003841×1
  • 10211000019029Not stocked
    seal ring×3
  • 10221000085224
    $5.83
    ENGINE GASKET - 1000085224×3
  • 10231000003596
    $35.57
    Injection line - 1000003596×1
  • 10241000003597
    $37.46
    Injection line - 1000003597×1
  • 10251000003598
    $65.43
    Injection line - 1000003598×1
  • 10265200018125Not stocked
    Glow plug×3
  • 10361000085230
    $11.06
    HEX SCREW - 1000085230×2
  • 10385000173564Not stocked
    Alternator×1
  • 10395100024621Not stocked
    Pulley×1
  • 10405100024624Not stocked
    Fan drive×1
  • 10415100024625Not stocked
    Bolt×1
  • 10421000003486
    $27.75
    V-BELT - 1000003486×1
  • 10435000180593Not stocked
    Terminal×1
