HI1000DGM

HI1000DGM Wiring cpl. Diagram

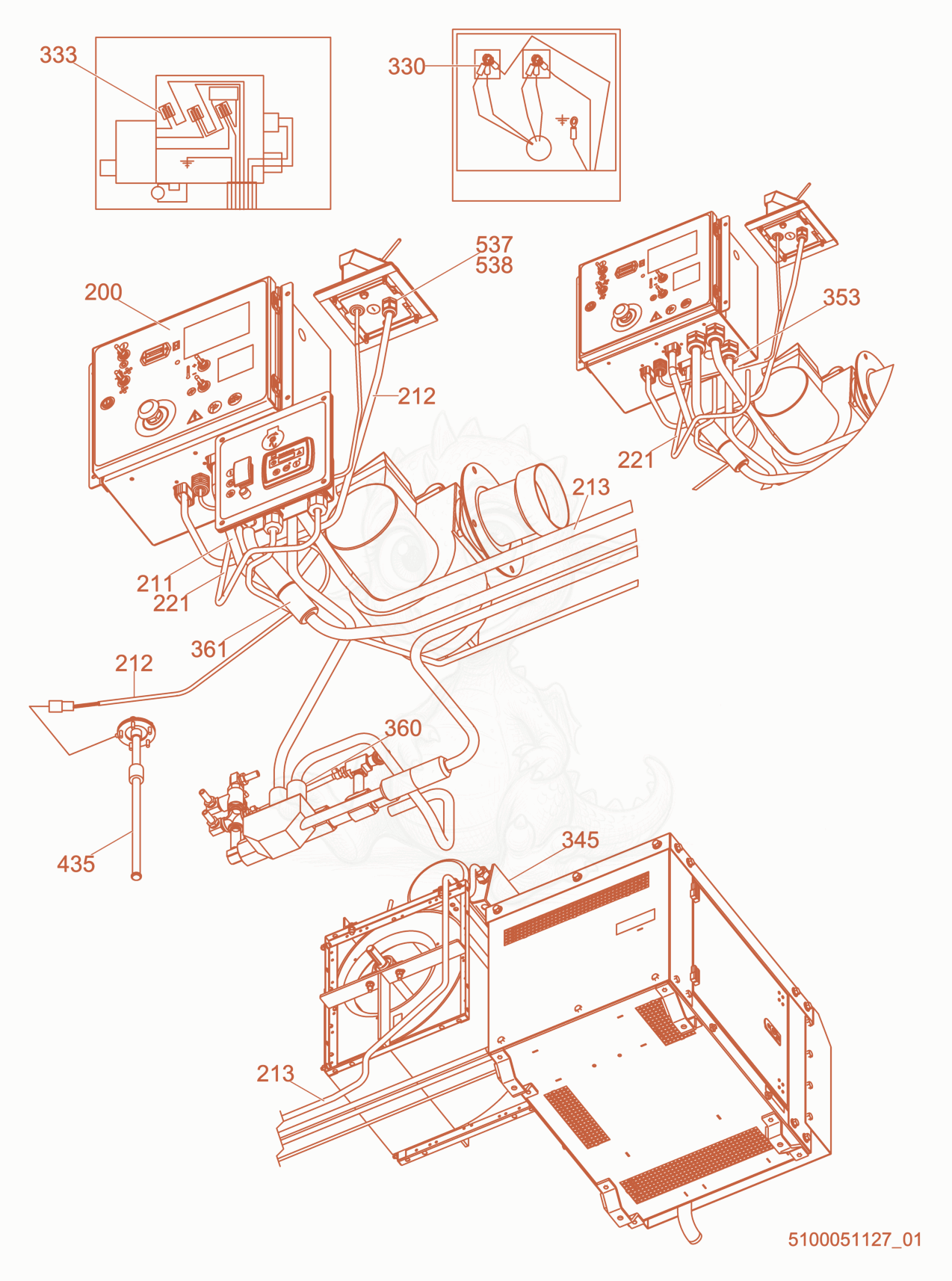

Exploded parts diagram of the Wiring cpl. of a Wacker Neuson HI1000DGM, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2005200018601Not stocked
    Control panel×1
  • 2115200018603Not stocked
    Cable cpl., burner×1
  • 2125200018605Not stocked
    Wiring harness×1
  • 2135200020435Not stocked
    Cable×1
  • 2215200023287Not stocked
    Wiring harness×1
  • 3305000183789Not stocked
    Ring terminal×4
  • 3335000166833Not stocked
    Terminal×6
  • 3455200021450Not stocked
    Motor×1
  • 3535000166030Not stocked
    Hose cpl.×1
  • 3605000166519Not stocked
    Plug×1
  • 3615000182262Not stocked
    Plug×1
  • 4355200001006
    $182.05
    Sensor-Fuel,350w/connector - 5200001006×1
  • 5055000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
