H 50D HEATER-INDIRECT

HI750D Inlet Box Diagram

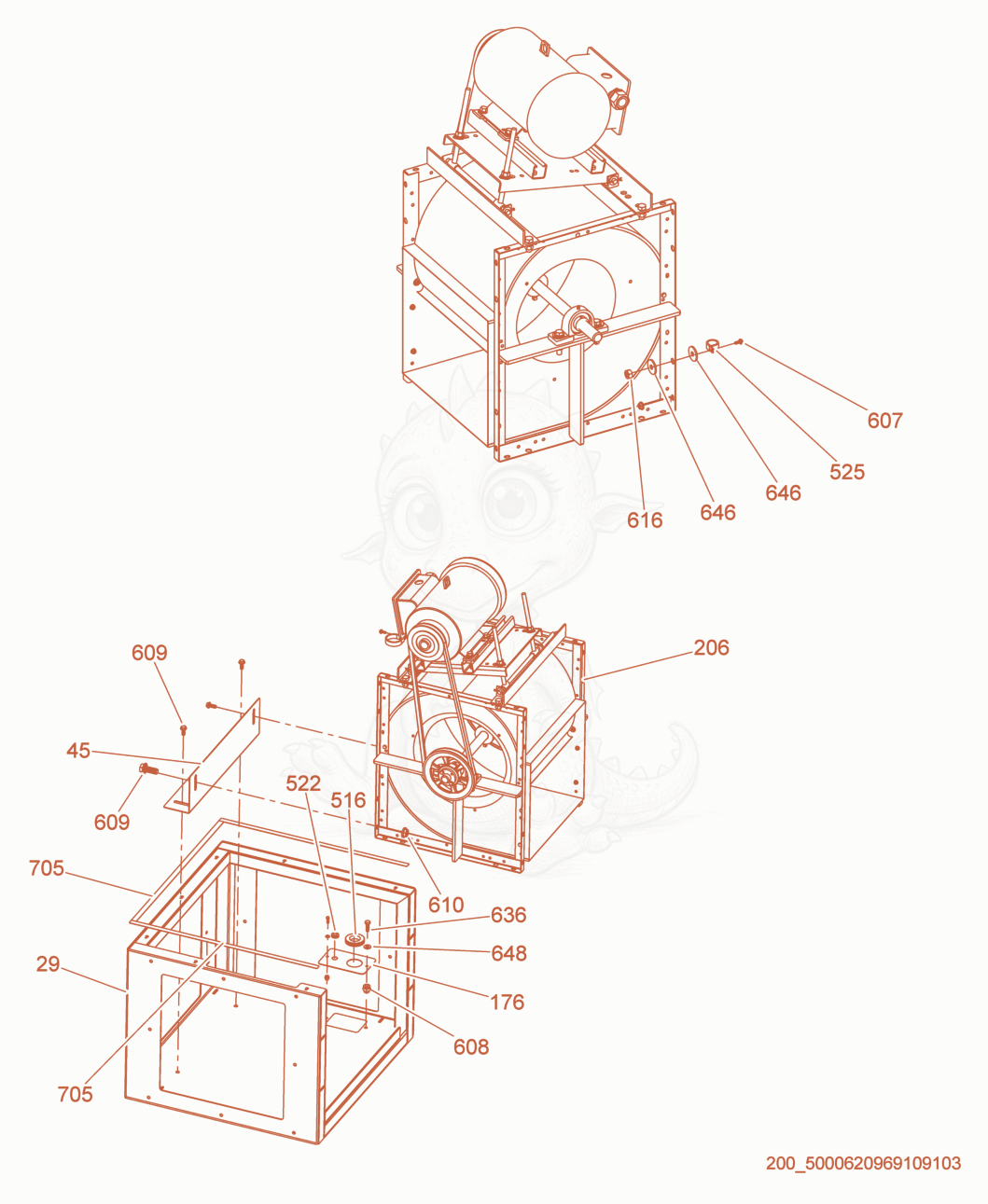

Exploded parts diagram of the Inlet Box of a Wacker Neuson HI750D, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 295000180882Not stocked
    Frame×1
  • 455000181822Not stocked
    Support×1
  • 1765200000508Not stocked
    Cover×1
  • 2065200006643Not stocked
    Fan×1
  • 5165000172467Not stocked
    Grommet×1
  • 5225000168265Not stocked
    Grommet×1
  • 5255000168129Not stocked
    Clamp×1
  • 5265000170267Not stocked
    Clamp×1
  • 6075000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 6085000173960Not stocked
    Nut×2
  • 6095000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×4
  • 6105000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
  • 6165000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 6365000189215Not stocked
    Hexagonal head cap screw×2
  • 6465000192389Not stocked
    Flat washer×4
  • 6485000192393Not stocked
    Flat washer×2
