H 50D HEATER-INDIRECT

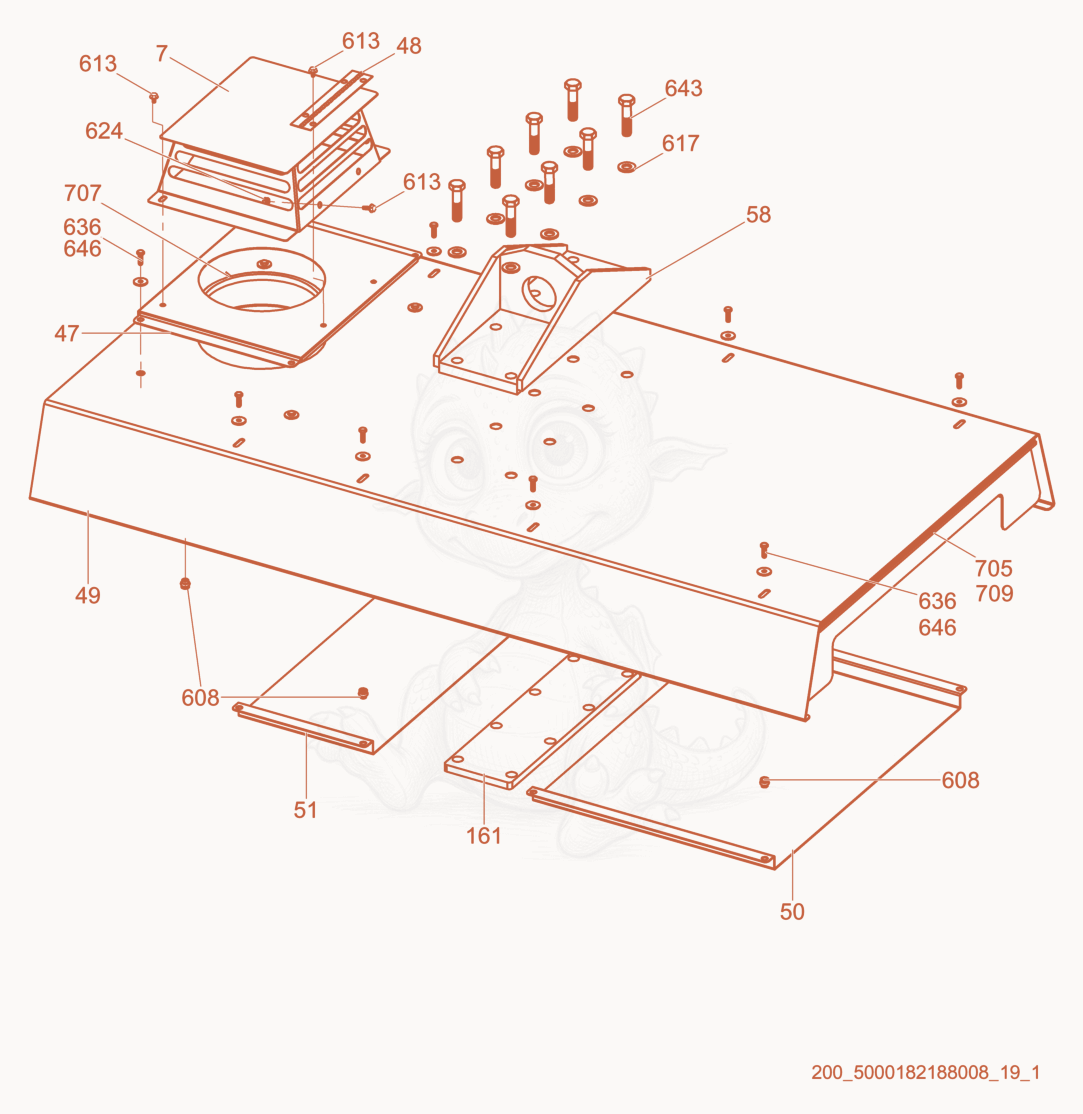

HI750D Top Cover Diagram

Exploded parts diagram of the Top Cover of a Wacker Neuson HI750D, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 75000180120Not stocked
    Cap×1
  • 475000182243Not stocked
    Seal×1
  • 485000181869Not stocked
    Hinge×1
  • 495000181874
    $294.70
    COVER-TOP WELDMENT - 5000181874×1
  • 505000181876Not stocked
    Panel×1
  • 515000181877Not stocked
    Panel×1
  • 585000181464Not stocked
    Bracket×1
  • 1615000188490Not stocked
    Spacer plate×1
  • 6075000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×6
  • 6085000173960Not stocked
    Nut×12
  • 6135000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×4
  • 6175000010619
    $0.31
    WASHER-B15 - 5000010619×8
  • 6245000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×6
  • 6365000189215Not stocked
    Hexagonal head cap screw×8
  • 6435000189833Not stocked
    Screw×8
  • 6465000192389Not stocked
    Flat washer×8
  • 7095000168354Not stocked
    Trim×1
