HI750G HEATER-INDIRECT

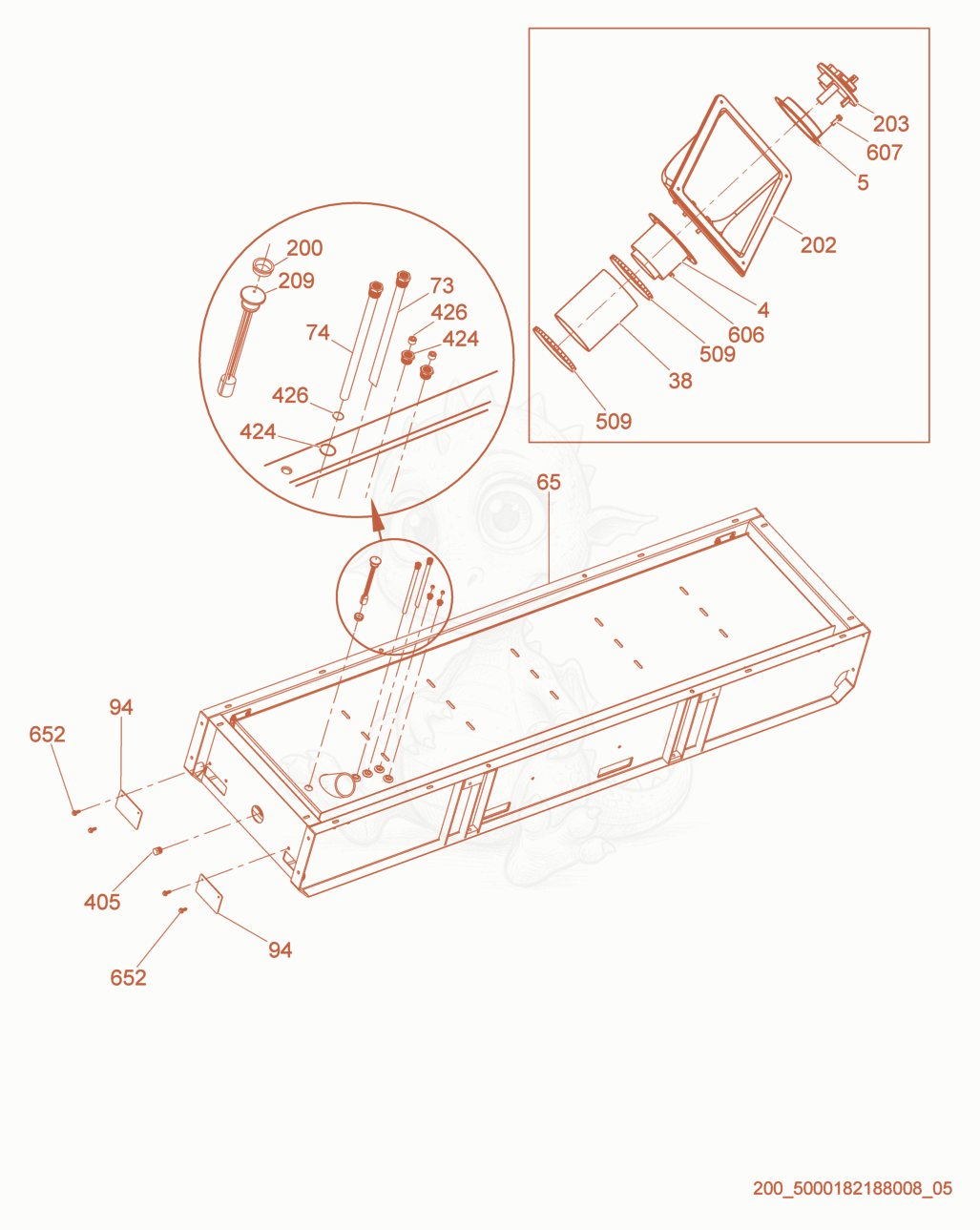

HI750G Fuel Tank Diagram

Exploded parts diagram of the Fuel Tank of a Wacker Neuson HI750G, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000177986Not stocked
    Filler tube×1
  • 55000184028Not stocked
    Adapter×1
  • 385000181596Not stocked
    Fuel fill hose×1
  • 655000183464Not stocked
    Frame×1
  • 735000183481Not stocked
    Tube×1
  • 745000183482Not stocked
    Tube×1
  • 945000183476Not stocked
    Cover plate×2
  • 2005000088166
    $5.33
    BUSHING-FUEL GAUGE - 5000088166×1
  • 2025000171136
    $29.36
    PORT-FUEL FILL - 5000171136×1
  • 2035000176369Not stocked
    Fuel tank cap×1
  • 2095000181921Not stocked
    Fuel gauge×1
  • 4055000171284Not stocked
    Plug-pipe×1
  • 4245000168458Not stocked
    Bushing×2
  • 4265000168235Not stocked
    Plug×2
  • 5095000154346
    $4.38
    CLAMP-WORM DRIVE 4.06 -5 - 5000154346×2
  • 6065000177095Not stocked
    Hexagon nut×8
  • 6075000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×8
  • 6525000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×4
