HI750G HEATER-INDIRECT

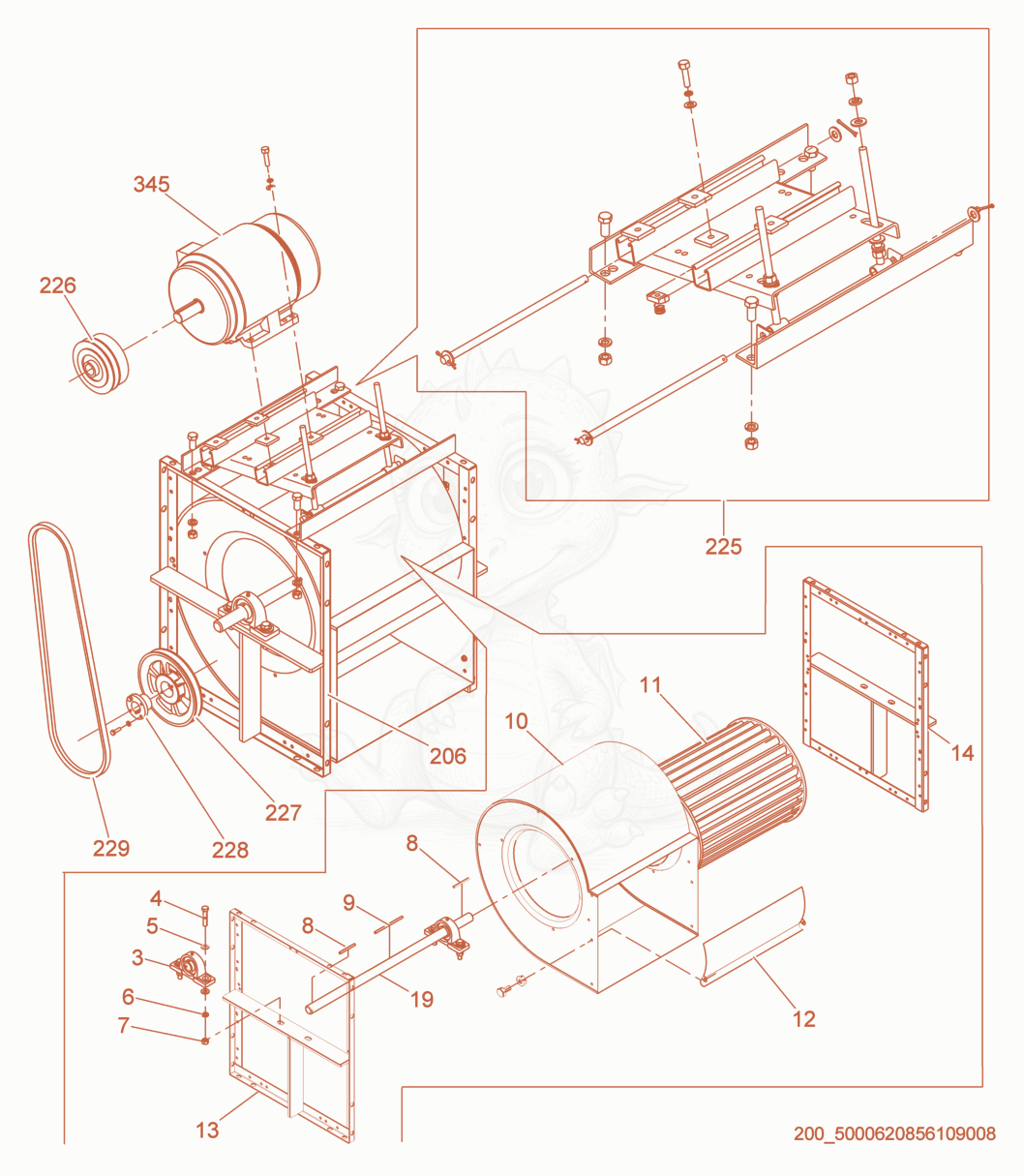

HI750G Blower cpl. 1~ Diagram
- 35000192587Not stockedBearing-pillow×2
- SCREW 1/2-13 X 2 GR5,HX.HD. - 5000025689×4
- WASHER 1/2 NOM,STEEL,FLAT - 5000025639×8
- 65000167734Not stockedLock washer×4
- NUT 1/2-13,HEX. - 5000025619×4
- 85000192586Not stockedKey×2
- 95000192584Not stockedKey×1
- 105000192592Not stockedBlower housing×1
- 115000192583Not stockedBlower wheel×1
- 125000192596Not stockedBaffle×1
- 135000192593Not stockedFrame-left side weldment×1
- 145000192594Not stockedFrame-right side weldment×1
- 195000192585Not stockedShaft×1
- 2065200006643Not stockedFan×1
- 2255000192539Not stockedMotor mount×1
- 2265200004662Not stockedCentrifugal clutch×1
- 2275200007332Not stockedPulley×1
- 2285000192542Not stockedBushing×1
- 2295200007334Not stockedBelt×1
- 3455200021450Not stockedMotor×1
