HIF 600 Flameless Air Heater

HIF600 Control Box Diagram

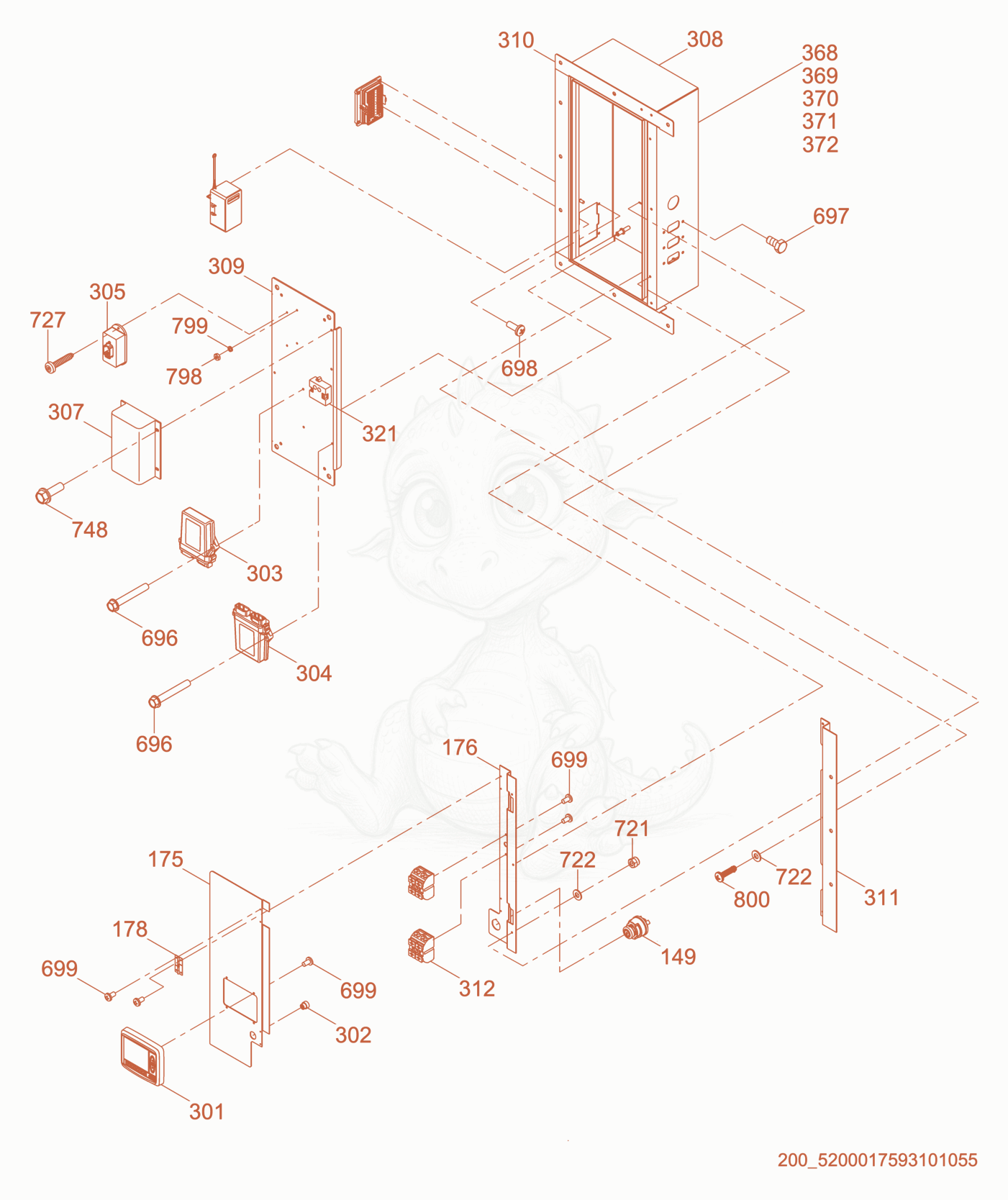

Exploded parts diagram of the Control Box of a Wacker Neuson HIF600, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1495000089818
    $156.99
    SWITCH-IGNITION - 5000089818×1
  • 1755100014872Not stocked
    Cover-Control Panel×1
  • 1765100014876Not stocked
    Cover×1
  • 1785100014878Not stocked
    Hinge×2
  • 3015200020973Not stocked
    Control module×1
  • 3025200020946Not stocked
    Plug×1
  • 3035200020966Not stocked
    Control module×1
  • 3045200020948Not stocked
    Control valve×1
  • 3055200020970Not stocked
    Control module×1
  • 3075200009280Not stocked
    Power unit, converter×1
  • 3085200020977Not stocked
    Electrical box×1
  • 3095200020978Not stocked
    Control panel×1
  • 3105200021425Not stocked
    Flange×2
  • 3115200021430Not stocked
    Flange×2
  • 3125200021432Not stocked
    Terminal block×2
  • 3215100015326Not stocked
    Alarm×1
  • 3685100022813Not stocked
    Wire (Red)×1
  • 3695100022815Not stocked
    Wire (Red)×1
  • 3705100022816Not stocked
    Wire (Orange)×1
  • 3715100022817Not stocked
    Wire (Red)×1
  • 3725100022818Not stocked
    Wire (Red)×1
  • 6965000167929Not stocked
    Screw×2
  • 6975000012357
    $0.10
    SCREW M6 X 12 HX.HD. - 5000012357×6
  • 6985000174012Not stocked
    Pan head screw×7
  • 6995000167835Not stocked
    Screw×14
  • 7215000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×3
  • 7225000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×6
  • 7275000167848Not stocked
    Screw×2
  • 7485000167793Not stocked
    Screw×4
  • 7985000167846Not stocked
    Nut×1
  • 7995000167888Not stocked
    Lock washer×1
  • 8005200015735Not stocked
    Screw×3
