HIF 600 Flameless Air Heater

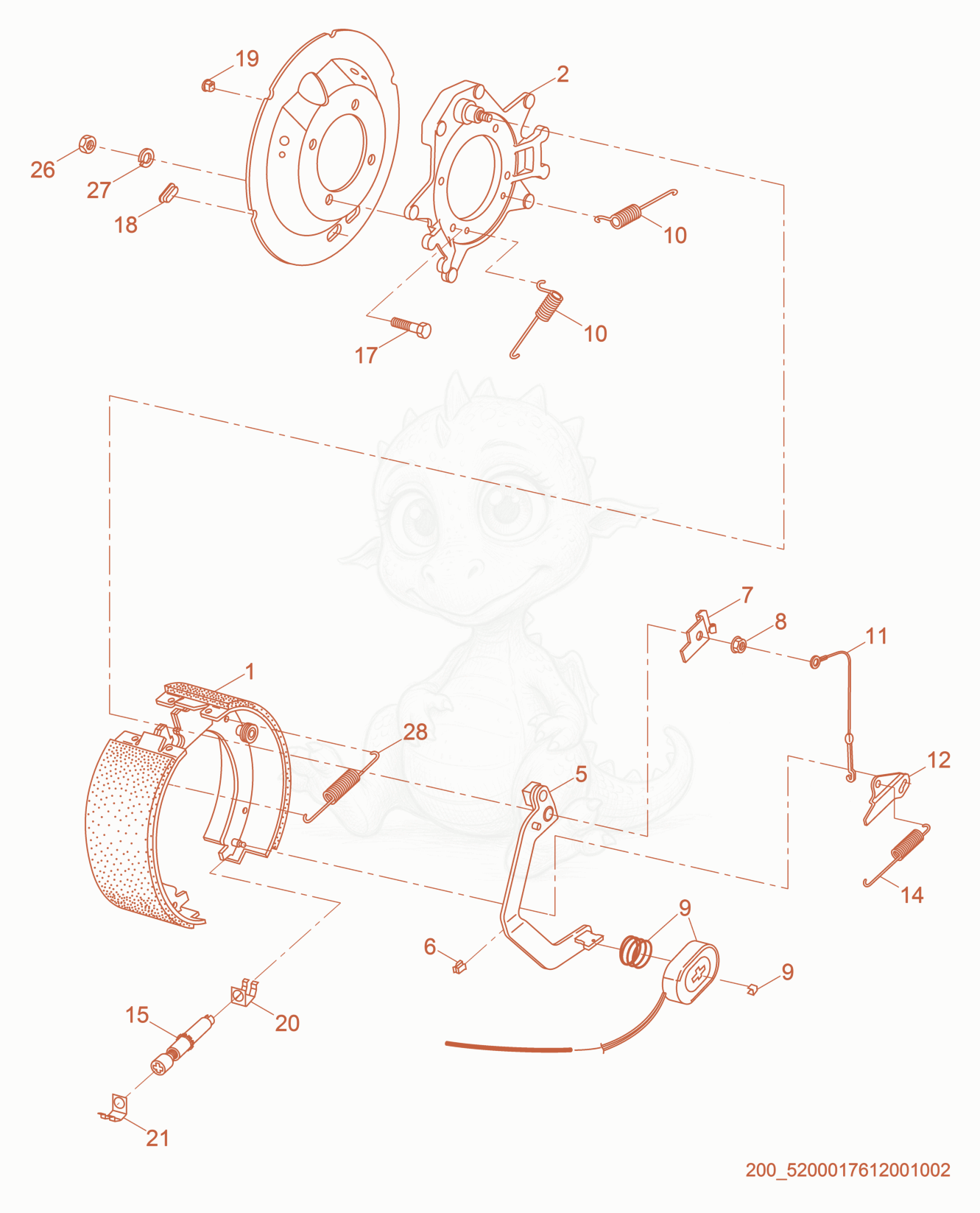

HIF600 Brake cpl. Diagram
- 15100017082Not stockedBrake Shoe & Lining Kit (Left)×1
- 15100017083Not stockedBrake Shoe & Lining Kit (Right)×1
- 25100017084Not stockedBack plate×1
- 55100017085Not stockedLever (left)×1
- 55100017086Not stockedLever (right)×1
- 65100017087Not stockedClip×3
- 75100017088Not stockedRetainer (Left)×1
- 75100017089Not stockedRetainer (Right)×1
- NUT-SHACKLE BOLT LOCK - 5000077917×1
- 95100017090Not stockedMagnet Kit×1
- 105100017091Not stockedSpring×2
- 115100017092Not stockedElectric wire×1
- 125100017094Not stockedAdjusting lever (Right)×1
- 125100017093Not stockedAdjusting lever (Left)×1
- 145100017095Not stockedAdjuster spring×1
- 155100017105Not stockedBrake adjuster (Left)×1
- 155100017106Not stockedBrake adjuster (Right)×1
- 175100017096Not stockedBolt×4
- 185100017097Not stockedPlug×2
- 195100017098Not stockedGrommet×1
- 205100017099Not stockedClip×1
- 215100017100Not stockedClip×1
- 265100017101Not stockedNut×4
- 275100017102Not stockedLockwasher×4
- 285100017104Not stockedSpring-return×1
