HPG100A

HPG100A Truss Screed Components Diagram

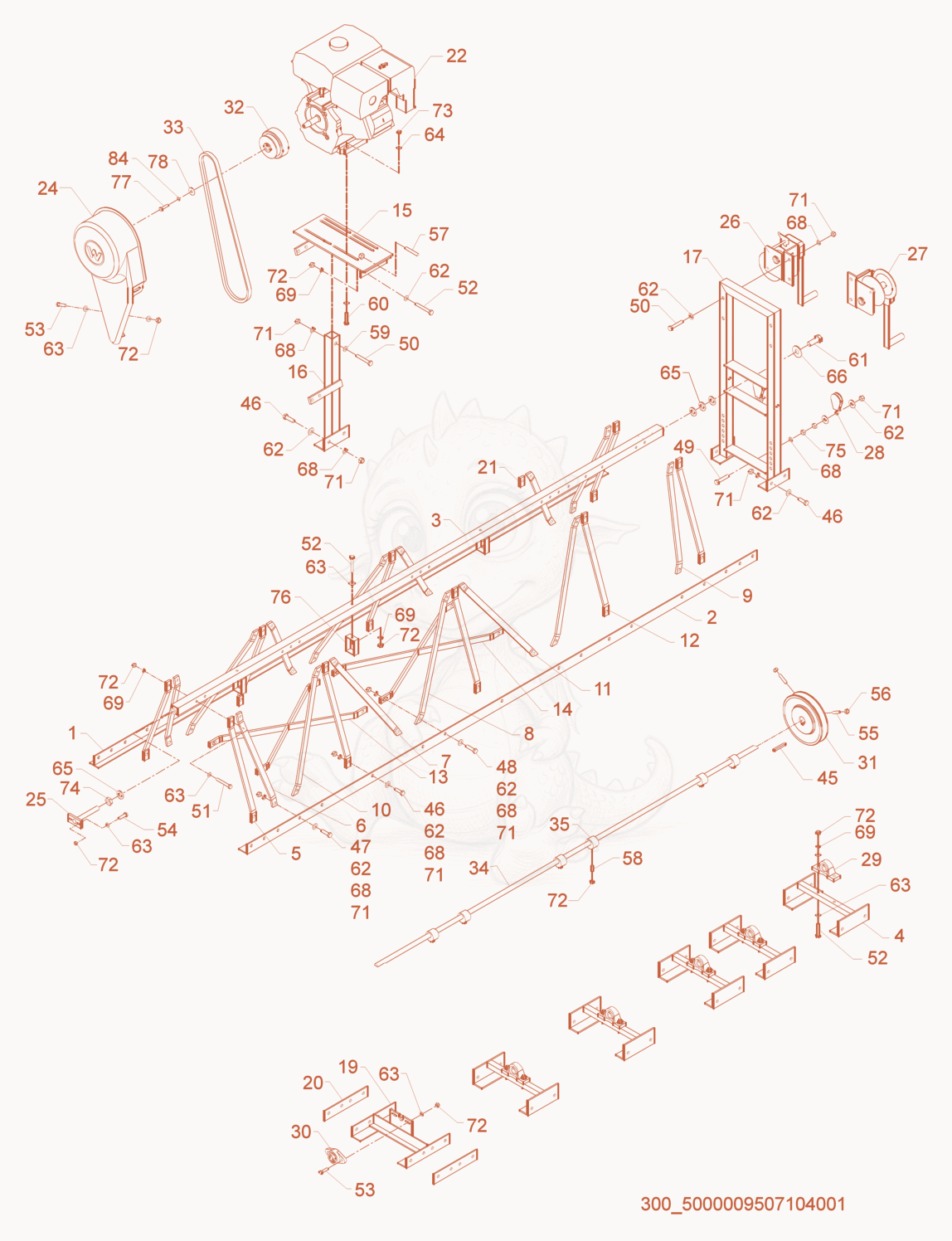

Exploded parts diagram of the Truss Screed Components of a Wacker Neuson HPG100A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000116383Not stocked
    T-blade×1
  • 25000116386
    $268.28
    BLADE-L, 10 FT.,ENGINE - 5000116386×1
  • 35000130201
    $568.80
    ASM_Tube,Top HP100 - 5000130201×1
  • 45000116397
    $88.89
    ASM_Bracket-Bearing - 5000116397×5
  • 55000116413
    $37.65
    STRUT-STRAIGHT,19-3/8 - 5000116413×8
  • 65000116414
    $37.63
    STRUT-ANGLE,19-1/2 (L.H. SIDE) - 5000116414×2
  • 75000116415
    $41.12
    STRUT-ANGLE,22-3/8 (L.H.SIDE) - 5000116415×4
  • 85000116416
    $42.02
    STRUT-ANGLE,23-3/8 (L.H.SIDE) - 5000116416×2
  • 95000117585
    $56.78
    STRUT-ANGLE,19-1/2(R.H.SIDE) - 5000117585×2
  • 105000117586
    $41.12
    STRUT-ANGLE,22-3/8 (R.H.SIDE) - 5000117586×4
  • 115000117587
    $42.02
    STRUT-ANGLE,23-3/8 (R.H.SIDE) - 5000117587×2
  • 125000117588
    $31.87
    STRUT-MOTOR - 5000117588×1
  • 135000116388
    $149.05
    BRACE-CROSS,OUTER - 5000116388×2
  • 145000116389
    $152.25
    BRACE-CROSS,INNER - 5000116389×1
  • 155000130174
    $193.34
    MOUNT-ENGINE UPPER ASSY,HP100 - 5000130174×1
  • 165000130241
    $187.47
    ASM_Mount-Engine lower HP100 - 5000130241×1
  • 175000130192
    $579.60
    ASM_Frame-Handle - 5000130192×1
  • 195000116398
    $217.11
    ASM_Bracket-Connector - 5000116398×1
  • 205000116399
    $49.29
    PLATE-CONNECTOR - 5000116399×2
  • 215000117159
    $6.96
    Shim - 5000117159×1
  • 225000112134
    $1,452.75
    ENGINE HONDA GX240UT2X QA2 - 5000112134×1
  • 245100067732Not stocked
    SCREED BELTGUARD×1
  • 255000116407
    $21.37
    BOLT-T,COARSE THD. - 5000116407×1
  • 285000116409
    $69.88
    PULLEY-CABLE - 5000116409×2
  • 295000116402
    $62.74
    BEARING-PILLOW BLOCK,3/4 - 5000116402×5
  • 305000116403
    $38.47
    BEARING-CONNECTOR - 5000116403×1
  • 315000130440
    $77.94
    PULLEY-ENGINE SHEAVE - 5000130440×1
  • 325000116392
    $376.08
    CLUTCH - 5000116392×1
  • 335000116395
    $27.39
    DURAFLEX GL 5L-550 - 5000116395×1
  • 345000130442
    $247.39
    SHAFT-10 FT. W/SLOT - 5000130442×1
  • 355000116396
    $25.31
    WEIGHT-ECCENTRIC - 5000116396×7
  • 455000130441
    $13.24
    KEY--SCREED SHAFT - 5000130441×1
  • 465000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×25
  • 475000011300
    $0.93
    SCREW M12 X 45 HX.HD. - 5000011300×5
  • 485000088817
    $0.63
    SCREW M12 X 60 HX.HD. - 5000088817×14
  • 505000011306
    $1.00
    SCREW M12 X 75 HX.HD - 5000011306×5
  • 515000011325
    $1.01
    SCREW M10 X 75 HX.HD. - 5000011325×13
  • 525000011322
    $0.53
    SCREW M10 X 60 HX.HD. - 5000011322×15
  • 535000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×11
  • 545000011438
    $0.58
    SCREW M10 X 35 HX.HD. - 5000011438×2
  • 555000130667
    $0.81
    SCREW-SOCKET SET M6 X 25 - 5000130667×2
  • 565000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 575000130669
    $6.12
    SCREW-SOCKET SET M10 X 60 - 5000130669×1
  • 605000011342
    $0.42
    SCREW M8 X 45 HX.HD. - 5000011342×4
  • 615000116451
    $10.99
    SCREW 3/4-16 X 2,HX.HD. - 5000116451×1
  • 625000010620
    $0.26
    WASHER B13 FLAT - 5000010620×60
  • 635000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×44
  • 645000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×8
  • 655000010616
    $2.02
    WASHER B21 FLAT - 5000010616×2
  • 665000116457
    $1.52
    WASHER 3/4-2 OD - 5000116457×1
  • 685000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×49
  • 695000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×30
  • 715000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×49
  • 725000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×34
  • 735000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 745000116449
    $0.47
    NUT-JAM,COARSE THD. - 5000116449×1
  • 755000010884
    $0.26
    NUT M12 8,HEX - 5000010884×4
  • 765000130187
    $69.09
    GUIDE-CABLE - 5000130187×3
  • 775000130668
    $1.66
    SCREW 7/16-20UNF X 1,HX HD,CAP,GR5,A2K - 5000130668×1
  • 785000114766
    $6.50
    WASHER .531X 1.625X.120,FLAT - 5000114766×1
  • 845000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×1
