HPG100A

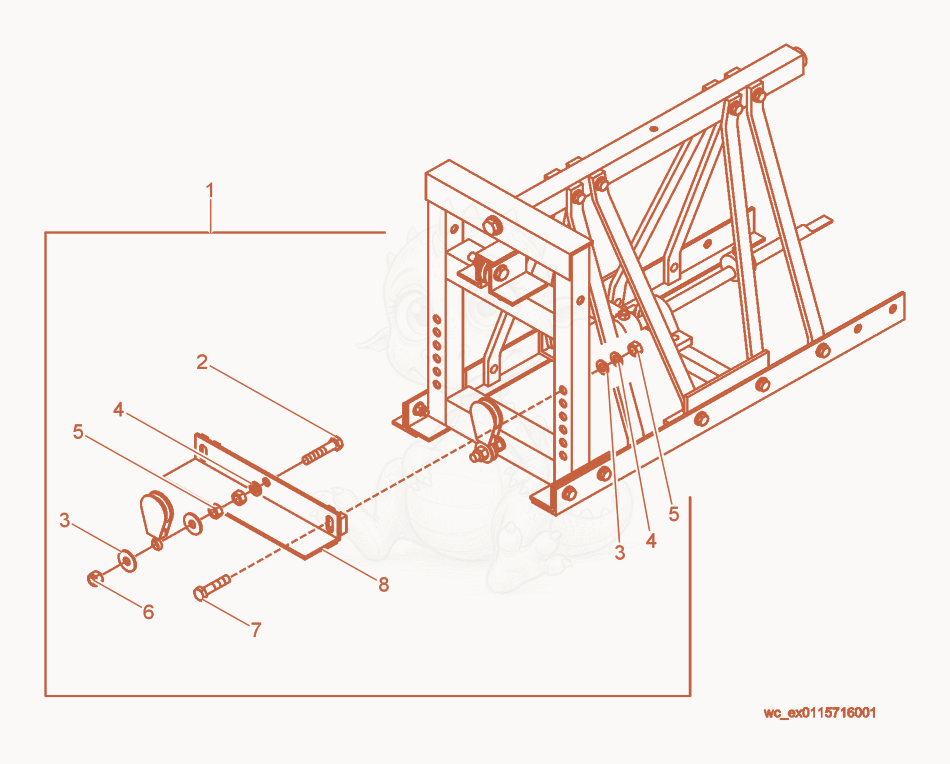

HPG100A Wall Slider Kit Diagram

Exploded parts diagram of the Wall Slider Kit of a Wacker Neuson HPG100A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000115716Not stocked
    Wall slider×1
  • 25000025690
    $1.17
    SCREW 1/2-13 X 2-1/2,HX.HD. - 5000025690×1
  • 35000116456
    $9.25
    WASHER 1/2,FLAT - 5000116456×4
  • 45000025650
    $0.50
    WASHER-LOCK 1/2,MED. - 5000025650×3
  • 55000025619
    $0.13
    NUT 1/2-13,HEX. - 5000025619×4
  • 65000025724
    $0.35
    NUT-LOCK 1/2-13,HEX,NYLON - 5000025724×1
  • 75000117545
    $0.47
    SCREW 1/2-13 X 3,HX HD - 5000117545×2
  • 85000117383
    $78.75
    BRACKET-WALL SLIDER,HD - 5000117383×1
