HX200 Heat Exchanger

HX200 Wiring cpl. Diagram

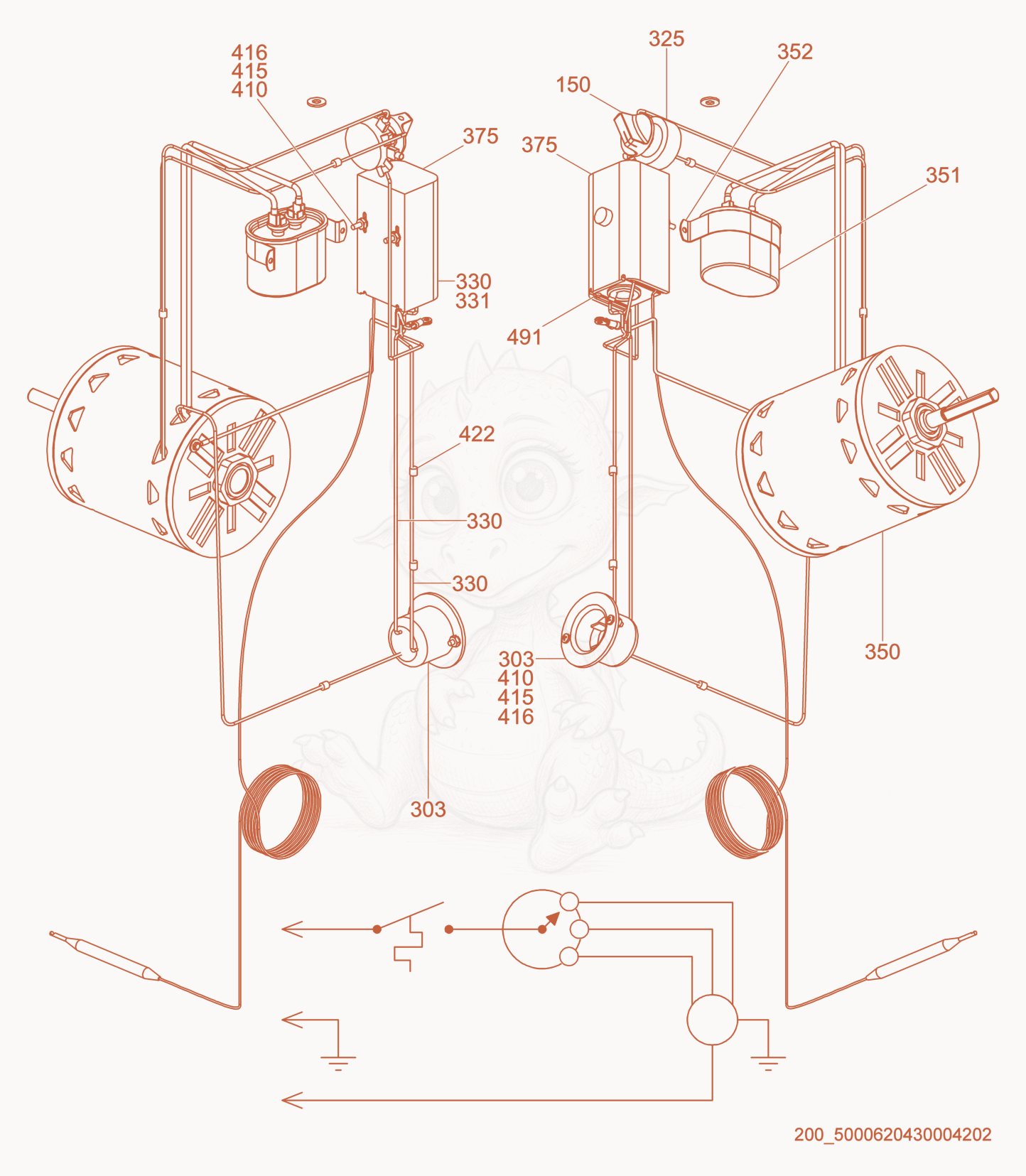

Exploded parts diagram of the Wiring cpl. of a Wacker Neuson HX200, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1505000168533Not stocked
    Knob×1
  • 3035000166671Not stocked
    Plug×1
  • 3255000166670Not stocked
    Switch×1
  • 3305000166511Not stocked
    Terminal×4
  • 3315000166597Not stocked
    Terminal×8
  • 3505000166853Not stocked
    Blower×1
  • 3515000168531Not stocked
    Capacitor×1
  • 3525000168534Not stocked
    Mounting strap×1
  • 3755000168622Not stocked
    Thermostat×1
  • 4105000167898Not stocked
    Screw×2
  • 4155000167846Not stocked
    Nut×2
  • 4165000167921Not stocked
    Washer-lock×2
  • 4225000167725Not stocked
    Cable tie×5
  • 4915000168769Not stocked
    Grommet×1
