HX200 Heat Exchanger

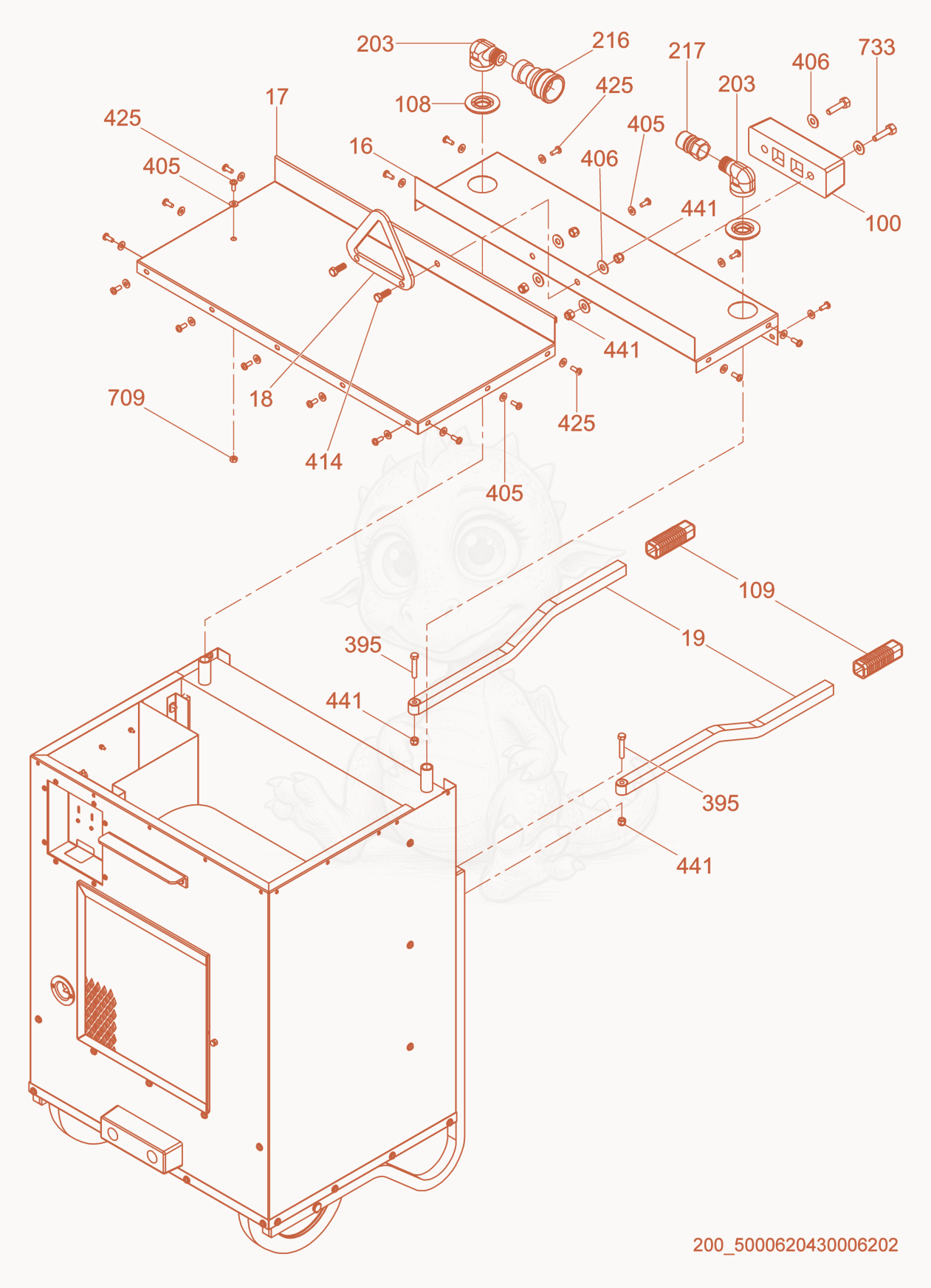

HX200 Lifting Device Diagram

Exploded parts diagram of the Lifting Device of a Wacker Neuson HX200, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 165000182968Not stocked
    Top rear panel×1
  • 175000182970Not stocked
    Top front panel×1
  • 185000182977Not stocked
    Bracket×1
  • 195000169620Not stocked
    Handle×2
  • 1005000168530Not stocked
    Bumper×1
  • 1085000168625Not stocked
    Grommet×2
  • 1095000168538Not stocked
    Handle grip×2
  • 2035000168029Not stocked
    Elbow×2
  • 2165000168213Not stocked
    Quick disconnect coupling×1
  • 2175000168214Not stocked
    Quick disconnect coupling×1
  • 3955000167751Not stocked
    Bolt×2
  • 4055000167892Not stocked
    Bolt×20
  • 4065000167891Not stocked
    Washer-flat×6
  • 4145000167705Not stocked
    Bolt×2
  • 4255000167729Not stocked
    Flat washer×20
  • 4415000167778Not stocked
    Nut×6
  • 7095000167767Not stocked
    Nut×1
  • 7335000167750Not stocked
    Bolt×2
