LTG14

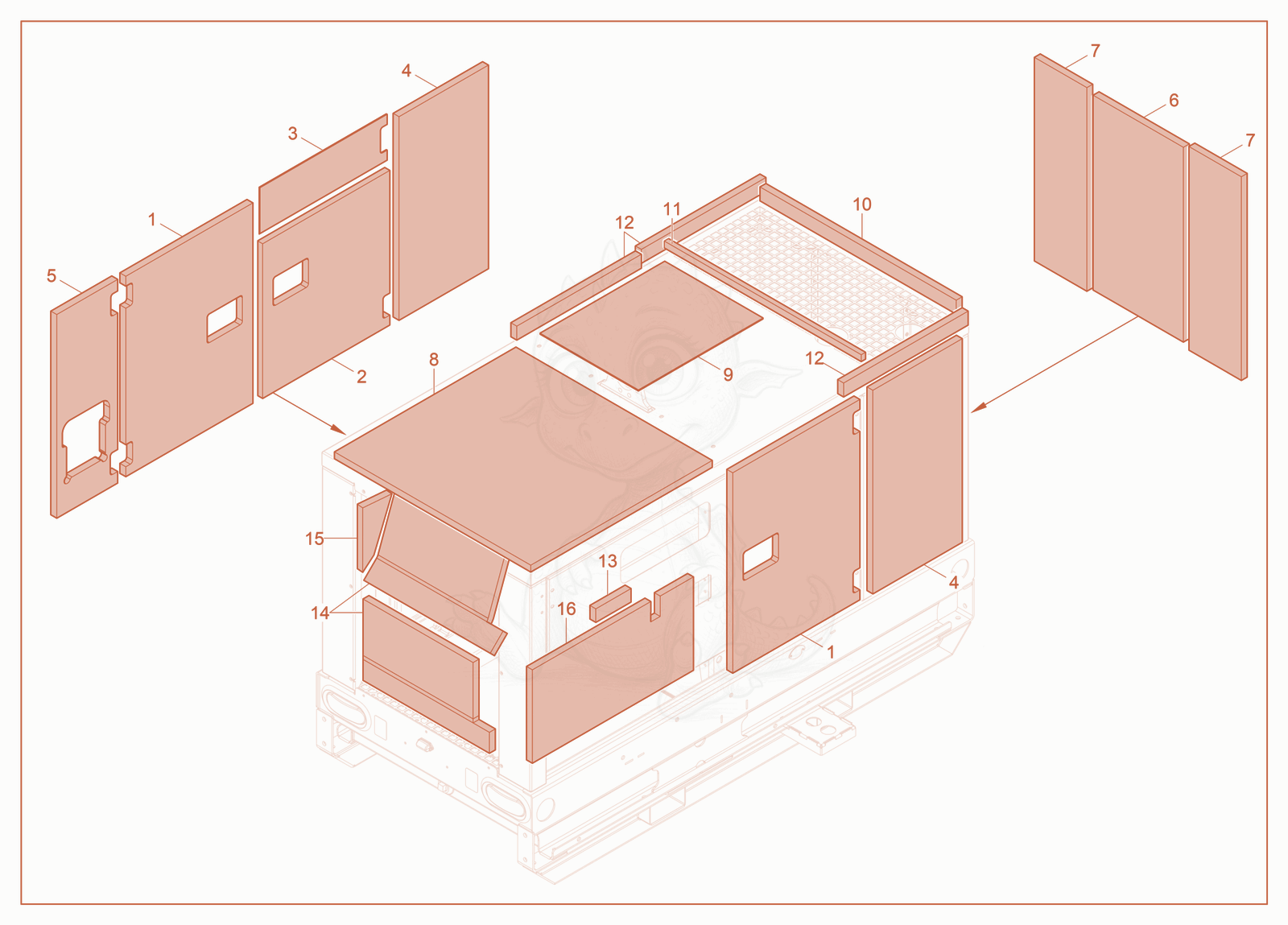

LTG14 Insulating Mat Diagram

Exploded parts diagram of the Insulating Mat of a Wacker Neuson LTG14, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100056817
    $72.19
    INSULATOR-DOOR,COMMON,G25-35 - 5100056817×2
  • 25100061831
    $56.00
    INSULATOR-DOOR,LOWER,G25-35 - 5100061831×1
  • 35100061828
    $31.70
    INSULATOR-DOOR,EXHAUST,G25-35 - 5100061828×1
  • 45100056884
    $59.37
    INSULATOR-EXH COMP,SIDE - 5100056884×2
  • 55100056883
    $36.56
    INSULATOR-CORNER,FUEL FILL - 5100056883×1
  • 65100056885
    $32.51
    INSULATOR-EXH COMP FRT ACCESS - 5100056885×1
  • 75100056886
    $28.00
    INSULATOR-EXH COMP,SIDE FRONT - 5100056886×2
  • 85100056894
    $159.94
    INSULATOR-ROOF,REAR - 5100056894×1
  • 95100061844
    $52.86
    INSULATOR-ROOF,EXHAUST - 5100061844×1
  • 105100056907
    $8.43
    INSULATOR-ROOF,CHANNEL,WIDTH - 5100056907×1
  • 115100056882
    $3.34
    INSULATOR-BULKHEAD,SML - 5100056882×1
  • 125100056943
    $7.54
    INSULATOR-ROOF,CHANNEL,LENGTH - 5100056943×3
  • 135000164245
    $1.52
    INSULATOR-CONTROL DOOR,PROP - 5000164245×1
  • 145100056880
    $16.74
    INSULATOR-DUCT,REAR - 5100056880×2
  • 155100056818
    $4.39
    INSULATOR-DUCT,REAR,LH - 5100056818×1
  • 165100058020Not stocked
    Insulator-control box×1
