LTG14

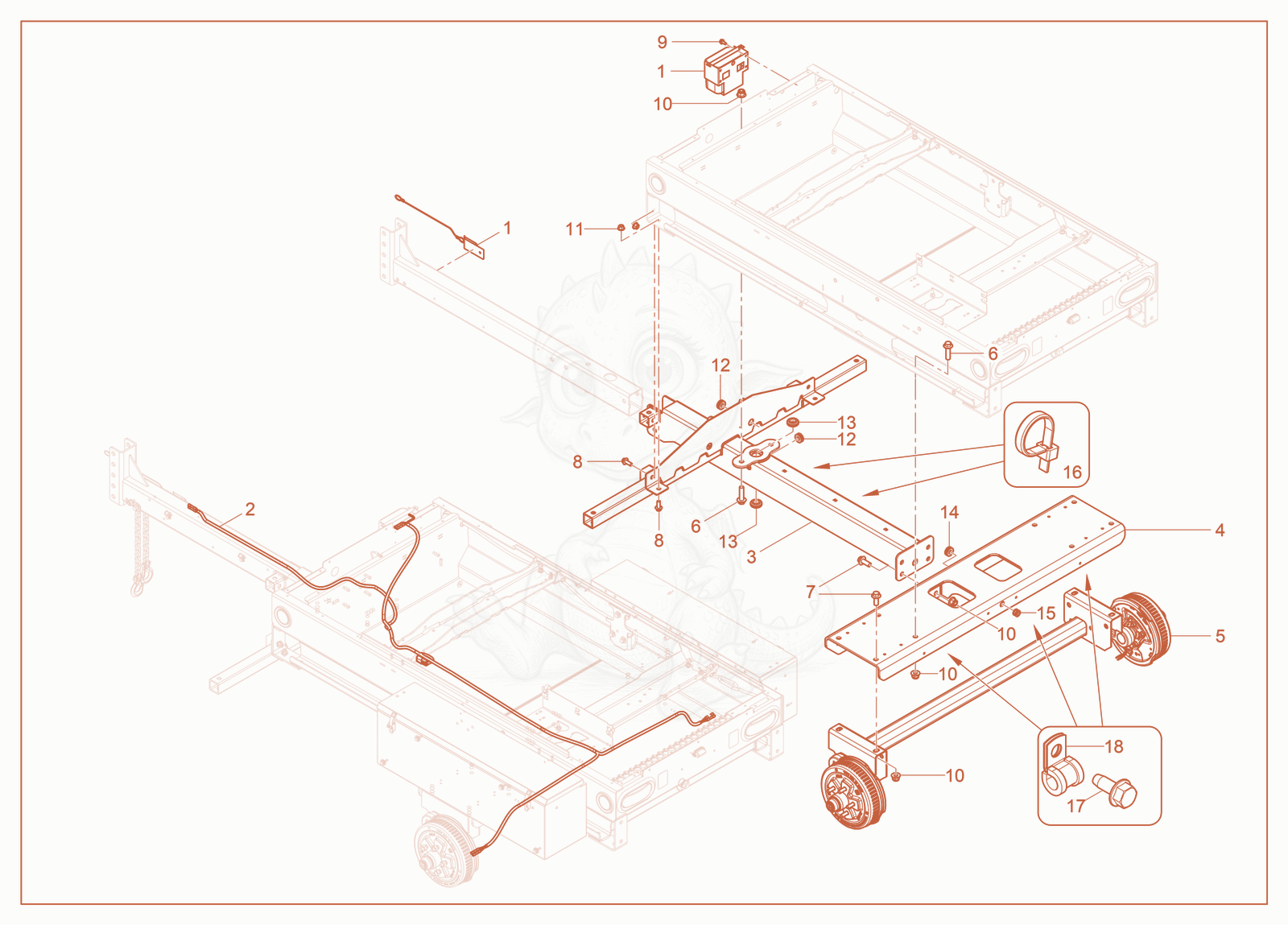

LTG14 Electric Brake Diagram

Exploded parts diagram of the Electric Brake of a Wacker Neuson LTG14, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100034437Not stocked
    Breakaway kit×1
  • 25100084618Not stocked
    HARNESS TRAILER EB×1
  • 35100064987
    $883.65
    WELDMENT TRAILER TONGUE - 5100064987×1
  • 45100064985
    $761.63
    WELDMENT TRAILER CROSSRAIL - 5100064985×1
  • 55100065010
    $1,454.20
    ELECTRIC BRAKE TORSION AXLE - 5100065010×1
  • 61000343275Not stocked
    Bolt×6
  • 75100073428Not stocked
    Flange screw×4
  • 85100054261
    $0.04
    SCREW-M12x30-HEX.FLG.HD-10.9-ZNC - 5100054261×4
  • 95100061319
    $1.69
    SCREW-M6x20,THD.FRM,HEX.FLG-MAG565 - 5100061319×4
  • 105100060498
    $1.09
    NUT-M16-HEX.FLG.NYLOC-8-ZNC - 5100060498×9
  • 111000343305
    $0.73
    NUT M12 FLANGED 10 ZINC - 1000343305×4
  • 125100069274
    $0.89
    GROMMET 12.7 ID 6.4 THK 27 OD - 5100069274×4
  • 135100071248
    $1.69
    GROMMET 1IN ID 3/16IN THK 1.375IN OD - 5100071248×2
  • 145000180755
    $15.88
    GROMMET-1/2 IDX1-1/16 ODX1/4 - 5000180755×1
  • 155100071280
    $1.27
    GROMMET 12.5 ID 9.5 THK 19.05 OD - 5100071280×1
  • 161000094905
    $0.10
    cable ties 280x4,8mm - 1000094905×3
  • 175100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×5
  • 181000385208
    $0.67
    P-CLIP 1/2" VINYL COAT - 1000385208×7
