LTS4K - 50 HZ, LED, Trailer

LTS4K Skid Assembly Diagram

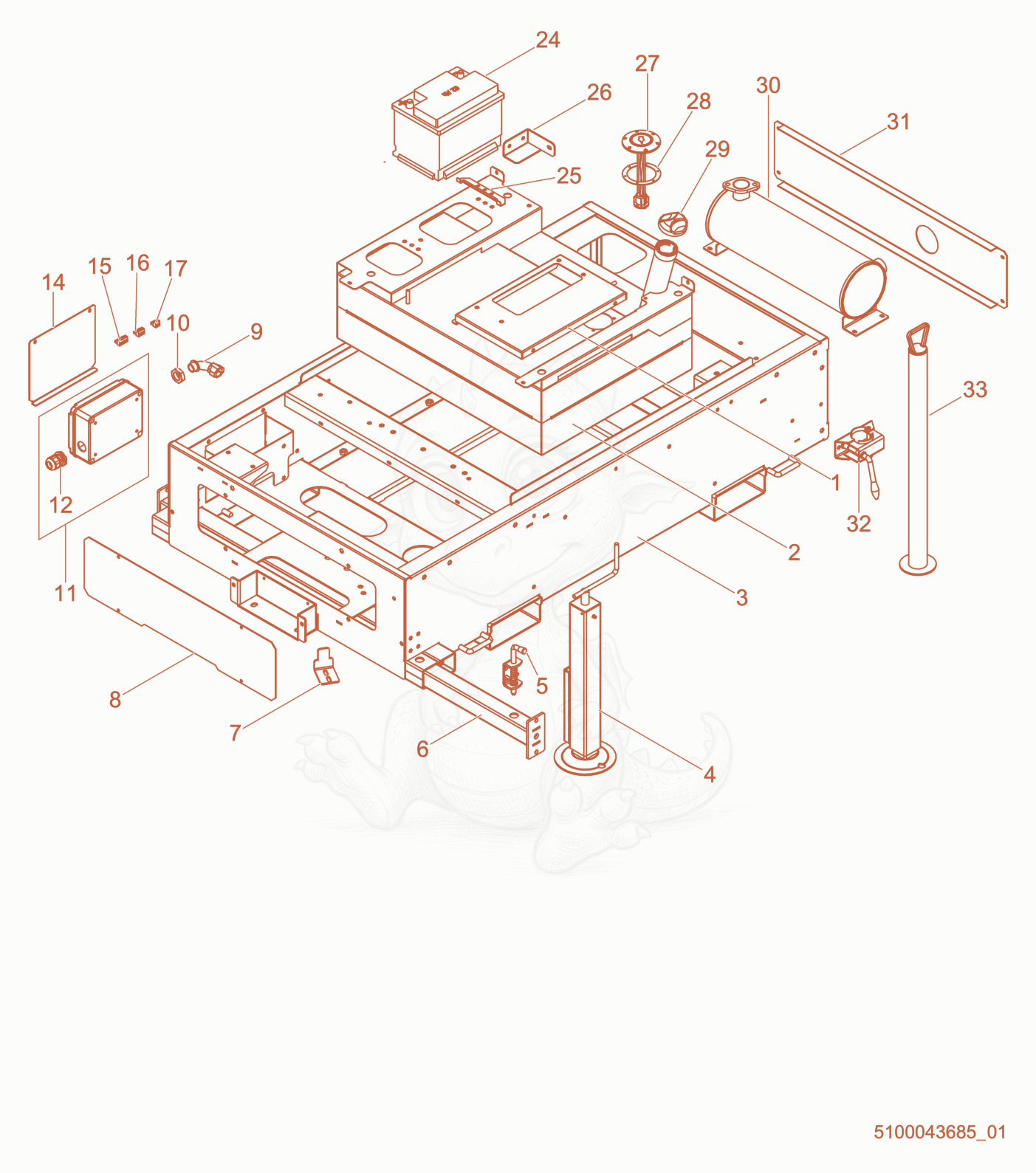

Exploded parts diagram of the Skid Assembly of a Wacker Neuson LTS4K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100040858Not stocked
    Control panel bracket×1
  • 25100040863Not stocked
    Fuel tank×1
  • 35100042664Not stocked
    Frame cpl.×1
  • 45100042650Not stocked
    Support-adjustable×2
  • 55100040676Not stocked
    Locking pin×2
  • 65100040675Not stocked
    Tube×2
  • 75100040677Not stocked
    Plate×1
  • 85100040844Not stocked
    Front cover×1
  • 95100040857Not stocked
    Elbow fitting×1
  • 105100041051Not stocked
    Nut×1
  • 115100043762Not stocked
    Junction box×1
  • 125100040791Not stocked
    Cord grip×1
  • 145100040853Not stocked
    Junction box, Cover×1
  • 155100040996Not stocked
    Connector housing, 2 pole×1
  • 165100041052Not stocked
    Connector housing, 3 pole×1
  • 175100041024Not stocked
    Connector housing, 5 pole×1
  • 245100040860Not stocked
    Battery×1
  • 255100040859Not stocked
    Battery holder×2
  • 265100042665Not stocked
    Bracket×2
  • 275100040861Not stocked
    Fuel level gauge×1
  • 285100040862Not stocked
    Gasket×1
  • 295100040864Not stocked
    Fuel tank cap×1
  • 305100040851Not stocked
    Muffler×1
  • 315100040852Not stocked
    Rear cover×1
  • 325100040837Not stocked
    Clamp×2
  • 335100043552Not stocked
    Stabilizer×2
