LTS4K - 50 HZ, LED, Trailer

LTS4K Engine support Diagram

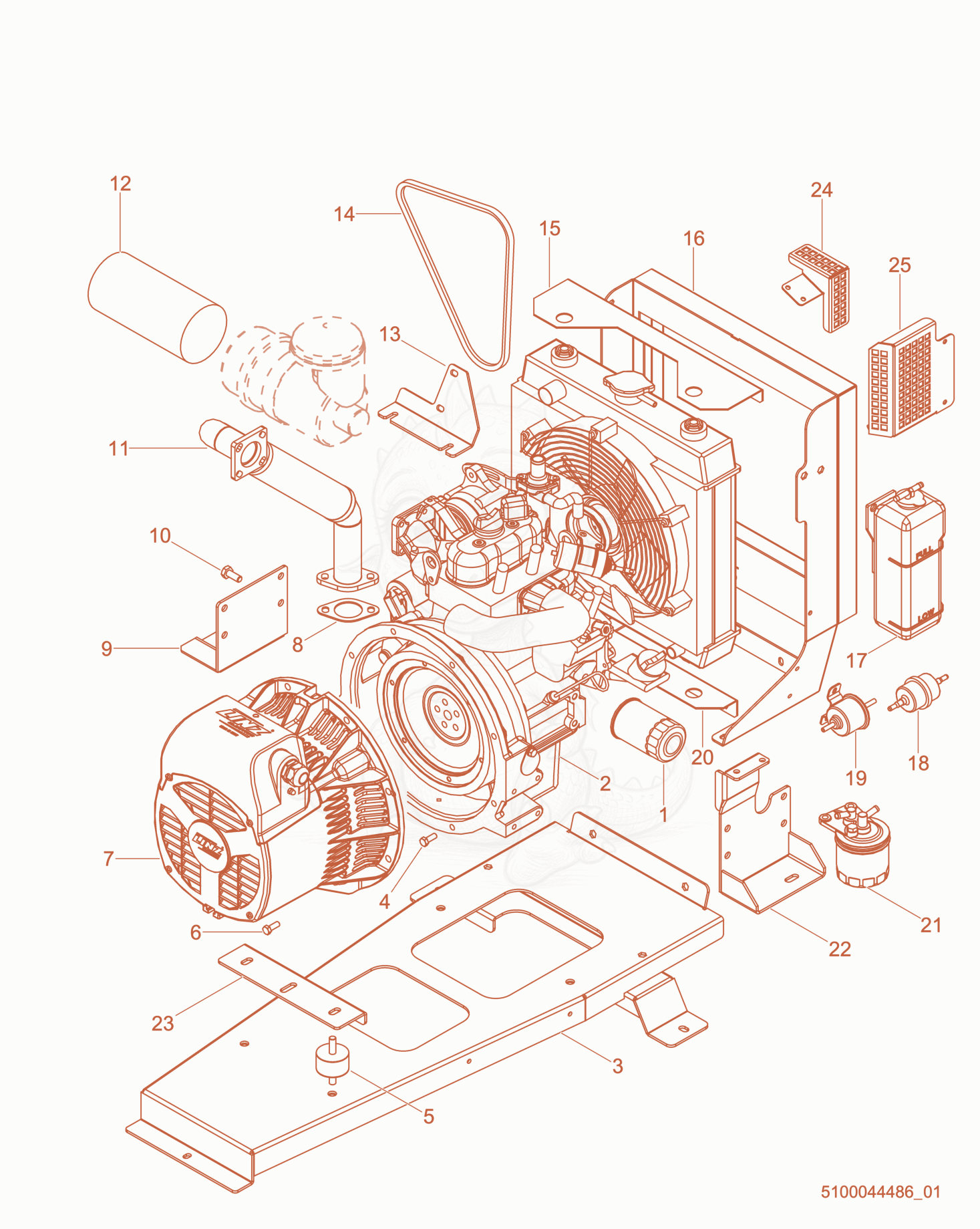

Exploded parts diagram of the Engine support of a Wacker Neuson LTS4K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100044287Not stocked
    Oil filter×1
  • 25100043759Not stocked
    Engine-Kubota×1
  • 35100044365Not stocked
    Generator/engine support×1
  • 45100041131Not stocked
    Screw×6
  • 55100040930Not stocked
    Shock absorber×1
  • 65100040369Not stocked
    Screw×8
  • 75100041130Not stocked
    Generator×1
  • 85100041067Not stocked
    Muffler gasket×1
  • 95100042712Not stocked
    Engine bracket×1
  • 105100041134Not stocked
    Screw×8
  • 115100044366Not stocked
    Extension, Muffler×1
  • 125100041136Not stocked
    Air filter element×1
  • 135100041137Not stocked
    Bracket×1
  • 145100041138Not stocked
    Fan belt×1
  • 155100044367Not stocked
    Radiator bracket×1
  • 165100044368Not stocked
    Radiator bracket×1
  • 175100041142Not stocked
    Overflow bottle×1
  • 185100041144Not stocked
    Prefilter×1
  • 195100040970Not stocked
    Electric pump×1
  • 205100044369Not stocked
    Radiator bracket×1
  • 211000004614Not stocked
    Fuel filter cartridge×1
  • 225100042713Not stocked
    Engine bracket×1
  • 235100044470Not stocked
    Generator/engine support×1
  • 245100044471Not stocked
    Cover×1
  • 255100044472Not stocked
    Cover×1
