LTS4Y

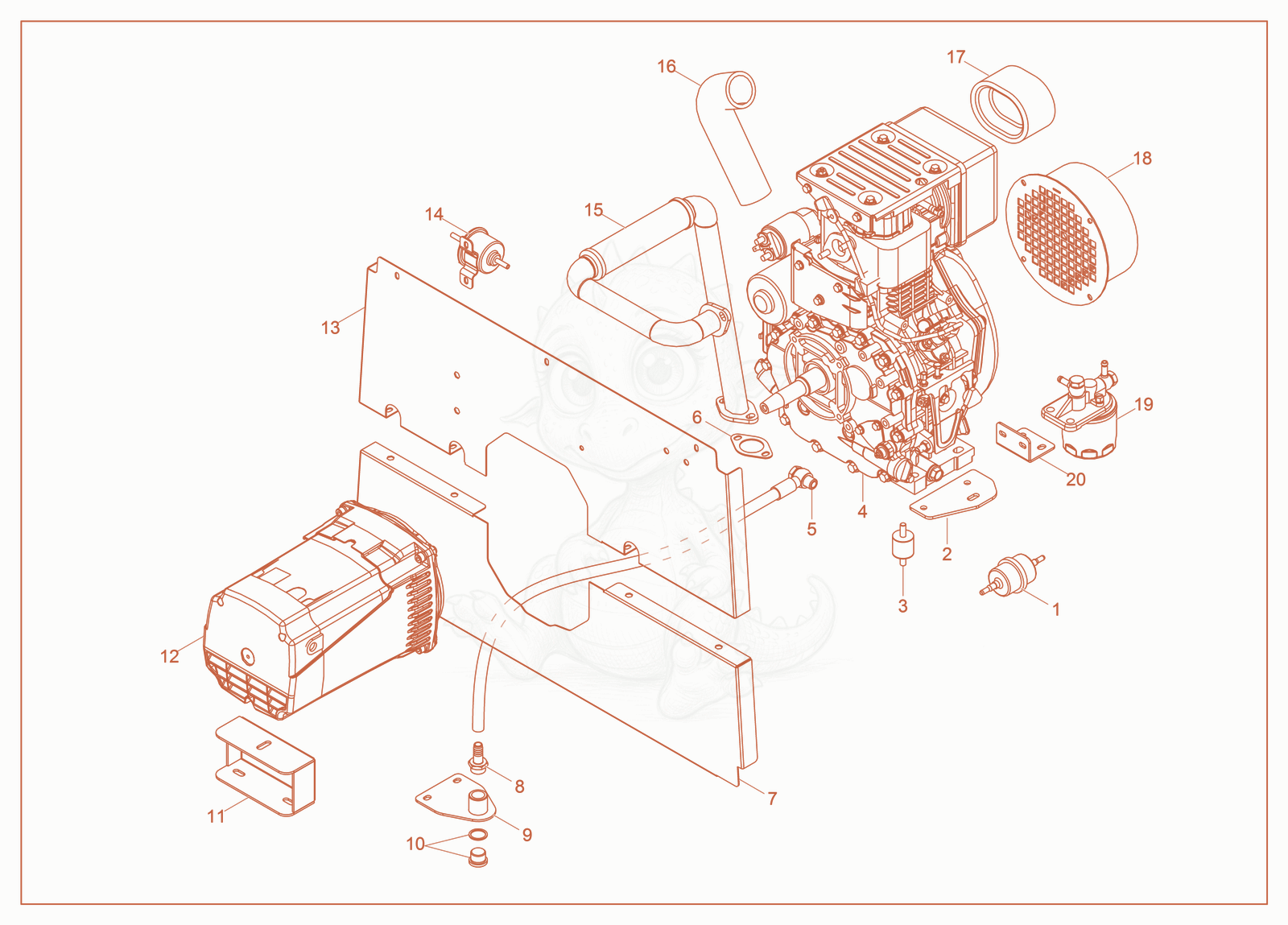

LTS4Y Engine Support Diagram

Exploded parts diagram of the Engine Support of a Wacker Neuson LTS4Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100041144Not stocked
    Prefilter×1
  • 25100064814Not stocked
    Engine support×1
  • 35100064815Not stocked
    SHOCK ABSORBER×1
  • 45100064816Not stocked
    ENGINE YANMAR×1
  • 55100064817Not stocked
    OIL PIPE×4
  • 65100064818Not stocked
    EXHAUST GASKET×1
  • 75100064819Not stocked
    Panel×1
  • 85100064780Not stocked
    Pipe Fitting×1
  • 95100064779Not stocked
    Bracket×1
  • 105100064778Not stocked
    Oil Drain Kit×1
  • 115100064820Not stocked
    Generator support×1
  • 125100064821Not stocked
    Generator×1
  • 135100064822Not stocked
    Panel, Upper×1
  • 145100064823Not stocked
    AC Fuel Pump×1
  • 155100086429Not stocked
    MUFFLER EXTENSION×8
  • 165100064825Not stocked
    Sleeve×1
  • 175100064826Not stocked
    AIR FILTER CARTRIDGE×1
  • 185100064827Not stocked
    FAN PROTECTION×1
  • 195100071380Not stocked
    Fuel filter cartridge×1
  • 205100064829Not stocked
    Fuel Filter Bracket×1
