LTS4Y

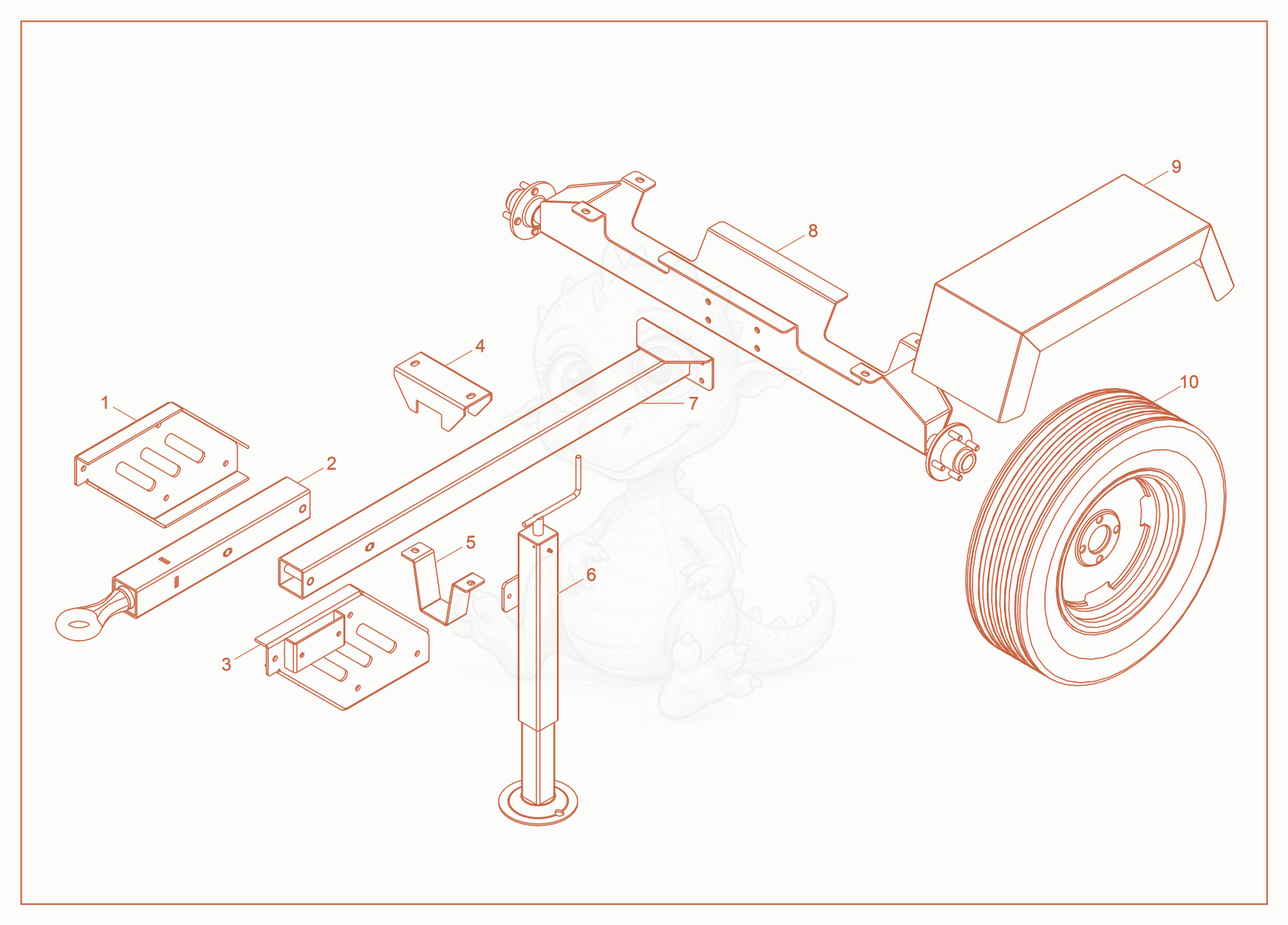

LTS4Y Front Jack/Wheel Kit Diagram

Exploded parts diagram of the Front Jack/Wheel Kit of a Wacker Neuson LTS4Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100064785Not stocked
    Bracket, left×1
  • 25100064787Not stocked
    Hitch, upper×1
  • 35100064788Not stocked
    Bracket, right×1
  • 45100040835Not stocked
    Bracket×1
  • 55100040842Not stocked
    Bracket×1
  • 65100042548Not stocked
    Jack×2
  • 75100064789Not stocked
    Hitch, lower×1
  • 85100040834Not stocked
    Axle×1
  • 95100042549Not stocked
    Fender×1
  • 105100040836Not stocked
    Wheel×1
