LTS8K

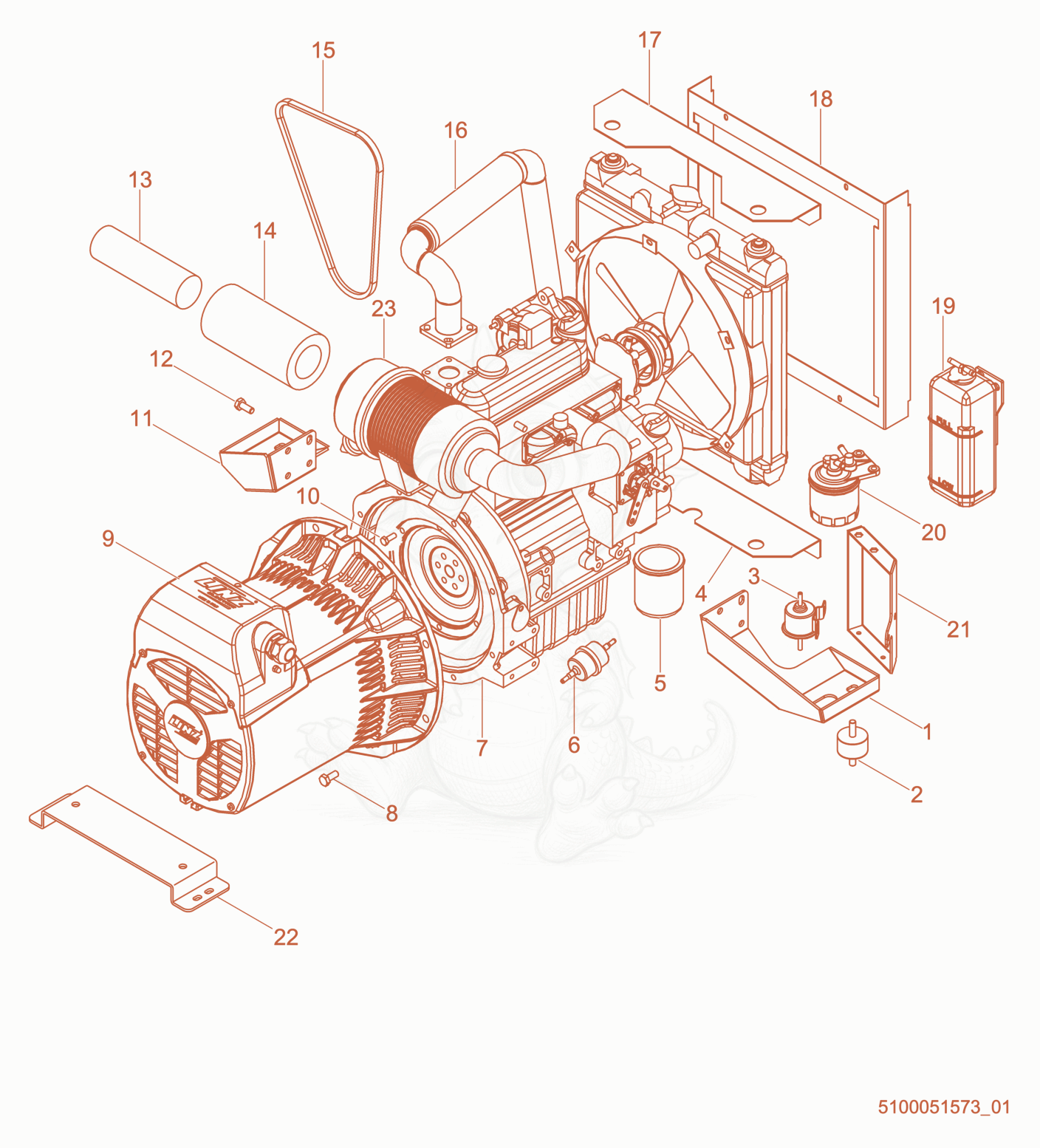

LTS8K Engine support Diagram

Exploded parts diagram of the Engine support of a Wacker Neuson LTS8K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100040929Not stocked
    Right engine support×1
  • 25100040930Not stocked
    Shock absorber×1
  • 35100040970Not stocked
    Electric pump×1
  • 45100043622Not stocked
    Bottom support bracket×1
  • 55100043621Not stocked
    Oil filter×1
  • 65100041144Not stocked
    Prefilter×1
  • 75100043620Not stocked
    Engine-Kubota×1
  • 85100040369Not stocked
    Screw×8
  • 95100051261
    $1,677.41
    Generator - 5100051261×1
  • 105100041131Not stocked
    Screw×6
  • 115100040978Not stocked
    Left engine support×1
  • 125100041134Not stocked
    Screw×8
  • 135100040984Not stocked
    Prefilter element×1
  • 145100040977Not stocked
    Air filter element×1
  • 151000004612
    $19.23
    V-Belt - 1000004612×1
  • 165100040976Not stocked
    Exhaust pipe×1
  • 175100044474Not stocked
    Radiator bracket×1
  • 185100040974Not stocked
    Radiator shroud×1
  • 195100043623Not stocked
    Overflow bottle×1
  • 201000004614Not stocked
    Fuel filter cartridge×1
  • 215100040971Not stocked
    Pump/Filter bracket×1
  • 225100051260
    $47.93
    Generator/engine support - Kubota - 5100051260×1
  • 235100060328Not stocked
    Air filter cpl.×1
