LTS8K

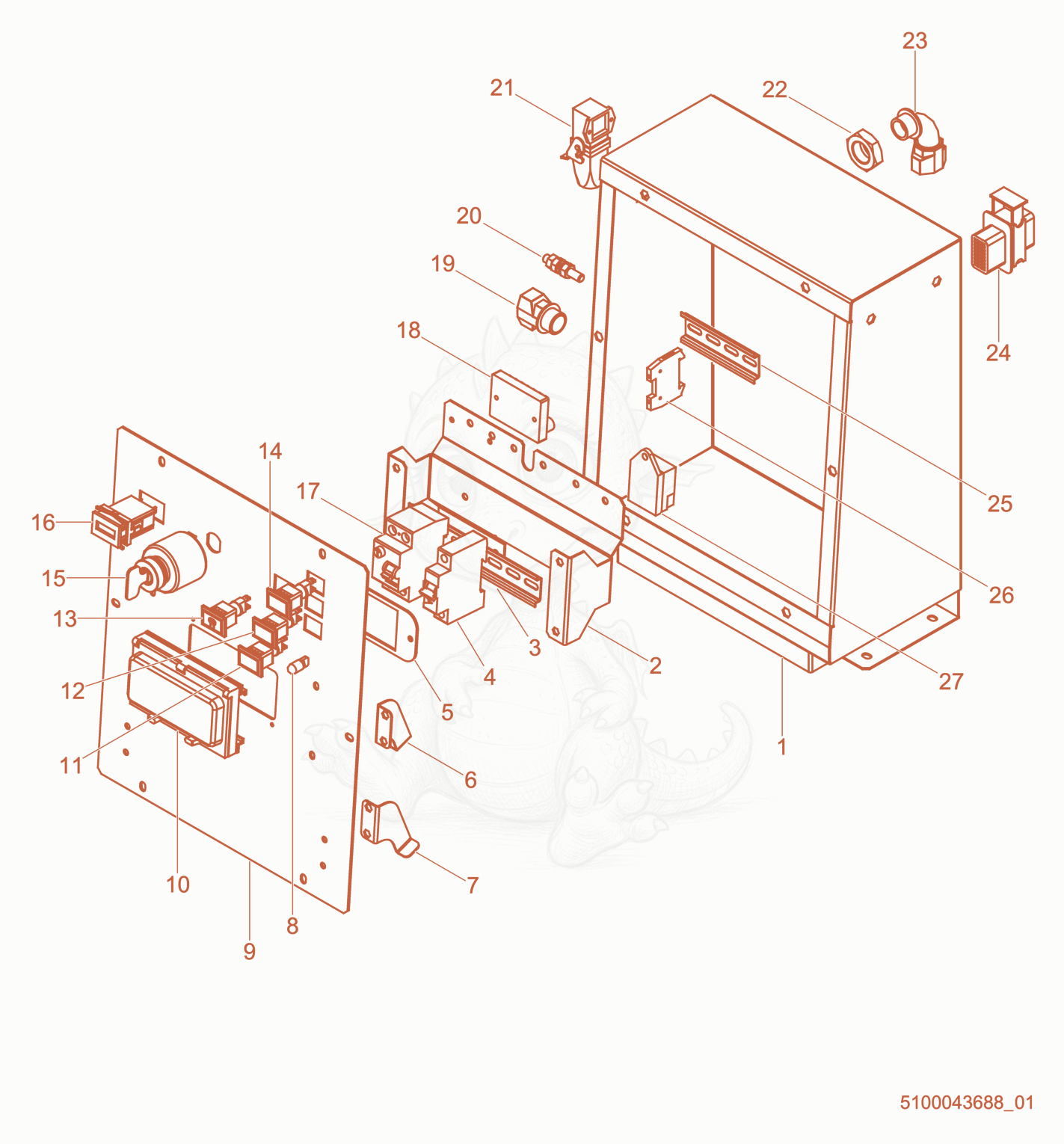

LTS8K Control Panel 2 Diagram

Exploded parts diagram of the Control Panel 2 of a Wacker Neuson LTS8K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100043611Not stocked
    Control panel enclosure×1
  • 25100043612Not stocked
    Breaker support×1
  • 35100040952Not stocked
    Din bar×1
  • 45100041190Not stocked
    Circuit breaker×1
  • 55100043613Not stocked
    Frame×1
  • 65100041169Not stocked
    Lock plate (left)×1
  • 75100041162Not stocked
    Lock plate (right)×1
  • 85100040966Not stocked
    Bulb×1
  • 95100043614Not stocked
    Front panel×1
  • 105100040967Not stocked
    Cover×1
  • 115100040964Not stocked
    Warning Light, Oil pressure×1
  • 125100040963Not stocked
    Warning Light, Coolant×1
  • 135100040961Not stocked
    Glow plug light×1
  • 145100040962Not stocked
    Battery charger warning light×1
  • 155000179487
    $118.56
    SWITCH-IGNITION - 5000179487×1
  • 165100040965Not stocked
    Hour meter×1
  • 175100040950Not stocked
    Circuit breaker×1
  • 185100040959Not stocked
    Cover×1
  • 195100040955Not stocked
    Cord grip×1
  • 205100041175Not stocked
    Cable clip, grounding×1
  • 215100041185Not stocked
    Connector×1
  • 225100041051Not stocked
    Nut×1
  • 235100040857Not stocked
    Elbow fitting×1
  • 245100040954Not stocked
    Connector housing, 24 pole, plug×1
  • 255100040956Not stocked
    Din bar×1
  • 265100040957Not stocked
    Terminal×1
  • 271000003461Not stocked
    Time relay×1
