LTT4

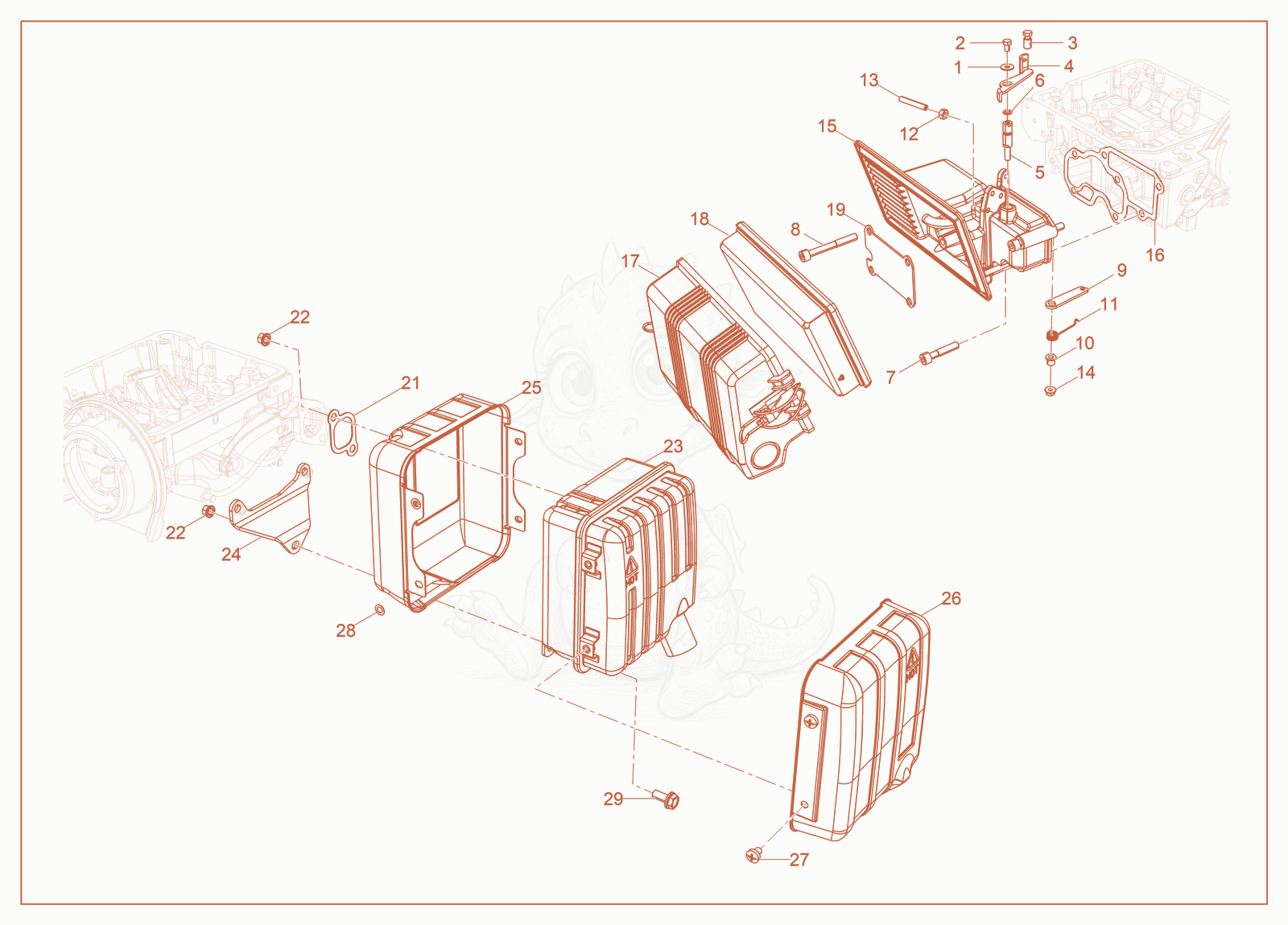

LTT4 Air Cleaner / Muffler Diagram
- WASHER - 5200009524×1
- BOLT - 5200009525×1
- CONNECTOR - 5000203352×1
- lever - 5000160214×1
- PIN - Throttle - 5200009526×1
- O-RING - 5000159230×1
- SCREW M8 X 35 - 5000083026×2
- SCREW M8 X 65 - 5000084170×5
- LEVER-INTERNAL - 5000215504×1
- Sleeve - 5000215481×1
- Spring - 5000215508×1
- nut - 5000159272×1
- Hose - 5100076325×1
- Nut - 5000084232×1
- MANIFOLD-AIR FILTER SUPPORT - 5100072363×1
- Gasket - 5100026410×1
- Air filter cover - 5100076326×1
- AIR CLEANER CARTRIDGE - 5000155678×1
- PLATE - 5100062180×1
- Seal - 5100076329×1
- Nut - 5000206130×3
- Muffler - 5000103797×1
- Bracket - 5100076330×1
- MUFFLER GUARD - 5100062181×1
- Guard - 5100076331×1
- Screw - 5000206131×4
- Washer - 5000206132×4
- BOLT M8 - 5000215693×1
