LTT4

LTT4 Control Box Diagram

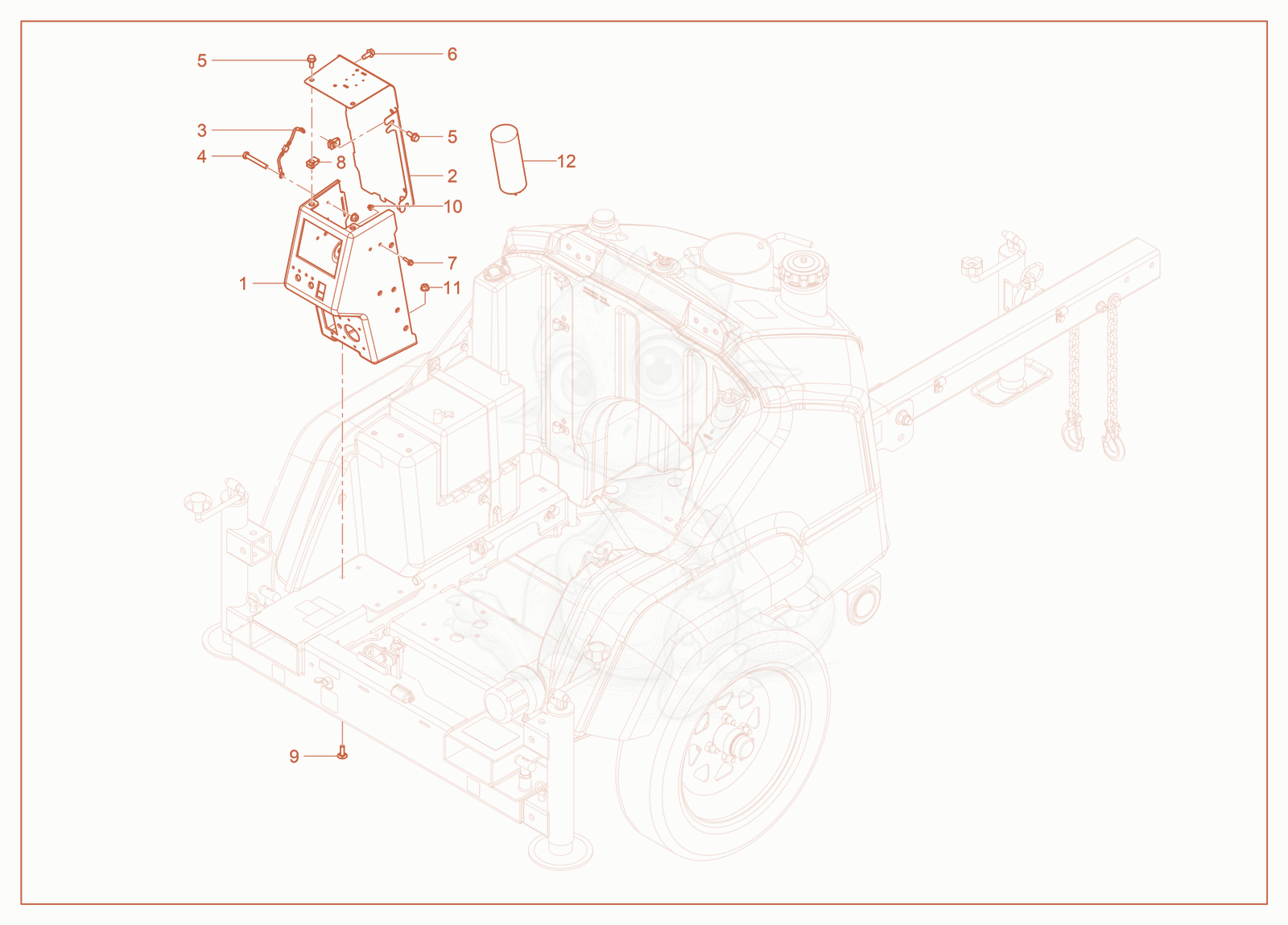

Exploded parts diagram of the Control Box of a Wacker Neuson LTT4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066490
    $38.82
    BOX CONTROL FRONT LTT - 5100066490×1
  • 25100073515
    $24.92
    PANEL CONTROL BOX REAR LTT - 5100073515×1
  • 35100069316
    $2.22
    WIRE GROUND - 5100069316×1
  • 45000011450
    $0.32
    SCREW M8 X 60,HX.HD. - 5000011450×1
  • 51000343396
    $0.18
    BOLT M8 X 20 FLANGED 8.8 ZINC - 1000343396×4
  • 65100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×1
  • 75100054264
    $0.22
    SCREW-M5x20-HEX.FLG.HD-8.8-ZNC - 5100054264×2
  • 85000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×4
  • 91000402940
    $0.28
    BOLT-M8x20-CARRIAGE.SHRT.NK-8.8-ZNK - 1000402940×3
  • 101000342931Not stocked
    Flange nut×2
  • 111000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×6
  • 125000163117
    $85.76
    CAPACITOR-25MF - 5000163117×1
