LTT4

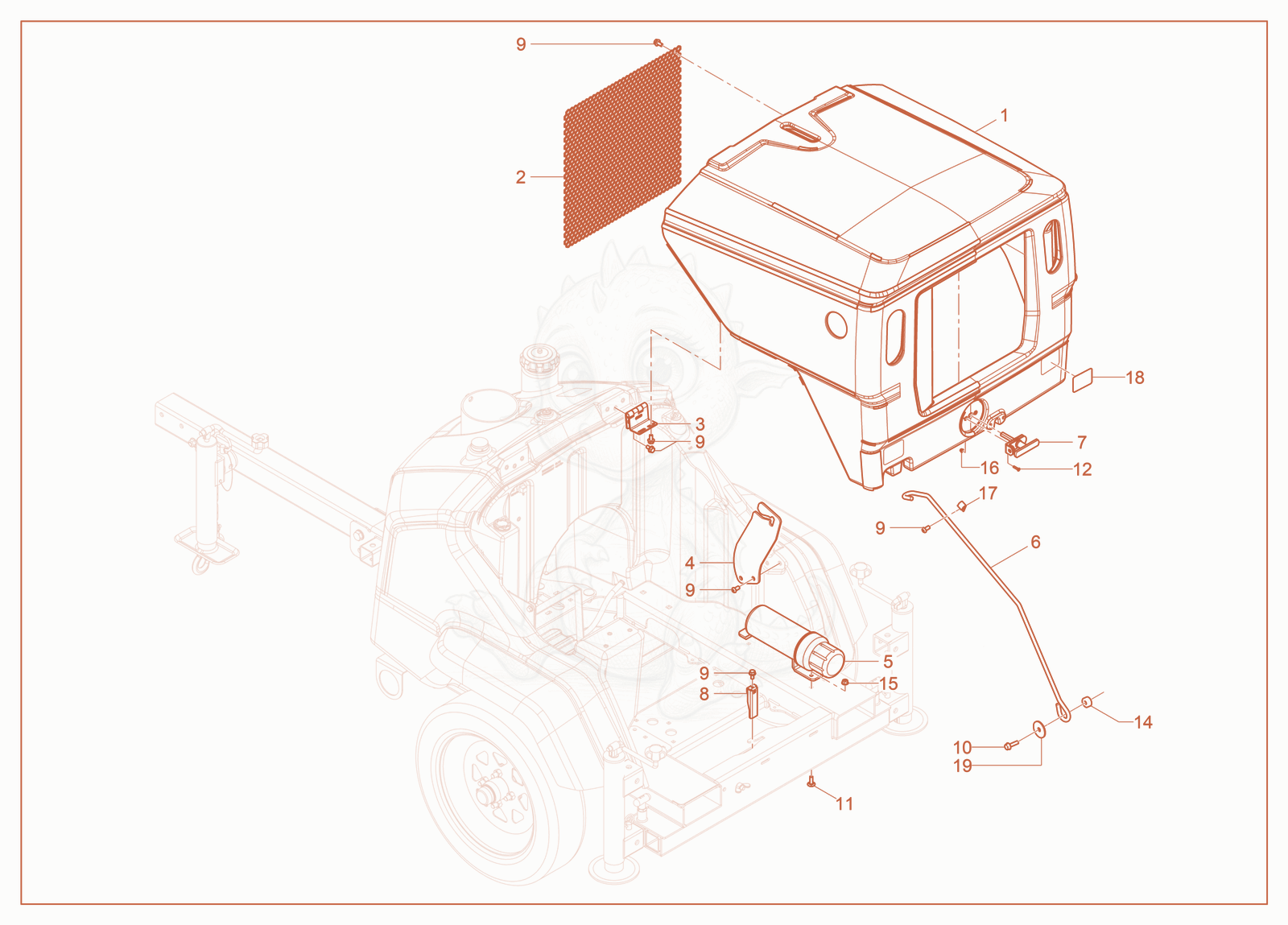

LTT4 Enclosure Panels Diagram

Exploded parts diagram of the Enclosure Panels of a Wacker Neuson LTT4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066296
    $453.39
    HOOD STD LTT - 5100066296Unknown×1
  • 15100077328Not stocked
    Hood×1
  • 25100068465
    $55.03
    PLATE EXHAUST GRID - 5100068465×1
  • 35100067955
    $33.08
    HINGE LTT - 5100067955×2
  • 45100075742
    $25.14
    PLATE PROP ROD LOCK - 5100075742×1
  • 55200008089
    $15.03
    Holder-Manual,3.25 w/Molded Feet - 5200008089×1
  • 65100076013
    $10.88
    ROD PROP - 5100076013×1
  • 75100071913
    $30.24
    HANDLE T PADLOCK - 5100071913×1
  • 85100075743
    $30.37
    HANDLE T CAM - 5100075743×1
  • 95000163945
    $0.26
    SCREW M8X16 BTN HD BL ZN 10.9 - 5000163945×25
  • 105000011454
    $0.22
    SCREW M8 X 40 HX.HD. - 5000011454×1
  • 111000402940
    $0.28
    BOLT-M8x20-CARRIAGE.SHRT.NK-8.8-ZNK - 1000402940×3
  • 125200001628
    $0.08
    SCREW M4X20,Soc FL HD,Zinc - 5200001628×2
  • 145100073419
    $1.51
    BUSHING PROP ROD - 5100073419×1
  • 151000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×3
  • 165000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 175100068438
    $0.99
    D-CLIP,10MM - 5100068438×1
  • 185000177126
    $1.11
    REFLECTOR-RED TAPE 2.75 X 1.75 - 5000177126×2
  • 195000162258
    $1.54
    WASHER-FLAT,.406X1.75X.125,ZP - 5000162258×1
