LTT4

LTT4 Wiring Harness/Power Winch Diagram

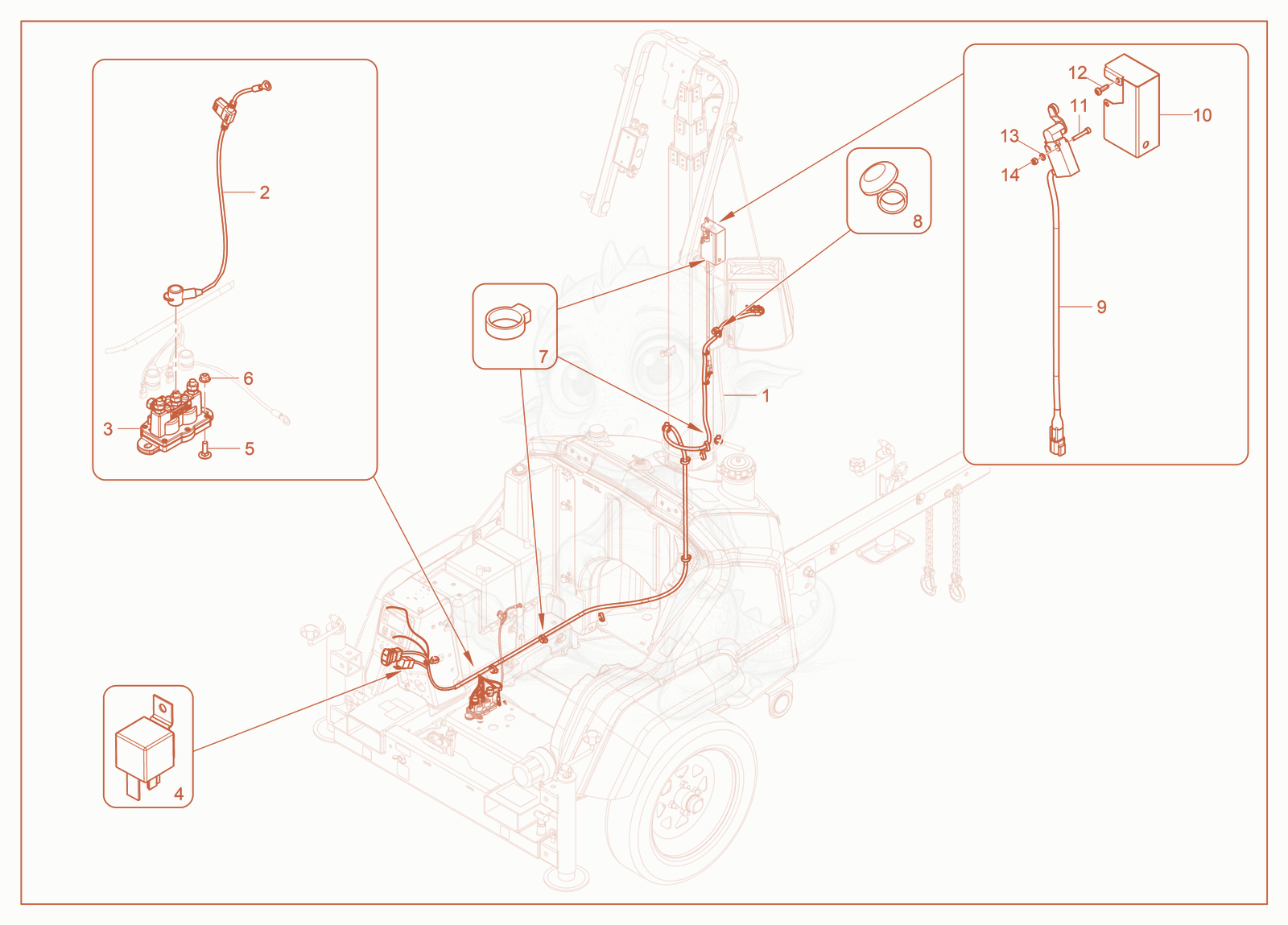

Exploded parts diagram of the Wiring Harness/Power Winch of a Wacker Neuson LTT4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100073569
    $167.72
    HARNESS POWER WINCH - 5100073569×1
  • 25100068251
    $34.98
    CABLE POWER WINCH KOHLER - 5100068251×1
  • 35100068239
    $60.95
    SOLENOID REVERSING - 5100068239×1
  • 45100038841
    $16.30
    RELAY-SONG CHUAN 897, SPNO,70A,12VDC - 5100038841×1
  • 55000118955
    $0.76
    Bolt-Carriage M6x20-4.6,Blk EP3 - 5000118955×2
  • 61000343345
    $0.14
    NUT M6 FLANGED LOCK 10 ZINC - 1000343345×2
  • 75000047388
    $0.18
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×5
  • 81000357167
    $1.80
    TIE BUTTON - 1000357167×1
  • 95100071163
    $72.12
    SWITCH LIMIT ROTARY SIDE - 5100071163×1
  • 105100072447
    $19.12
    SWITCH COVER LT - 5100072447×1
  • 115000085697
    $0.40
    DIN912-M4x25-8.8-ZNC - 5000085697×2
  • 125000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 135000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 141000363645Not stocked
    Screw×2
