LTV6K - Combo Hitch, Cold Weather

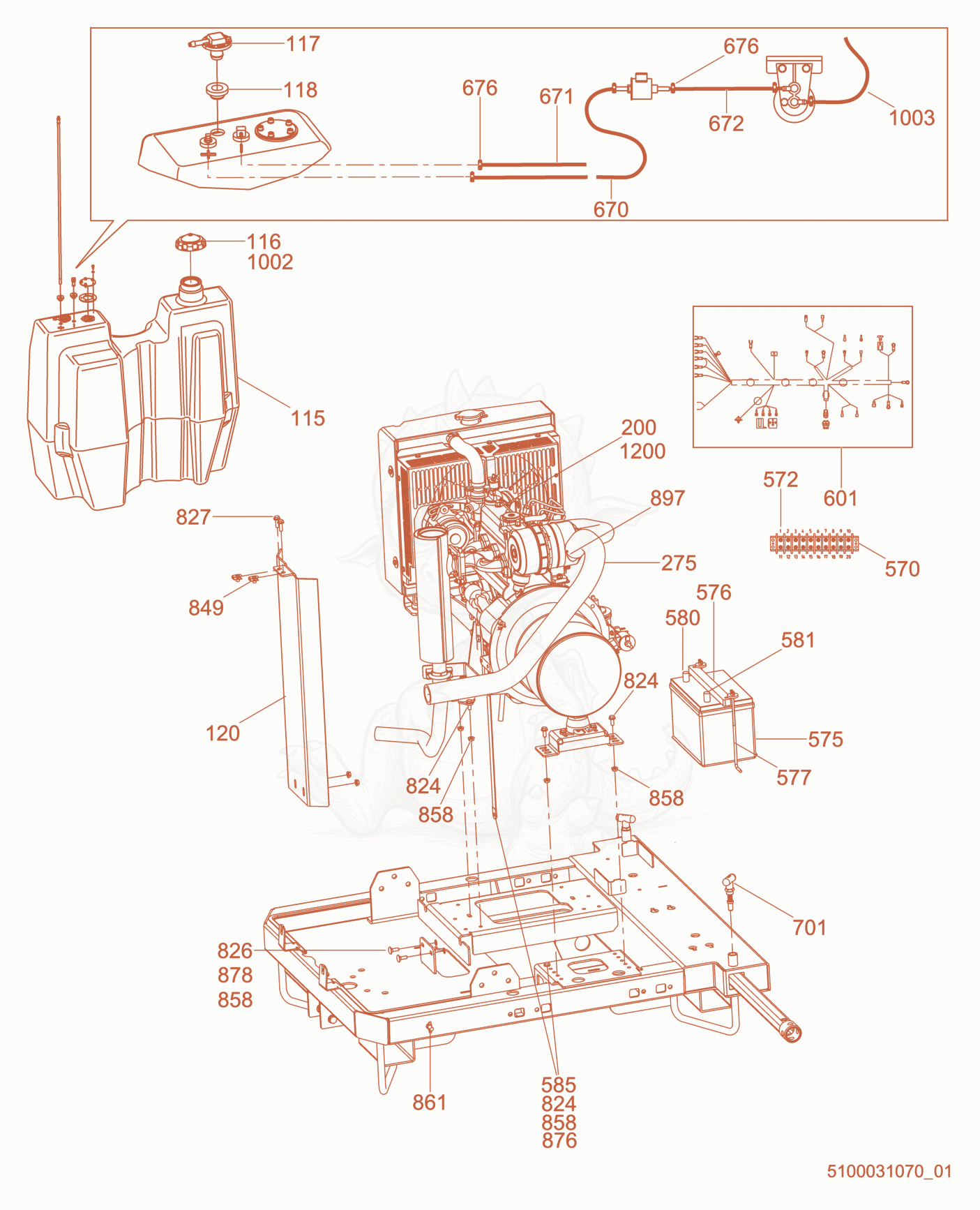

LTV6K Fuel Tank/Engine Diagram

Exploded parts diagram of the Fuel Tank/Engine of a Wacker Neuson LTV6K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1155100026473
    $514.82
    TANK-FUEL,PLASTIC, LTV - 5100026473×1
  • 1165200012367Not stocked
    Fuel cap×1
  • 1175000186627
    $12.58
    VENT-ROLLOVER,FUEL - 5000186627×1
  • 1185000186628
    $1.32
    GROMMET-ROLLOVER VENT,BUNA-N - 5000186628×1
  • 1205100029087
    $305.82
    PLATE HEAT SHIELD LTV - 5100029087×1
  • 2005100029152
    $18,404.41
    ENGINE KUBOTA D1005 LTW LTV - 5100029152×1
  • 2755100030473
    $13.29
    HOSE AIR INTAKE LTVK - 5100030473×1
  • 5705000176461
    $49.94
    TERMINAL-BLOCK,10 POLE - 5000176461×1
  • 5725000176464
    $1.35
    STRAP-JUMPER,CLOSED - 5000176464×8
  • 5755000153758
    $202.25
    BATTERY-WET,GR 34 - 5000153758×1
  • 5765000176345
    $31.94
    BRACKET BATTERY HOLD DOWN - 5000176345×1
  • 5775000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×2
  • 5805000176456
    $129.53
    CABLE BATTERY POSITIVE 40IN - 5000176456×1
  • 5815000176457
    $27.76
    CABLE BATTERY NEGATIVE 30IN - 5000176457×1
  • 5855000152979
    $16.84
    STRAP GROUND 15IN - 5000152979×1
  • 6015100027212
    $123.86
    WIRE HARNESS- LTV KUBOTA ENGINE - 5100027212×1
  • 6705100030655
    $73.16
    HOSE-FUEL,1/4 ID x 1400mm - 5100030655×1
  • 6715100030657
    $13.34
    HOSE-FUEL,3/16 ID x 1900mm - 5100030657×1
  • 6725100034430
    $67.16
    HOSE-FUEL,5/16 ID x 250mm - 5100034430×1
  • 6765000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×6
  • 7015100027628
    $20.46
    PIN-SPRING OUTRIGGER LTV - 5100027628×2
  • 8245000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×7
  • 8265000163950
    $0.56
    Bolt-Carriage M8x25-8.8,Blk EP3 - 5000163950×2
  • 8275000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
  • 8495200002421
    $0.99
    NUT-CLIP,M8 X 1/4 THK - 5200002421×2
  • 8585000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×9
  • 8615000010897
    $2.54
    NUT-WING,M10 - 5000010897×1
  • 8765000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×1
  • 8785200003962
    $0.23
    WASHER-M8,RETAINING - 5200003962×2
  • 8975000112287
    $1.99
    CLAMP-THREADED,1.56-2.50 - 5000112287×1
  • 10025100036418
    $31.77
    CAP-FUEL - 5100036418×1
  • 10035100034431
    $68.10
    HOSE-FUEL,5/16 ID x 375mm - 5100034431×1
  • 12005100029362
    $143.16
    ENGINE LOOSE PARTS KIT LTVK - 5100029362×1
