MP15 VIBROPLATE

MP15 Fuel Tank cpl. Diagram

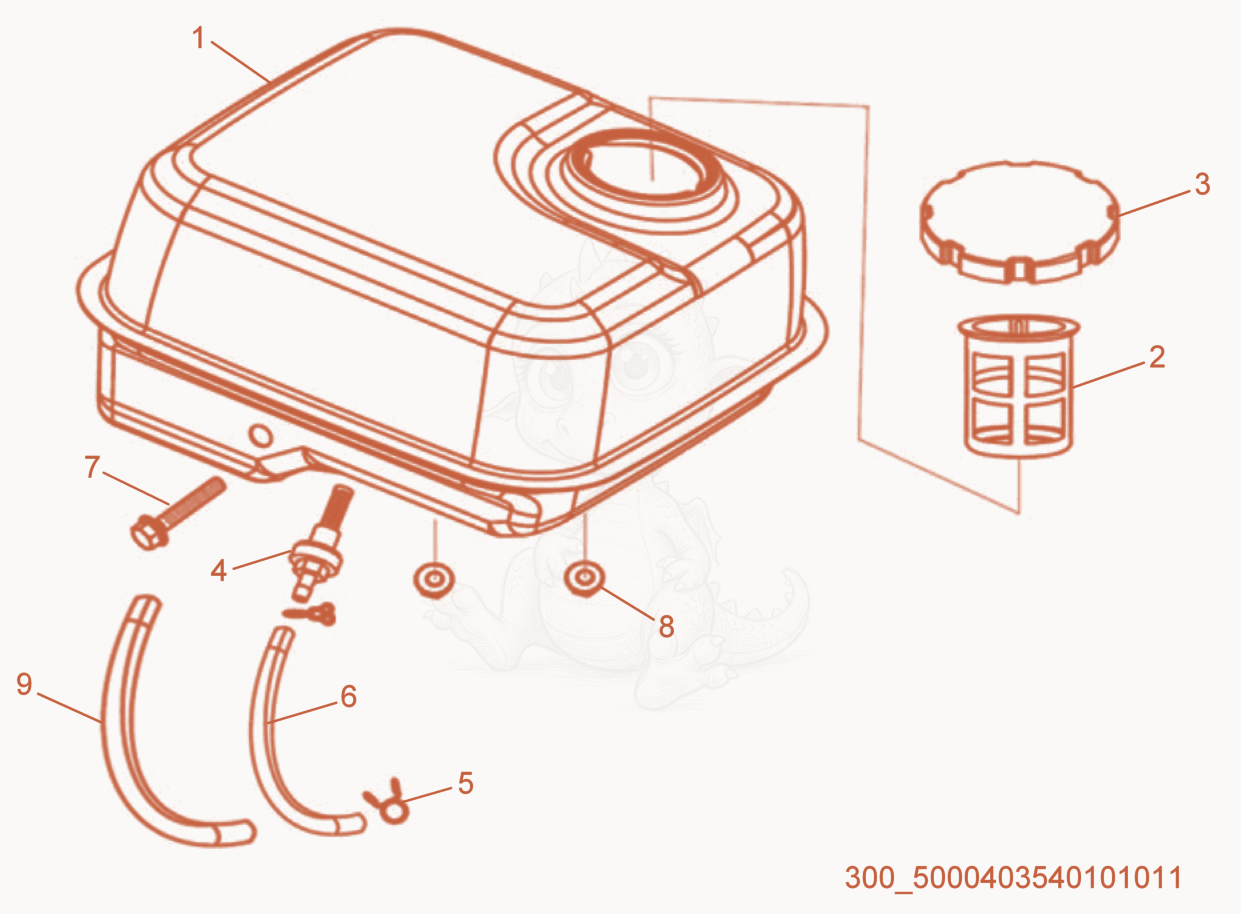

Exploded parts diagram of the Fuel Tank cpl. of a Wacker Neuson MP15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000406484
    $64.38
    Tank, fuel - 5000406484×1
  • 25000406485Not stocked
    Fuel Strainer×1
  • 35000403696
    $17.31
    Fuel Tank Cap - 5000403696×1
  • 45000405130
    $6.93
    Outlet Assembly,Fuel Tank Oil - 5000405130×1
  • 55000404036
    $0.81
    Collar - 5000404036×2
  • 65000403699Not stocked
    Fuel Hose×1
  • 75000403700Not stocked
    Flange bolt×1
  • 85000404046Not stocked
    Nut×2
  • 95000403702Not stocked
    Sleeve×1
