MP15 VIBROPLATE

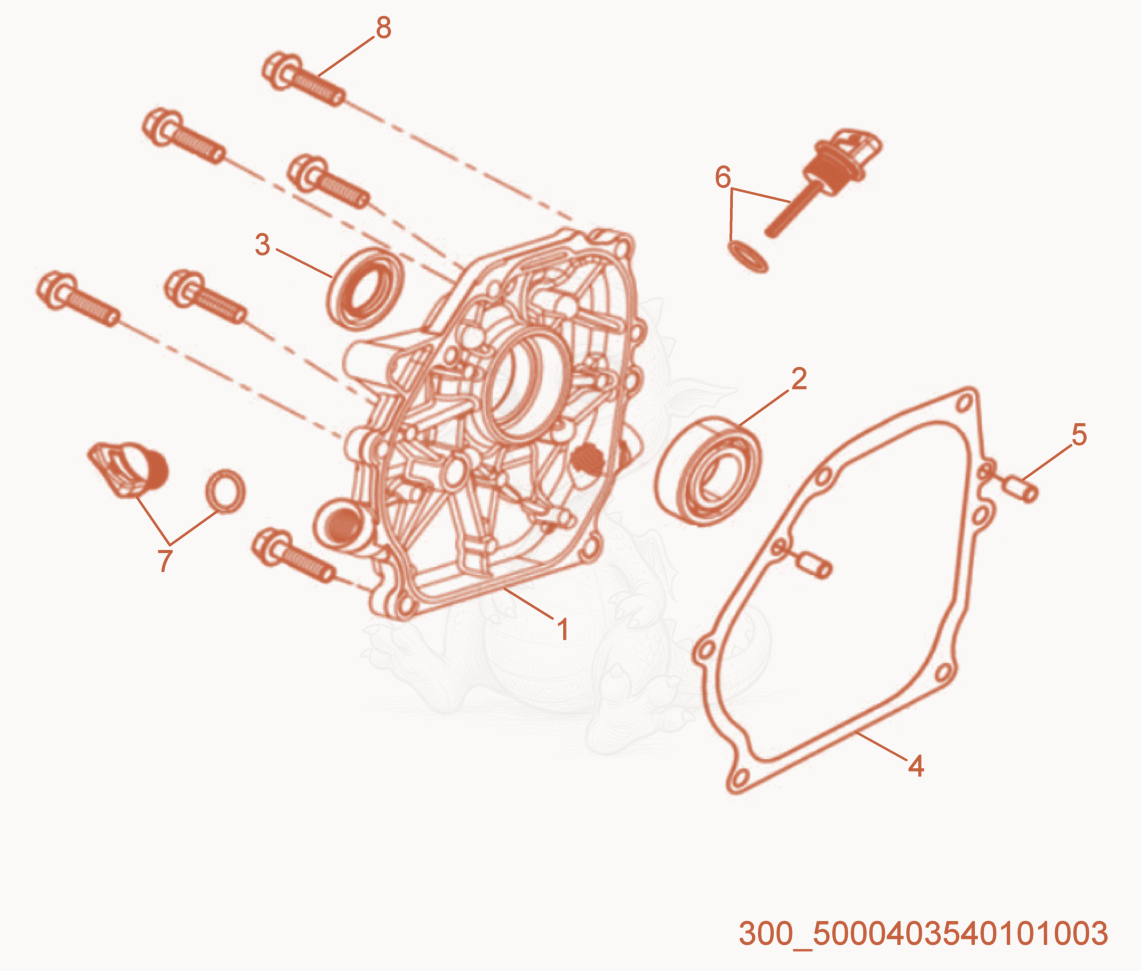

MP15 Crankcase Cover Diagram

Exploded parts diagram of the Crankcase Cover of a Wacker Neuson MP15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000403641Not stocked
    Crankcase Cover×1
  • 25000406474
    $18.62
    BEARING - 5000406474×1
  • 35000403967
    $12.35
    Seal-Oil - 5000403967×1
  • 45000403644
    $8.91
    GASKET - 5000403644×1
  • 55000403645
    $0.77
    Dowel Pin - 5000403645×2
  • 65000406481
    $3.72
    DIPSTICK SUBASSEMBLY, OIL - 5000406481×1
  • 75000406477Not stocked
    Oil plug×1
  • 85000403977Not stocked
    Hexagonal flange head screw×6
