MS54 RAMMER,11 PL SH,22MM,JPN,42

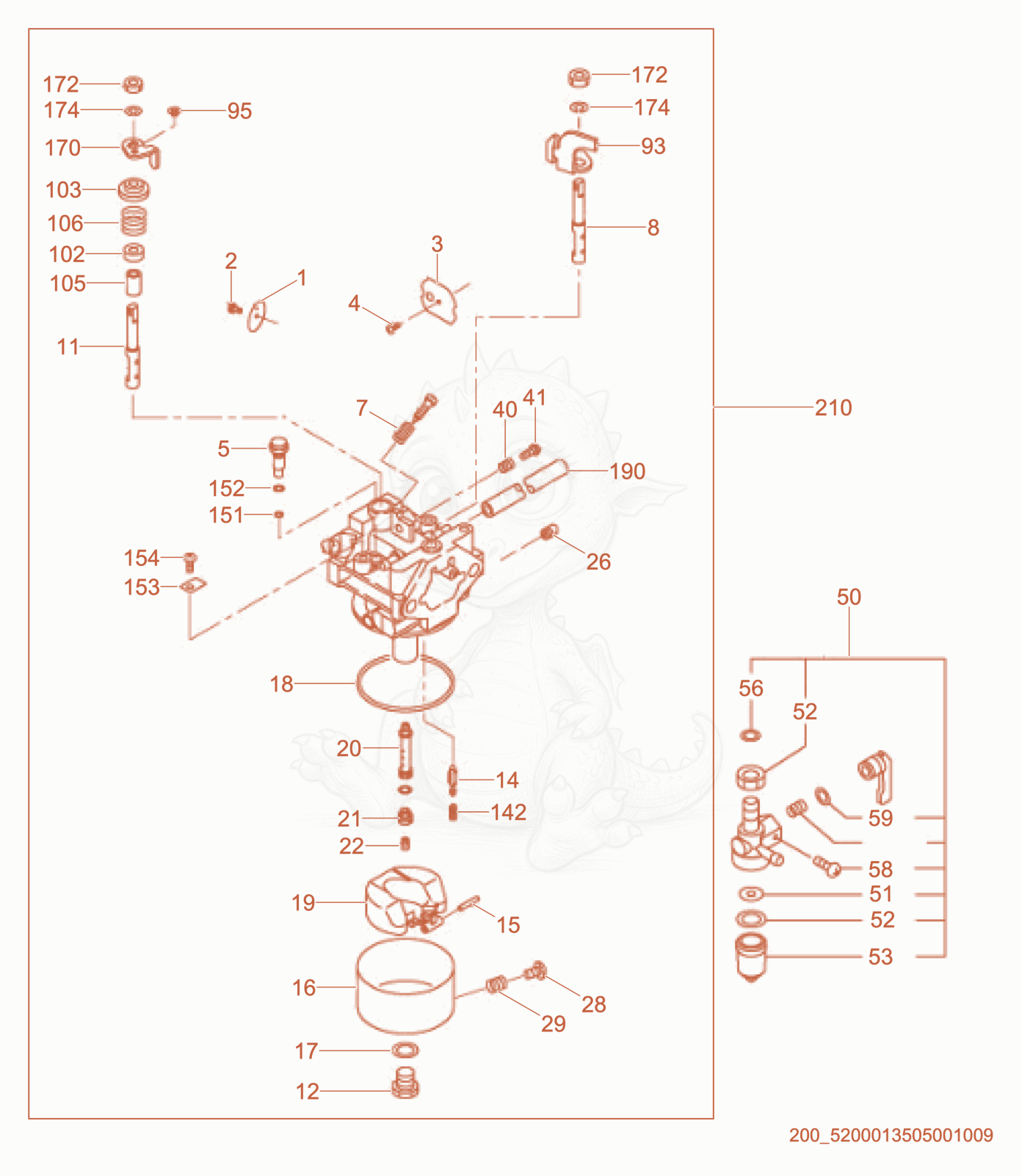

MS54 Carburetor cpl. Diagram
- VALVE-THROTTLE - 5000156406×1
- Screw - 5000216780×2
- 35200016201Not stockedChoke valve×1
- 45200016202Not stockedScrew×2
- 55200013324Not stockedPilot Jet Set×1
- spring - 5000119386×2
- 85200016306Not stockedChoke shaft×1
- 115200016203Not stockedChoke shaft cpl.×1
- SCREW - 5000216775×1
- VALVE-NEEDLE - 5000205500×1
- Pin - 5000216783×1
- 165200016204Not stockedHousing×1
- GASKET - 5000156629×1
- Gasket - 5000216788×1
- Float cpl. - 5000216782×1
- 205200016205Not stockedNozzle body (holder)×1
- 215200016206Not stockedGuide×1
- 225200016207Not stockedMain jet×1
- 265200016208Not stockedRubber hose×1
- Screw - 5000115772×1
- Spring - 5000053699×1
- SCREW-ADJUSTMENT - 5000216744×1
- spring - 5000156623×1
- 505200016197Not stockedFuel filter×1
- 515200016198Not stockedFuel filter screen×1
- O-Ring - 5000213423×1
- Cup - 5000213422×1
- 545200016199Not stockedLock nut×1
- spring - 5000205671×1
- O-ring - 5000205669×1
- BOLT-LOCK - 5000205668×1
- O-ring - 5000205669×1
- 935200016209Not stockedChoke lever×1
- 955200016210Not stockedBushing×1
- Bushing - 5000216741×1
- 1035200016211Not stockedCollar×1
- 1055200016212Not stockedCollar×1
- 1065200016213Not stockedSpring×1
- Spring - 5000084403×1
- O-Ring - 5000213427×1
- O-Ring - 5000216779×1
- 1535200016214Not stockedBracket×2
- Screw - 5000216781×1
- 1705200016215Not stockedThrottle shaft cpl.×1
- 1725200016216Not stockedNut×2
- 1745200016217Not stockedSpring washer×2
- 1905200016218Not stockedHose×1
- 2105200016200Not stockedCarburetor cpl.×1
