MS54 RAMMER,11 PL SH,22MM,JPN,42

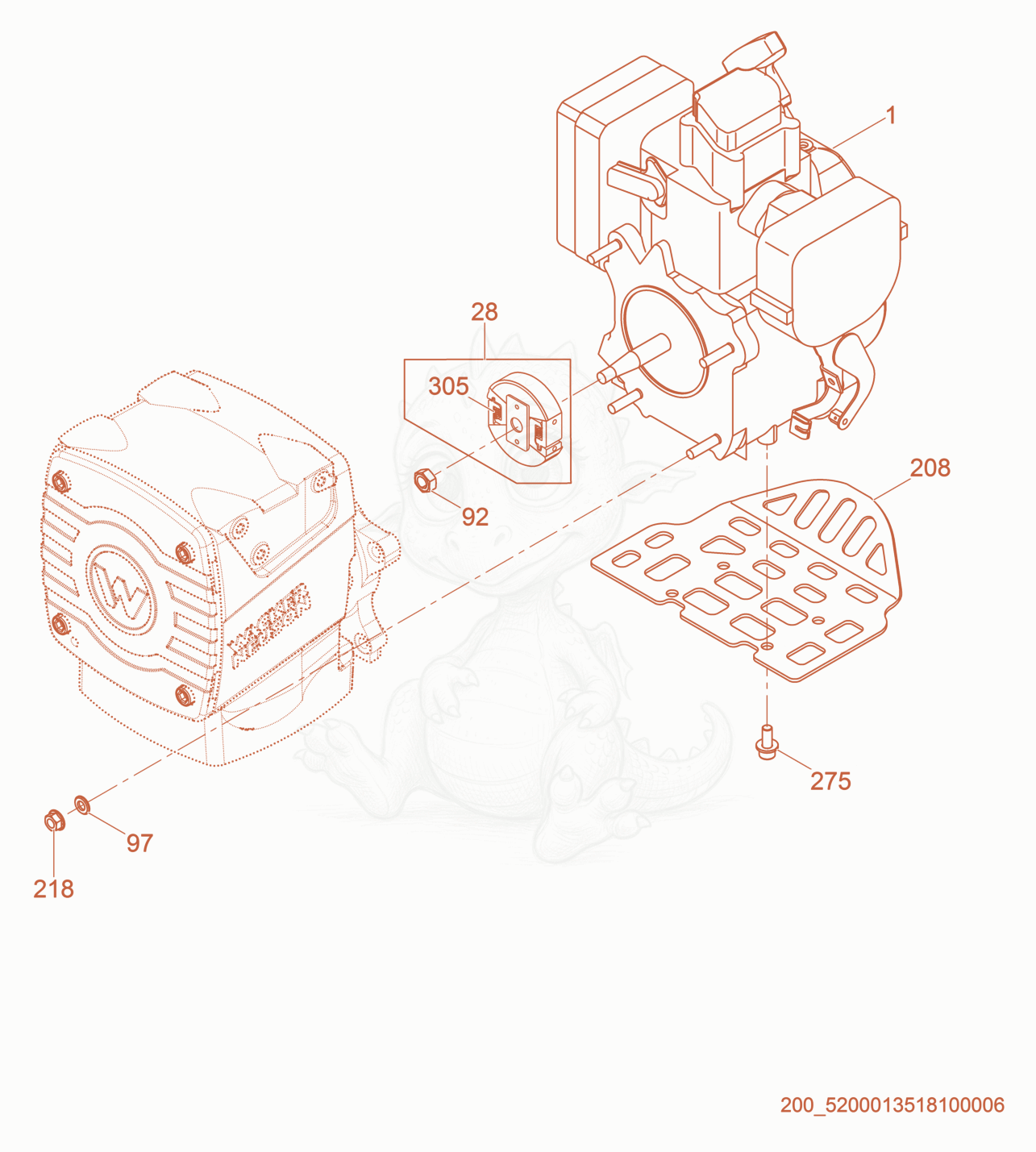

MS54 Engine Guarding Diagram

Exploded parts diagram of the Engine Guarding of a Wacker Neuson MS54, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200013505Not stocked
    Engine-Robin×1
  • 285000157205
    $131.63
    CLUTCH-CENTRIFUGAL,80mm X-5100032207 - 5000157205×1
  • 925000010883
    $0.29
    NUT M10 8,HEX - 5000010883×1
  • 975000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 2085200015789Not stocked
    Engine guard×1
  • 2185000115570
    $0.12
    Nut M8 Flange, Non serrated - 5000115570×4
  • 2755000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×4
  • 2755000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 4365000172983
    $19.71
    Spring - 5000172983×2
