MS64A Vibratory Rammer, 11"

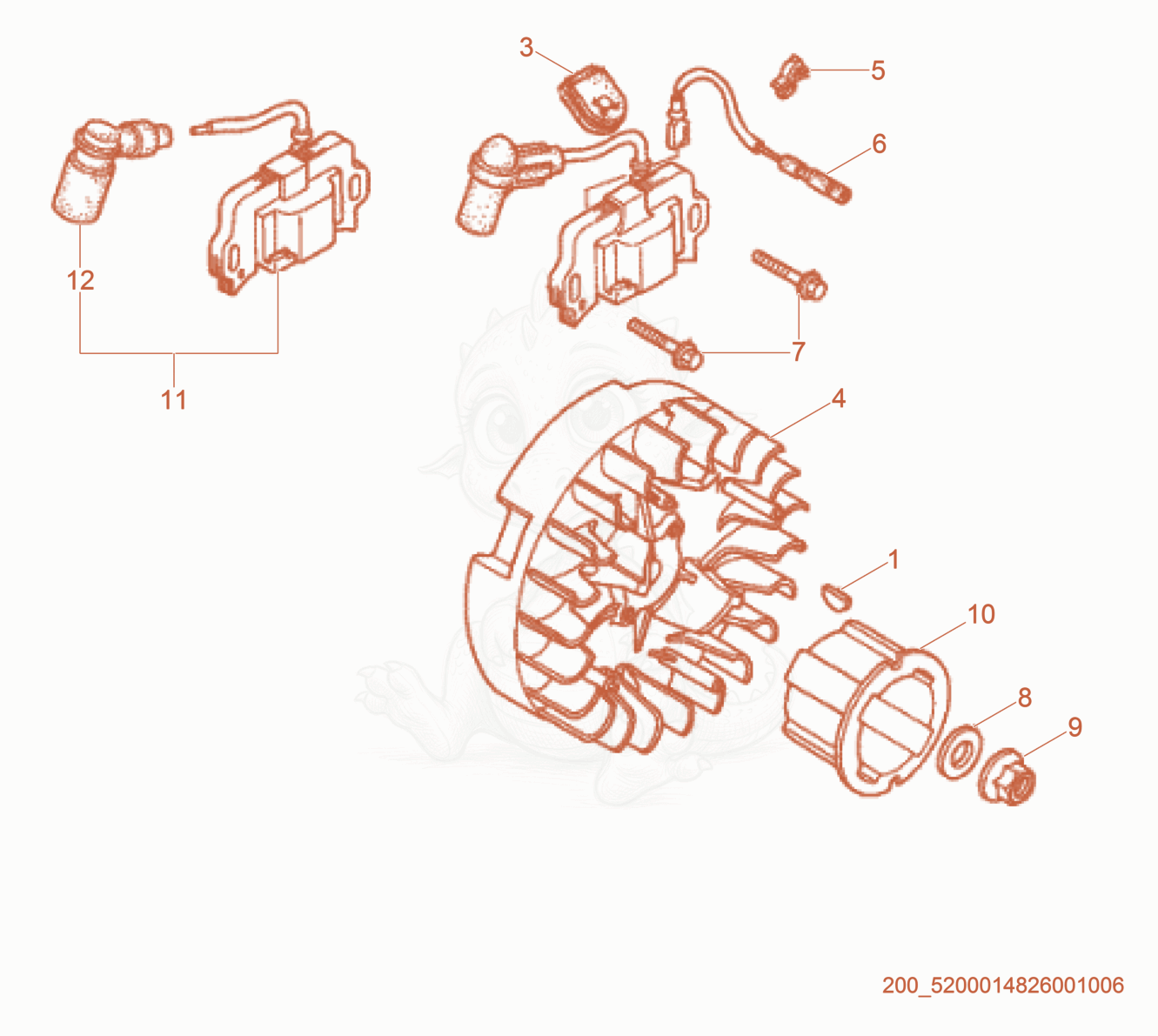

MS64A Flywheel Diagram

Exploded parts diagram of the Flywheel of a Wacker Neuson MS64A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000162118
    $5.15
    KEY-WOODRUFF - 5000162118×1
  • 35000162120
    $7.66
    Grommet - 5000162120×1
  • 45000162121
    $1,429.45
    Flywheel - 5000162121×1
  • 55000157743
    $2.93
    Clip - 5000157743×1
  • 65000162122
    $5.34
    Wire - 5000162122×1
  • 75000071005
    $30.39
    Piston - 5000071005×2
  • 95000156707
    $1.55
    NUT-FLANGE 12MM - 5000156707×1
  • 105000162123
    $14.64
    PULLEY-STARTER - 5000162123×1
  • 115200015316Not stocked
    Ignition coil×1
  • 125200015317Not stocked
    Spark plug (terminal) cap×1
