MS64A Vibratory Rammer, 11"

MS64A Carburetor cpl. Diagram

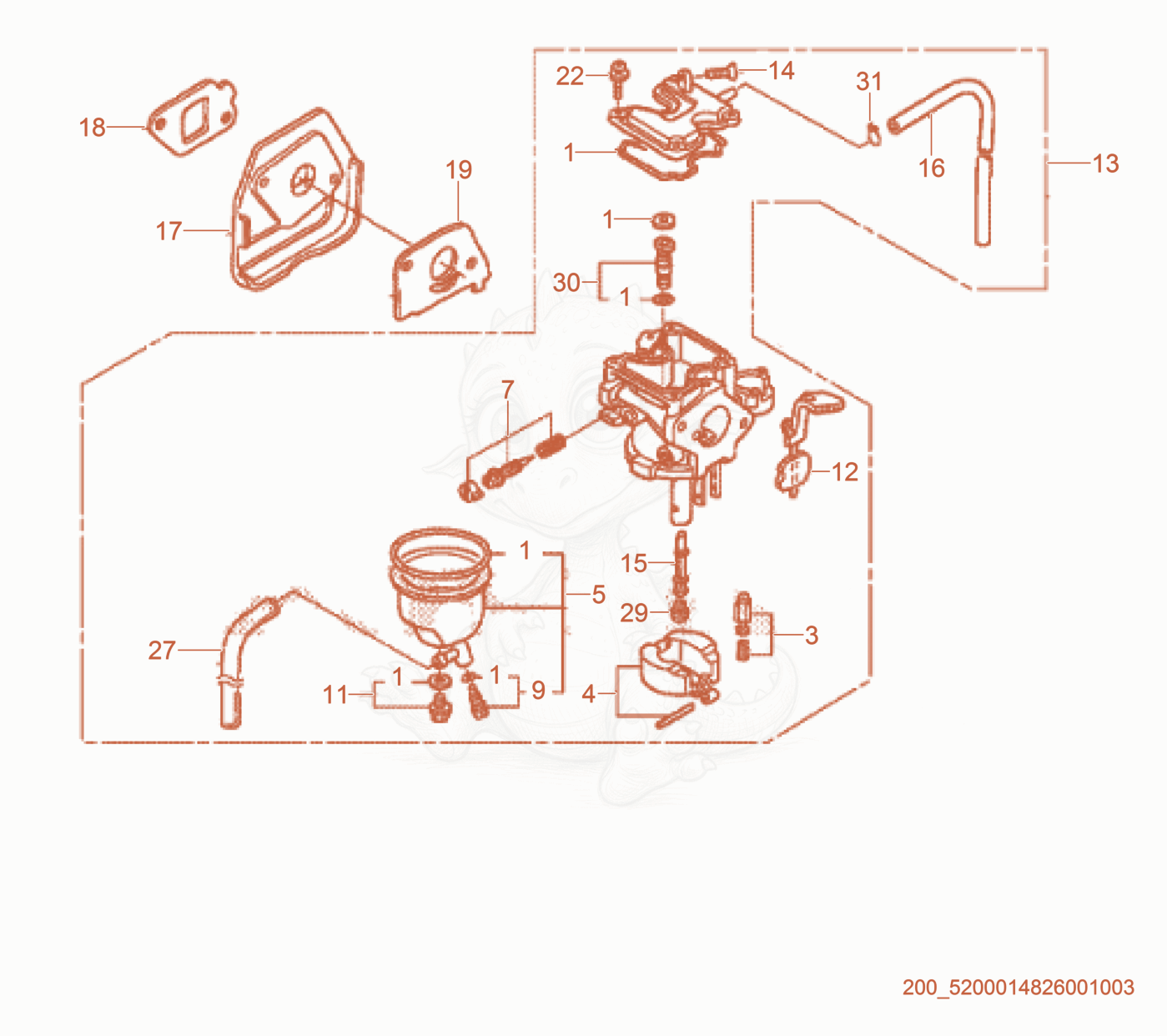

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson MS64A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200020935Not stocked
    Gasket Set×1
  • 35000071022
    $35.10
    SET-CARBURETOR FLOAT VALVE - 5000071022×1
  • 45000156666
    $9.22
    FLOAT SET - 5000156666×1
  • 55200020936Not stocked
    Float×1
  • 75200020937Not stocked
    Screw Set×1
  • 95000162082
    $11.90
    SCREW-SET - 5000162082×1
  • 125200020938Not stocked
    Choke Shaft Set×1
  • 135200020939Not stocked
    Carburetor cpl.×1
  • 145000071018
    $22.04
    SCREW-THROTTLE STOP - 5000071018×1
  • 155000162085
    $26.64
    JET-MAIN - 5000162085×1
  • 165200020950Not stocked
    Drain tube×1
  • 175200020951Not stocked
    Insulator×1
  • 185200020952Not stocked
    Gasket×1
  • 195000078545
    $3.18
    GASKET-CARBURETOR MOUNT - 5000078545×1
  • 225200020953Not stocked
    Screw w/washer×4
  • 275000162089
    $1.09
    TUBE-3.5 X 6.5 X 100 - 5000162089×1
  • 295000156675
    $12.75
    JET-MAIN #55 - 5000156675×1
  • 295000162090
    $10.45
    JET-MAIN #58 - 5000162090×1
  • 295000162091
    $10.09
    JET-MAIN #60 - 5000162091×1
  • 305000071016
    $27.73
    JET-SIZE #35,SET PILOT - 5000071016×1
  • 315200020954Not stocked
    Tube clip×1
