P35-POWER UNIT

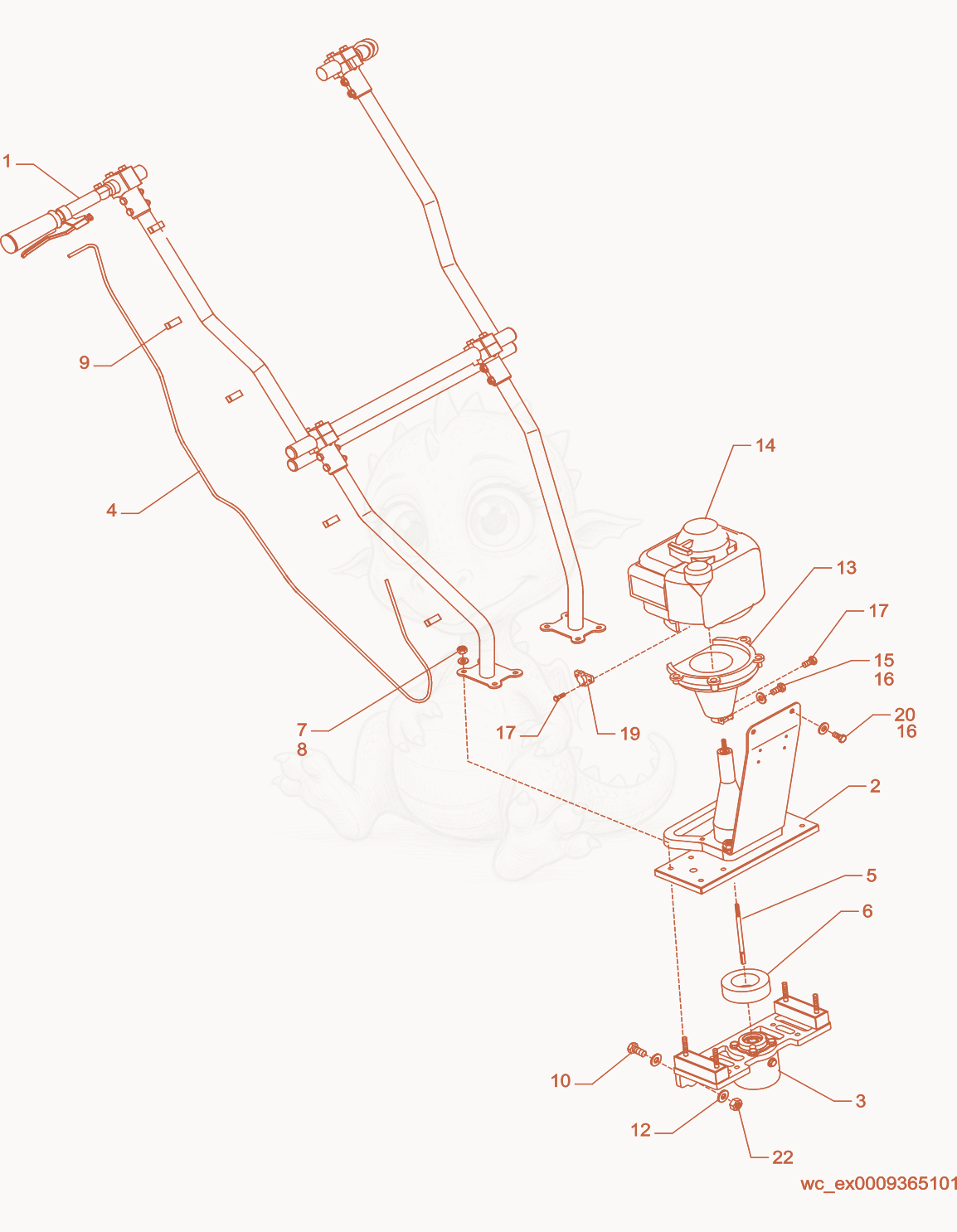

P35 Wet Screed cpl. Diagram

Exploded parts diagram of the Wet Screed cpl. of a Wacker Neuson P35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200002125
    $1,367.22
    Handle Assy-Complete - 5200002125×1
  • 25000163052
    $439.30
    DRIVE ASSEMBLY - 5000163052×1
  • 35000157734
    $1,610.55
    X-5200002126 ADAPTER-BLADE ASSEMBLY - 5000157734×1
  • 45000188493
    $14.77
    CABLE-THROTTLE - 5000188493×1
  • 55000184038
    $55.46
    SHAFT-DRIVE,LOWER - 5000184038×1
  • 65000184039
    $5.81
    RING-SEAL - 5000184039×1
  • 75000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×8
  • 85000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×8
  • 95000188368
    $0.81
    CLAMP-CABLE - 5000188368×4
  • 105000011421
    $0.40
    SCREW M12 X 40 HX.HD. - 5000011421×4
  • 125000010666
    $0.61
    WASHER 12 FLAT - 5000010666×8
  • 145000160907
    $673.82
    ENGINE-WM35, 1.6HP, SCREED-WET - 5000160907×1
  • 155000011469
    $0.09
    SCREW M6 X 25 HX.HD. - 5000011469×1
  • 165000010706
    $0.13
    WASHER-LOCK 6 - 5000010706×3
  • 175000011478
    $0.07
    SCREW M5 X 10 HX.HD. - 5000011478×2
  • 195000157761
    $47.91
    X-5000187142 SWITCH-ENGINE, ON/OFF - 5000157761×1
  • 205000157752
    $0.58
    SCREW M6 1.0 X 10,HEX - 5000157752×2
  • 225000116124
    $0.51
    NUT-LOCK M12,HX.SER.FLG.ZP - 5000116124×4
