P35-POWER UNIT

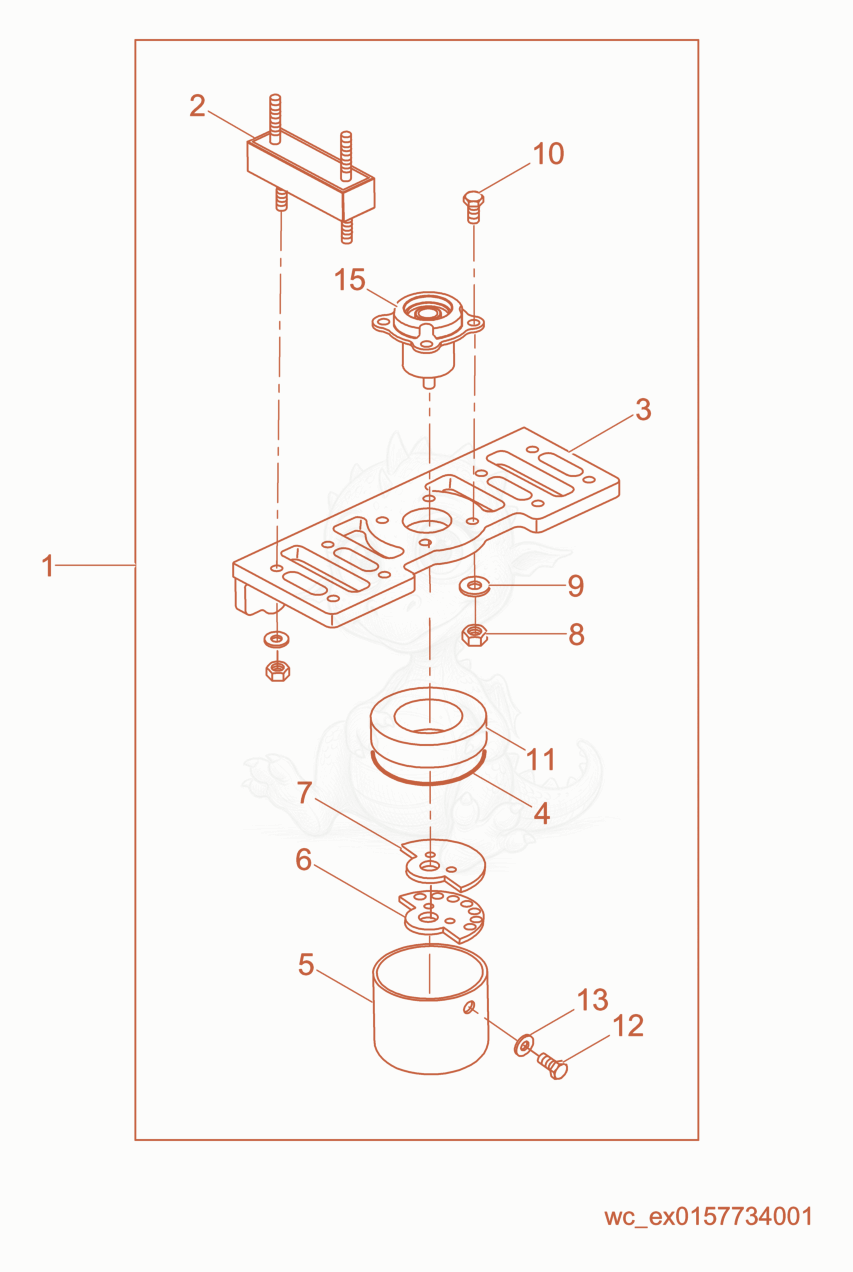

P35 Blade Adapter cpl. Diagram

Exploded parts diagram of the Blade Adapter cpl. of a Wacker Neuson P35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000157734
    $1,610.55
    X-5200002126 ADAPTER-BLADE ASSEMBLY - 5000157734×1
  • 25000157735Not stocked
    Shockmount×2
  • 35000157738Not stocked
    Bracket×1
  • 45000157772
    $1.38
    X-5000184537 O-RING, 72.62X3.53-70SH - 5000157772×1
  • 55000157741Not stocked
    Cover×1
  • 65000157740Not stocked
    Adjustable eccentric weight×1
  • 75000157739Not stocked
    Fixed eccentric weight×1
  • 85000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×8
  • 95000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×8
  • 105000011341
    $0.36
    SCREW M8 X 40 HX.HD. - 5000011341×4
  • 115000157773Not stocked
    Cover×1
  • 125000012356
    $0.33
    SCREW M6 X 10 HX.HD. - 5000012356×3
  • 135000010706
    $0.13
    WASHER-LOCK 6 - 5000010706×3
  • 155000157737Not stocked
    Bearing cartridge×1
