PT3H Pump

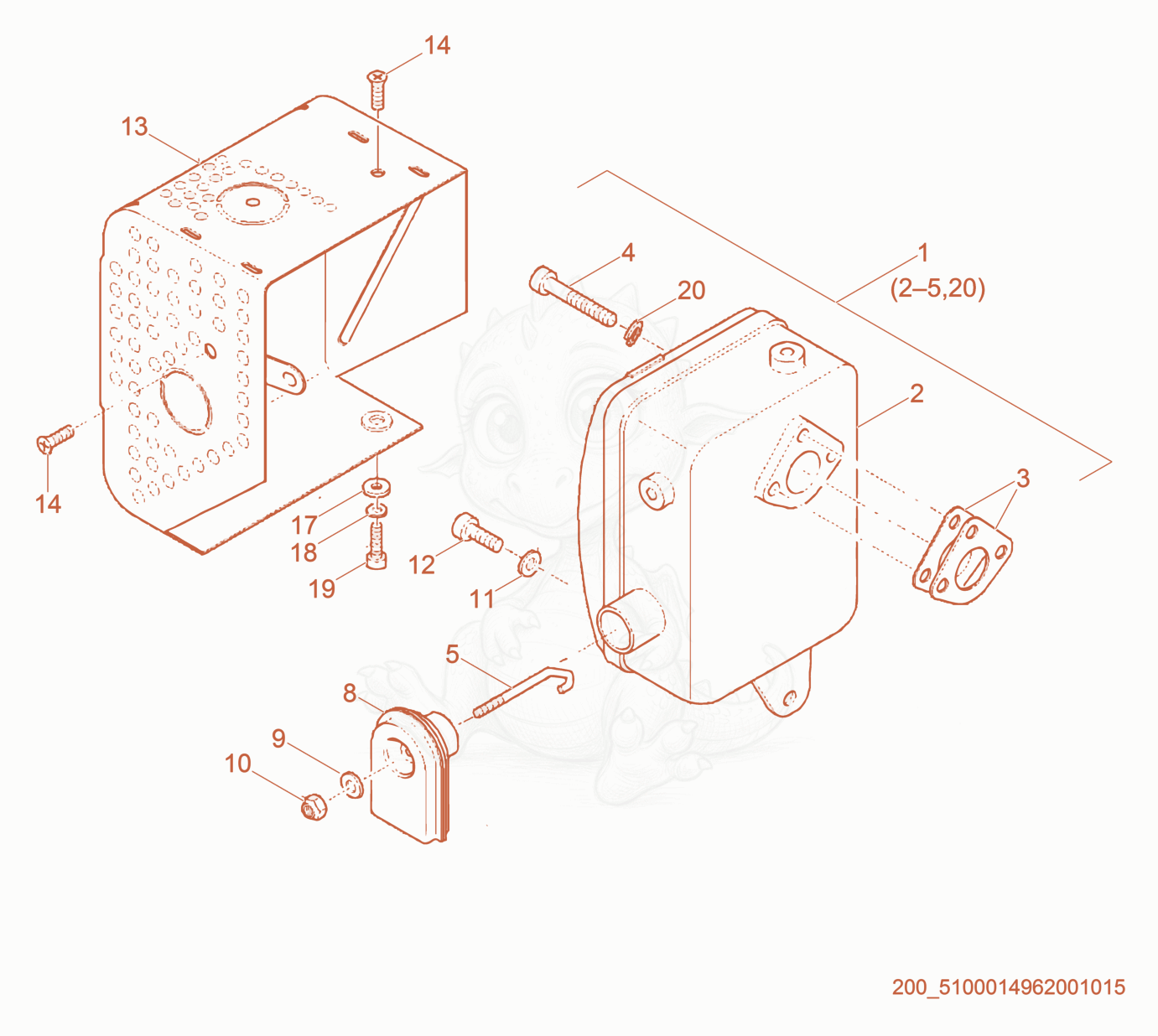

PT3H Muffler Diagram

Exploded parts diagram of the Muffler of a Wacker Neuson PT3H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000151573
    $1,067.40
    MUFFLER ASSEMBLY - 5000151573×1
  • 35000217597
    $10.36
    Gasket - 5000217597×1
  • 45000202457
    $8.06
    SCREW-ALLEN,M8 X 25 - 5000202457×3
  • 55000206629
    $24.90
    BOLT-J,M6 - 5000206629×1
  • 85000109720
    $87.91
    PIPE-END EXHAUST - 5000109720×1
  • 95000151324
    $8.06
    WASHER-FLAT 6.4 - 5000151324×1
  • 105000108793
    $8.06
    NUT-HEX M6 - 5000108793×1
  • 115000107401
    $8.06
    WASHER 6.4 - 5000107401×1
  • 125000129009
    $8.06
    SCREW-ALLEN HD,M6X16A3C-8.8 - 5000129009×1
  • 135200007481Not stocked
    Muffler guard×1
  • 145000151387
    $8.06
    SCREW-M6X12 8.8 A3C - 5000151387×2
  • 175000107401
    $8.06
    WASHER 6.4 - 5000107401×1
  • 185000151456
    $8.06
    WASHER-SPRING 6 A3C - 5000151456×1
  • 195000202338
    $8.06
    SCREW M6 X 16 DIN933,HEX - 5000202338×1
  • 205000151218
    $8.06
    WASHER-SPRING - 5000151218×3
