PT3H Pump

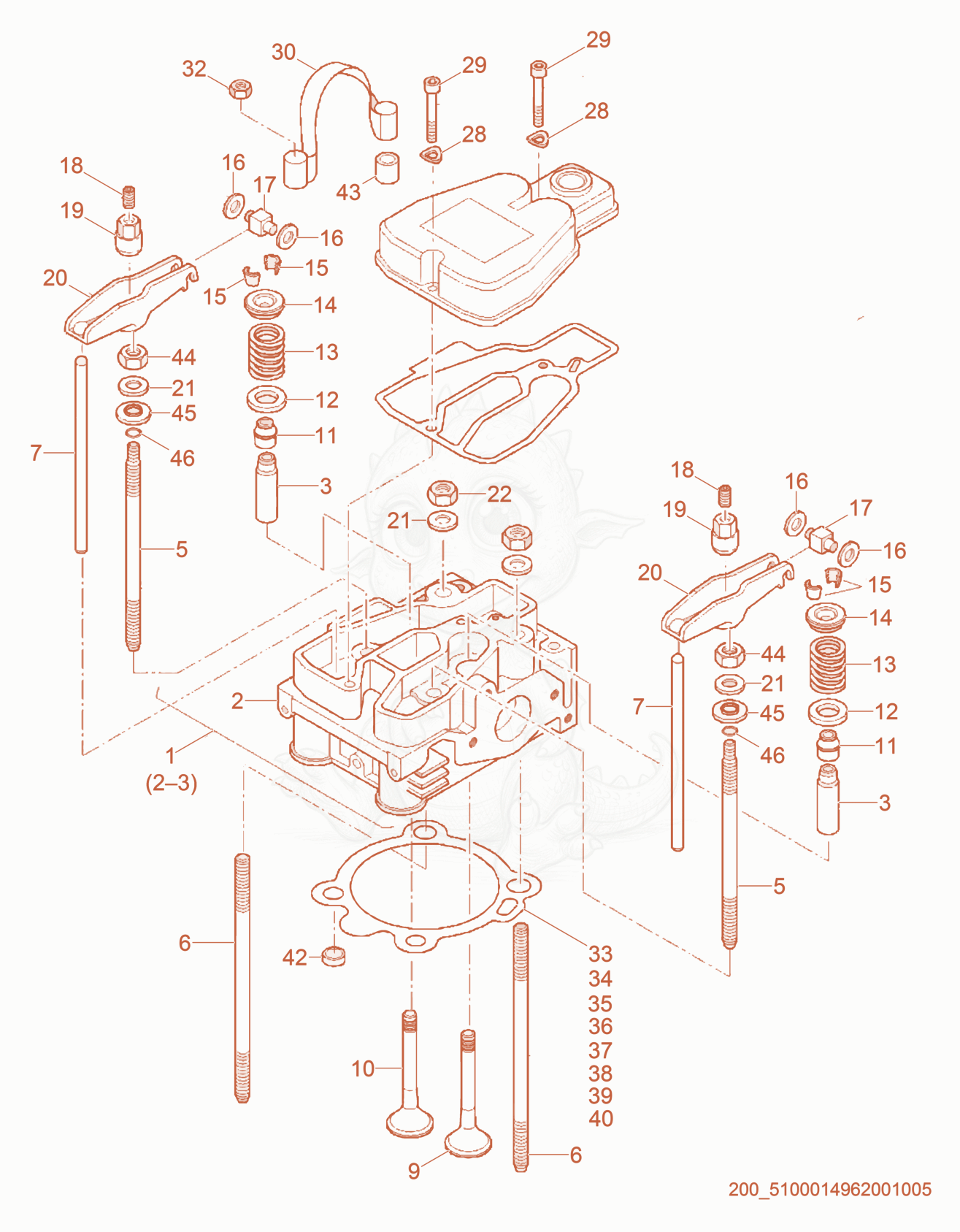

PT3H Cylinder Head Diagram
- PISTON 1B30 EPA2 - 5000209667×1
- GUIDE-VALVE - 5000151270×2
- STUD-HEAD,CYLINDER 141MM - 5000151271×2
- STUD-HEAD,CYLINDER 128MM - 5000151272×2
- ROD-PUSH - 5000151273×2
- VALVE-INLET - 5000151275×1
- VALVE-EXHAUST - 5000151276×1
- CAP-VALVE,STEM SEAL - 5000108738×2
- Washer - 5000108737×2
- SPRING-VALVE - 5000151279×2
- PLATE-SPRING - 5000108735×2
- HOLDER-PLATE,SPRING - 5000108734×2
- WASHER 6 X 12 X 1.35 - 5000202301×1
- DISC-SUPPORT, 6X12X1.2 - 5000108730×1
- SLIDER - 5000108731×2
- SCREW-SET,M8X10 - 5000129001×2
- NUT-ROCKER ARM - 5000108732×2
- Rocker arm - 5000151286×2
- WASHER 8.4X18X3 - 5000151287×4
- NUT M10 DIN934,HEX - 5000202334×2
- Gasket - 5000227677×1
- COVER-CYLINDER HEAD - 5000227676×1
- WASHER-SPRING, A6 - 5000151290×2
- SCREW-PAN HD,M6X35-8.8A3C - 5000129002×2
- STRAP-LIFTING - 5000151292×1
- NUT M10 HEX,JAM - 5000010806×2
- GASKET-HEAD,0.3MM - 5000151294×1
- GASKET-HEAD,0.4MM - 5000151295×1
- GASKET-HEAD,0.5MM - 5000151296×1
- GASKET-HEAD,0.6MM - 5000151297×1
- GASKET-HEAD,0.7MM - 5000151298×1
- GASKET-HEAD,0.8MM - 5000151299×1
- GASKET-HEAD,0.9MM - 5000151300×1
- GASKET-HEAD,1.0MM - 5000151301×1
- GASKET-CYLINDER HEAD 0.55 - 5000209697×1
- GASKET-CYLINDER HEAD 0.65 - 5000209698×1
- GASKET-CYLINDER HEAD 0.75 - 5000209699×1
- Seal ring - 5000209696×2
- BUSHING 10X12X9 - 5000151274×2
- NUT M10 DIN934,HEX - 5000202334×2
- DISC - 5000205486×2
- O-RING 1O X 2.5 - 5000205485×2
